Electrical System Tests (Section 23)

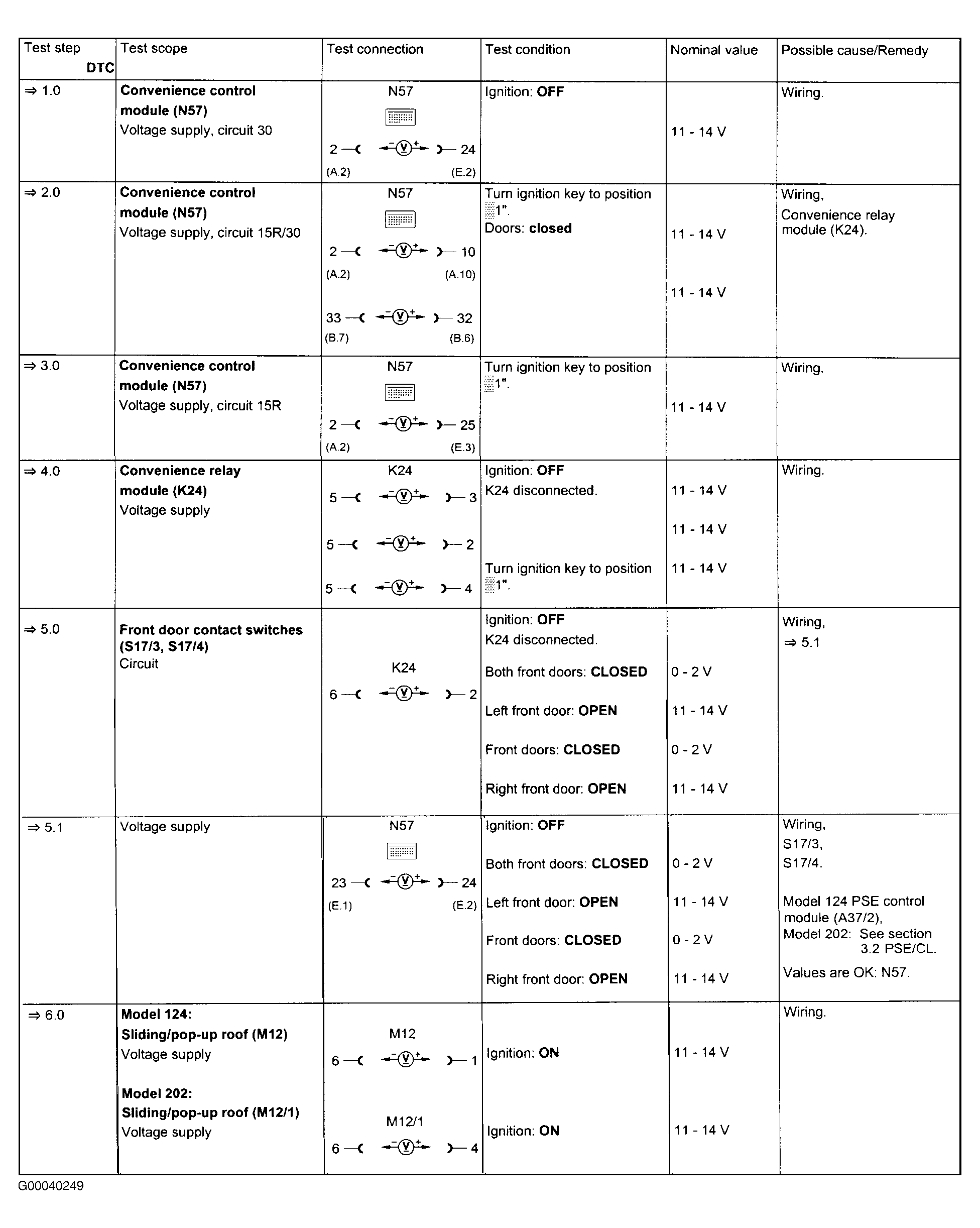

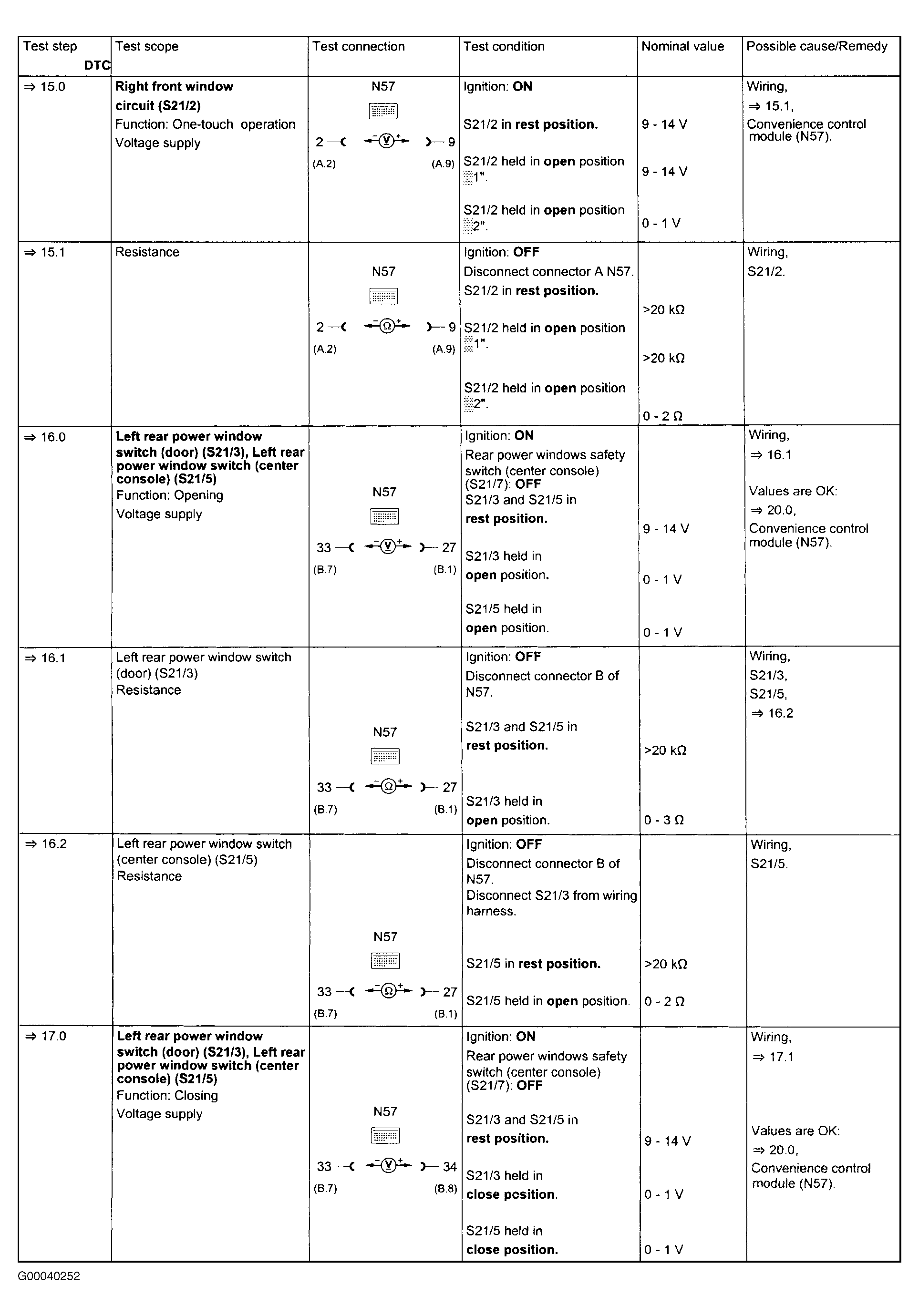

Fig 1: Electrical Tests - Steps 1-6 (1 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

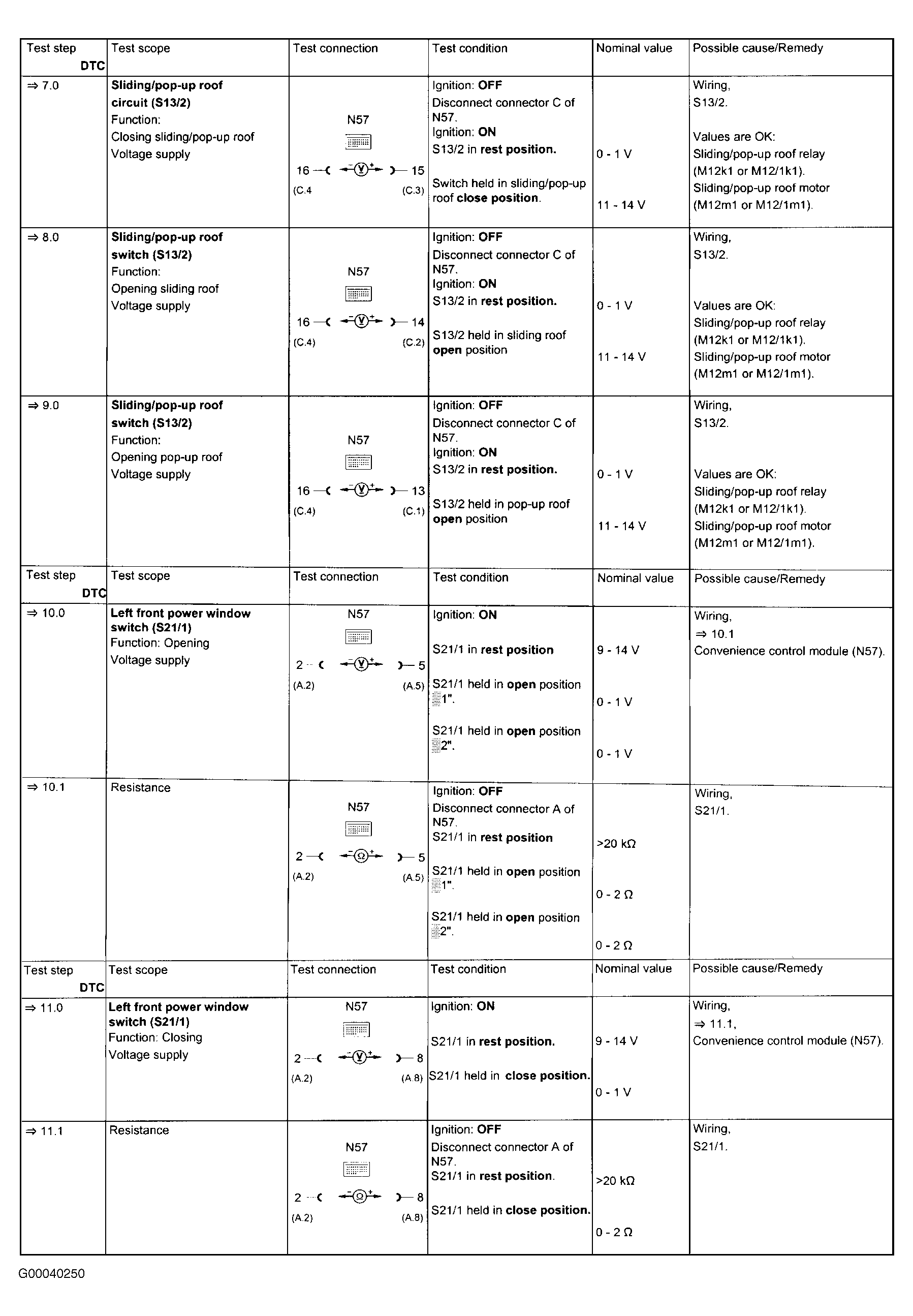

Fig 2: Electrical Tests - Steps 7-11.1 (2 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

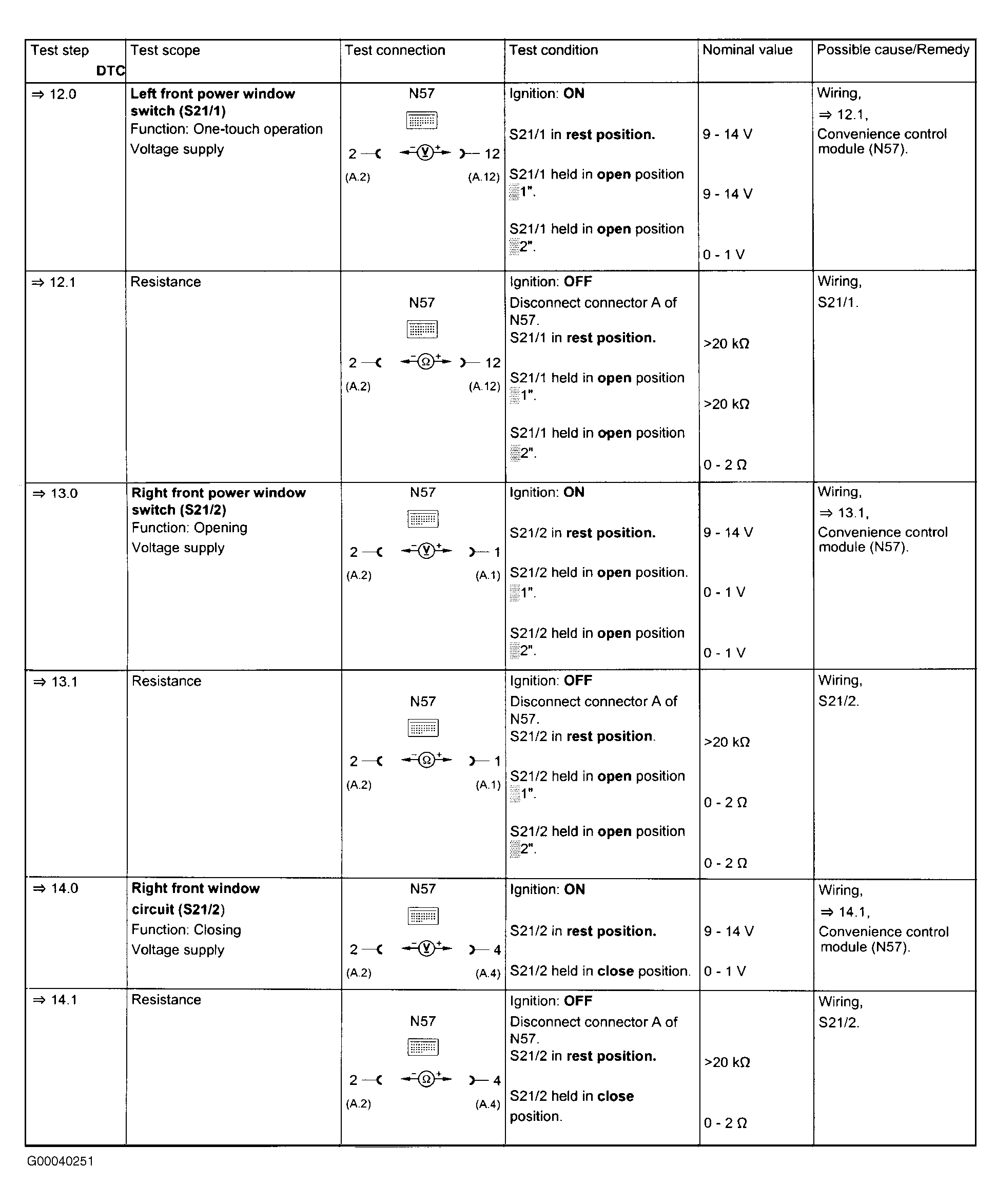

Fig 3: Electrical Tests - Steps 12-14.1 (3 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

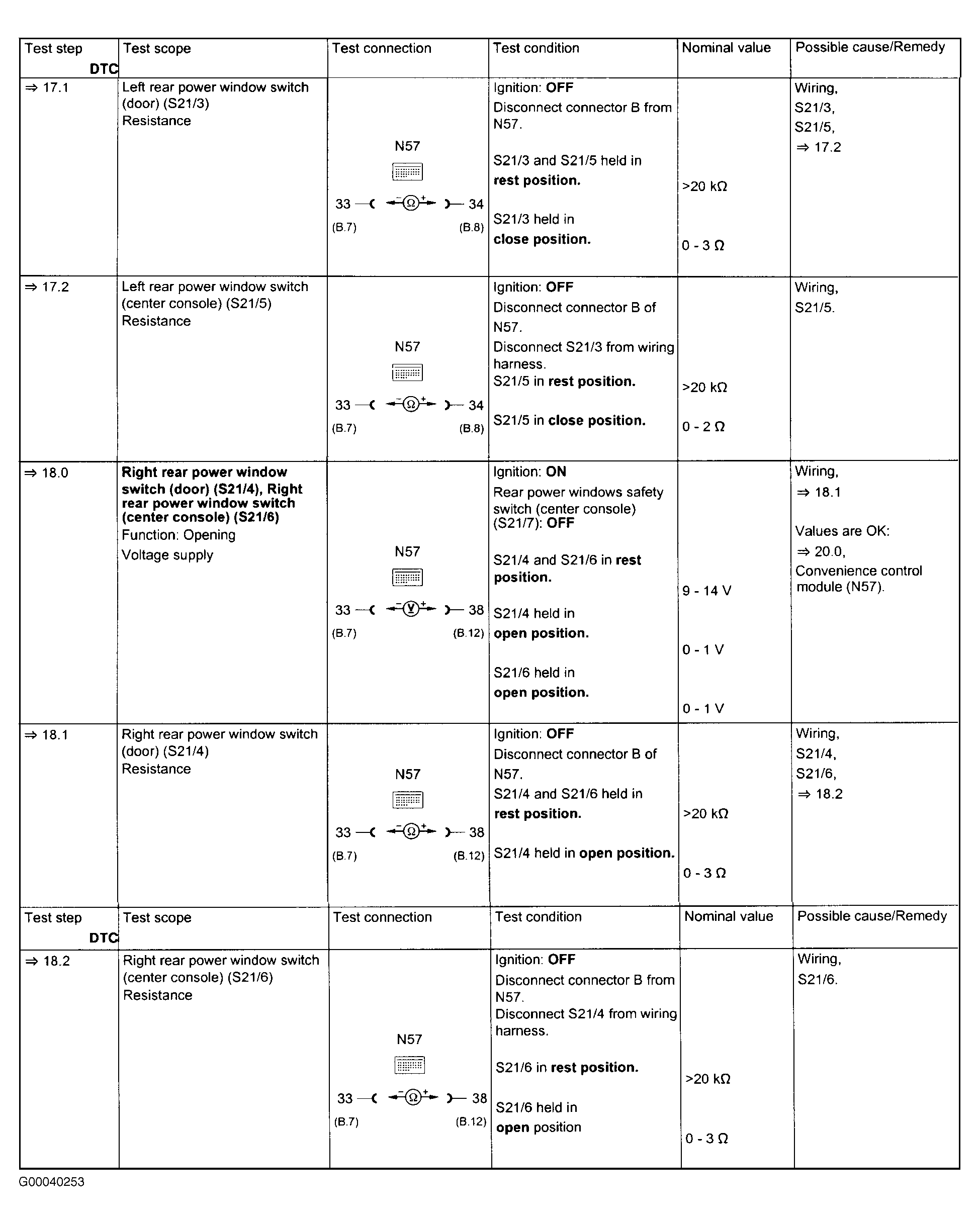

Fig 4: Electrical Tests - Steps 15-17 (4 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

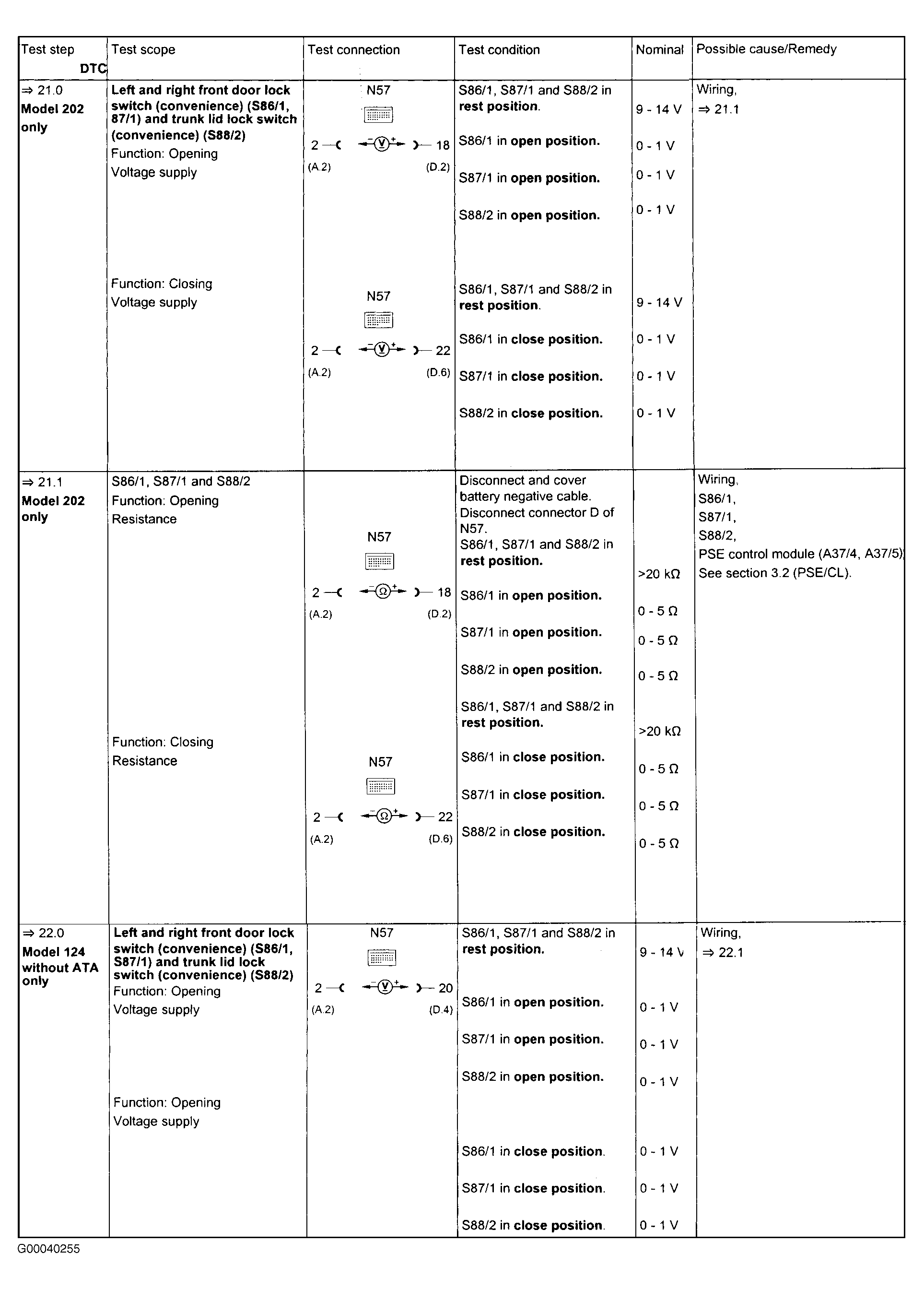

Fig 5: Electrical Tests - Steps 17.1-18.2 (5 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

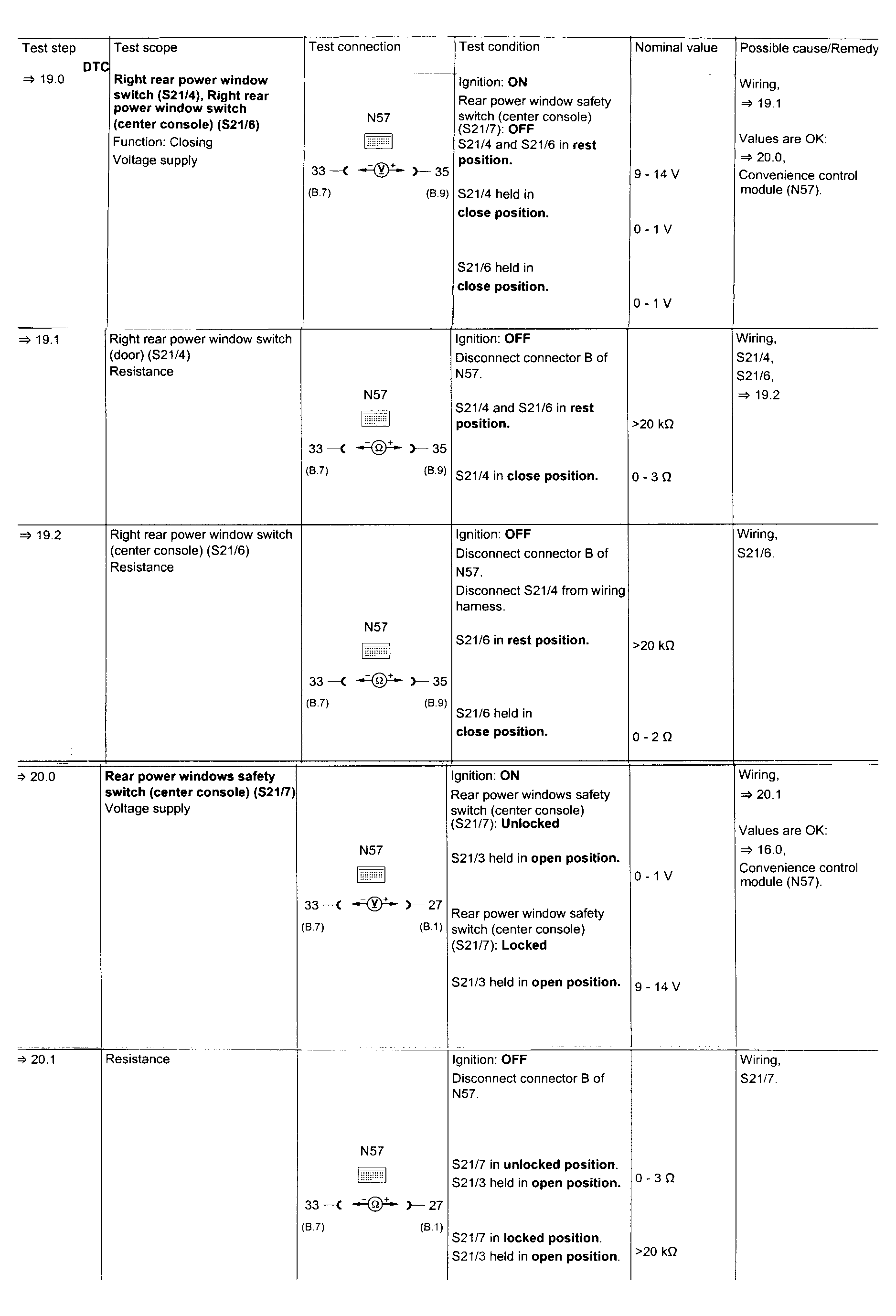

Fig 6: Electrical Tests - Steps 19-20.1 (6 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Electrical Tests - Steps 21-22 (7 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

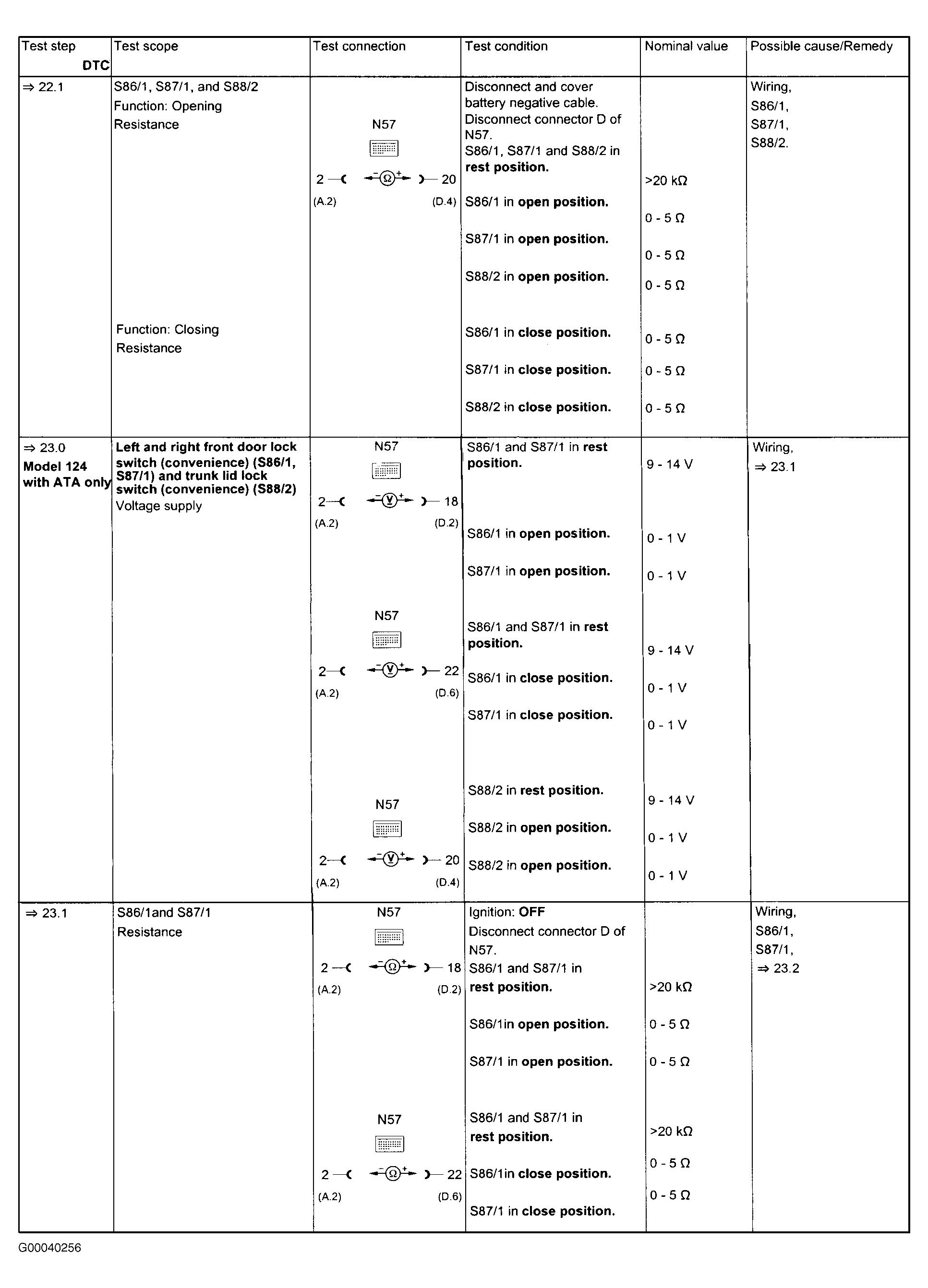

Fig 8: Electrical Tests - Steps 22.1-23.1 (8 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

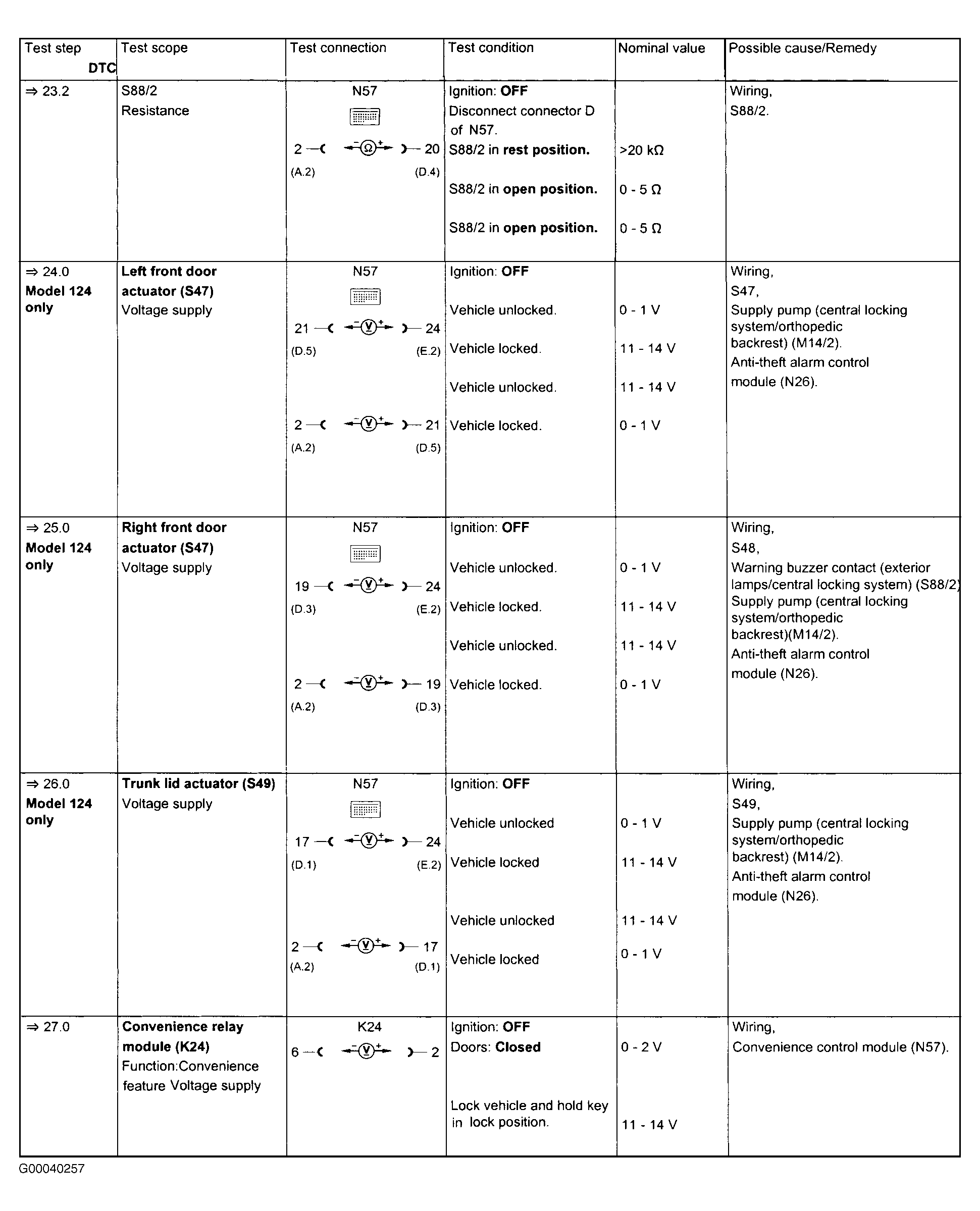

Fig 9: Electrical Tests - Steps 23.2-27 (9 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

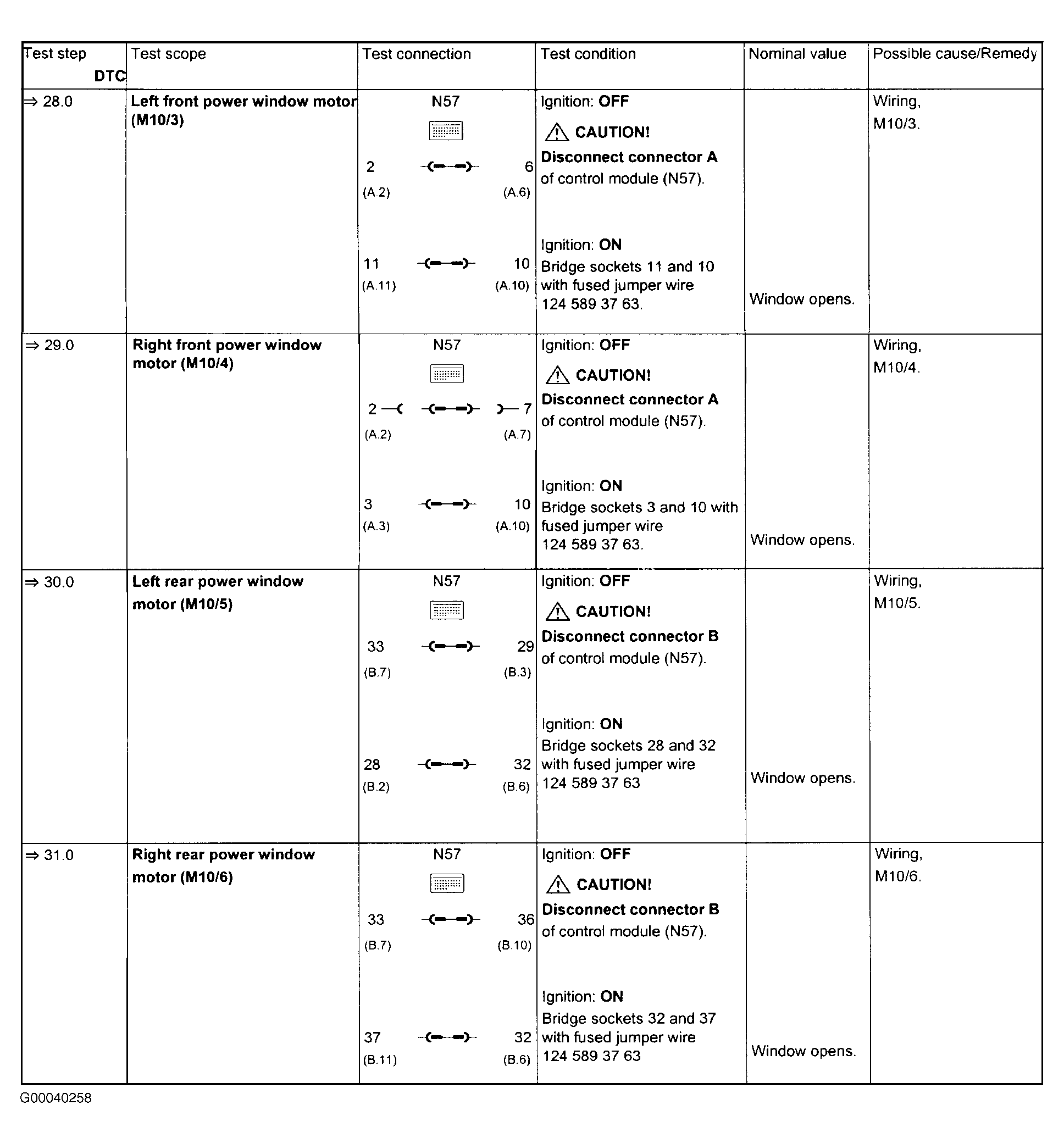

Fig 10: Electrical Tests - Steps 28-31 (10 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
