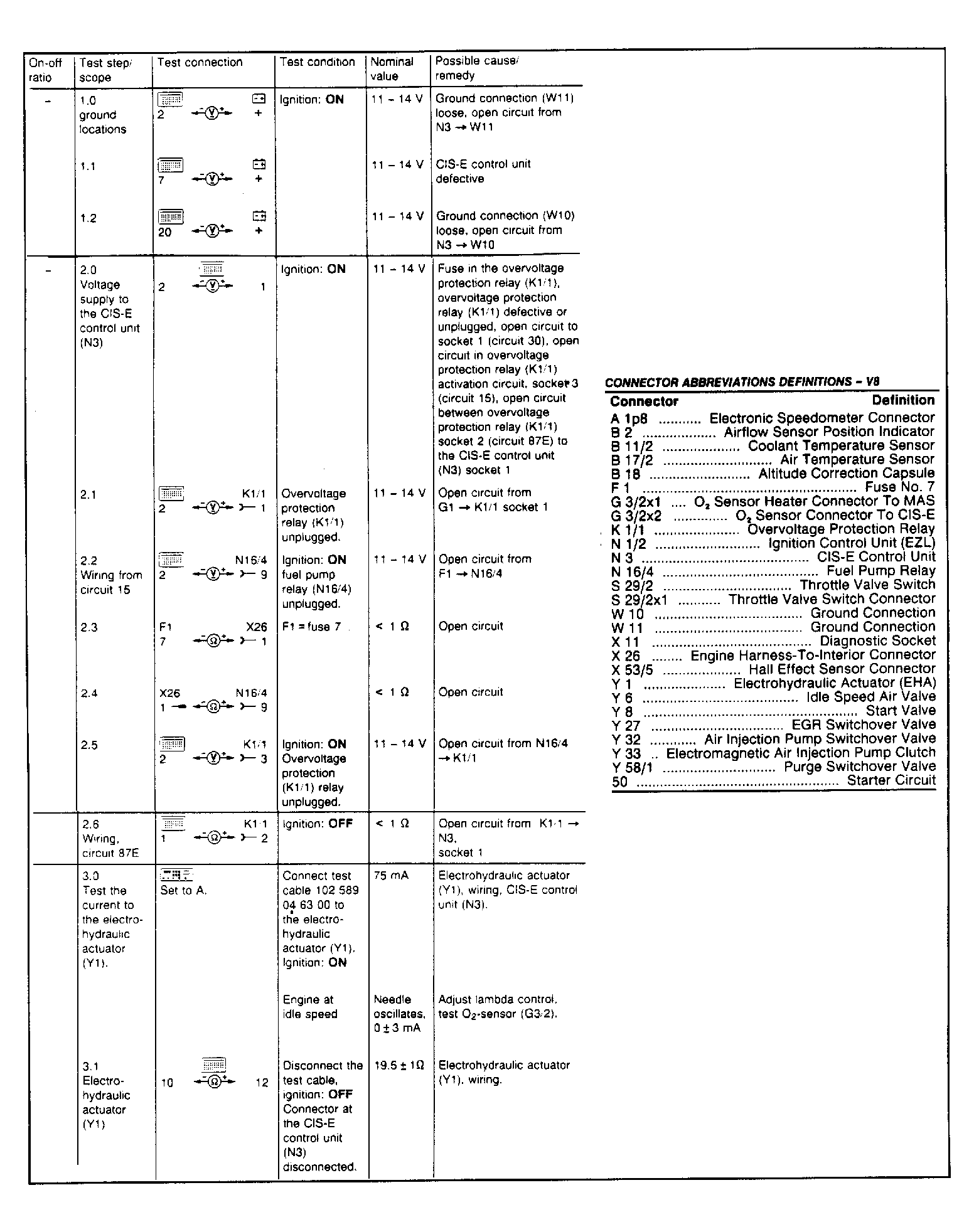

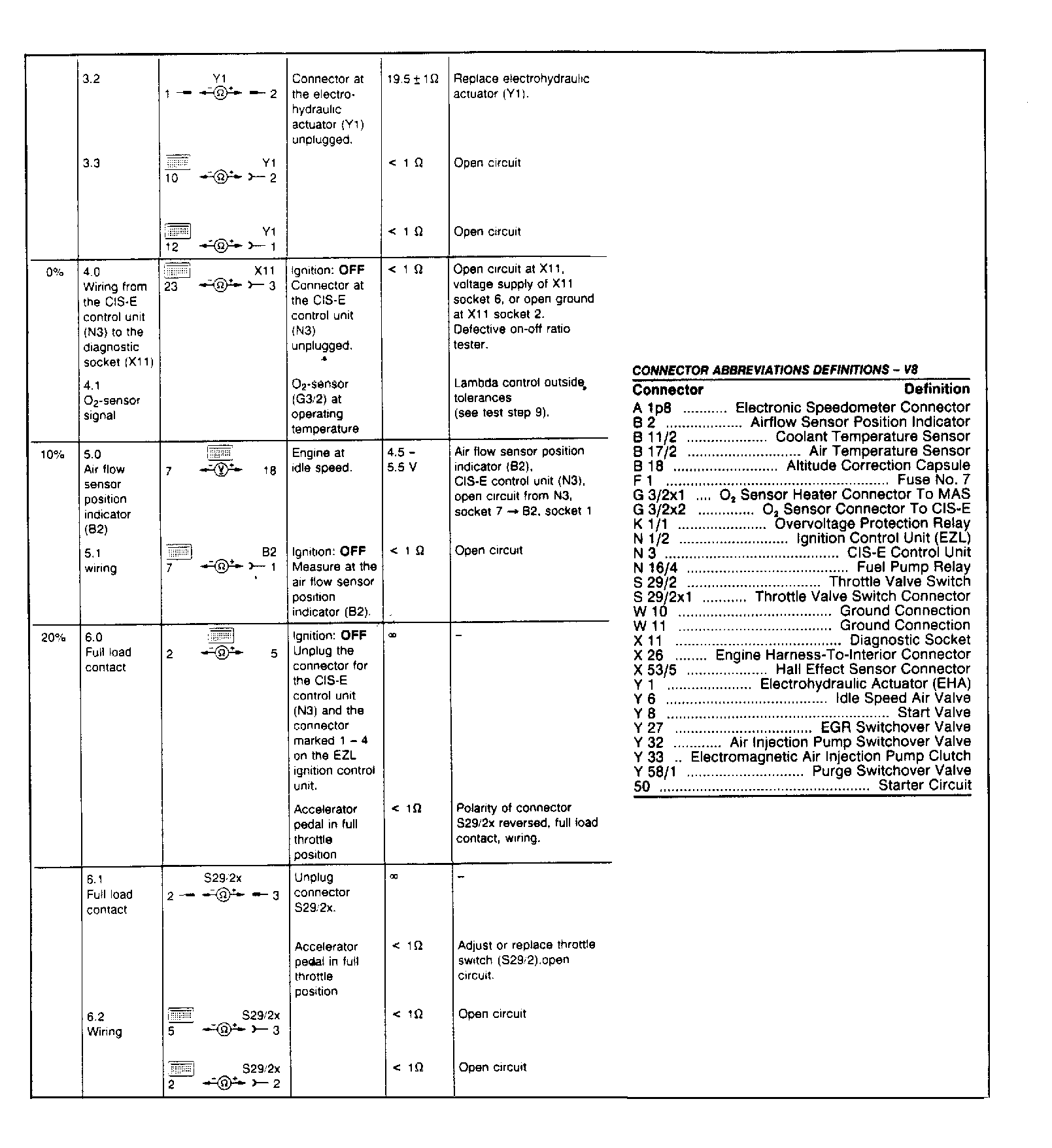

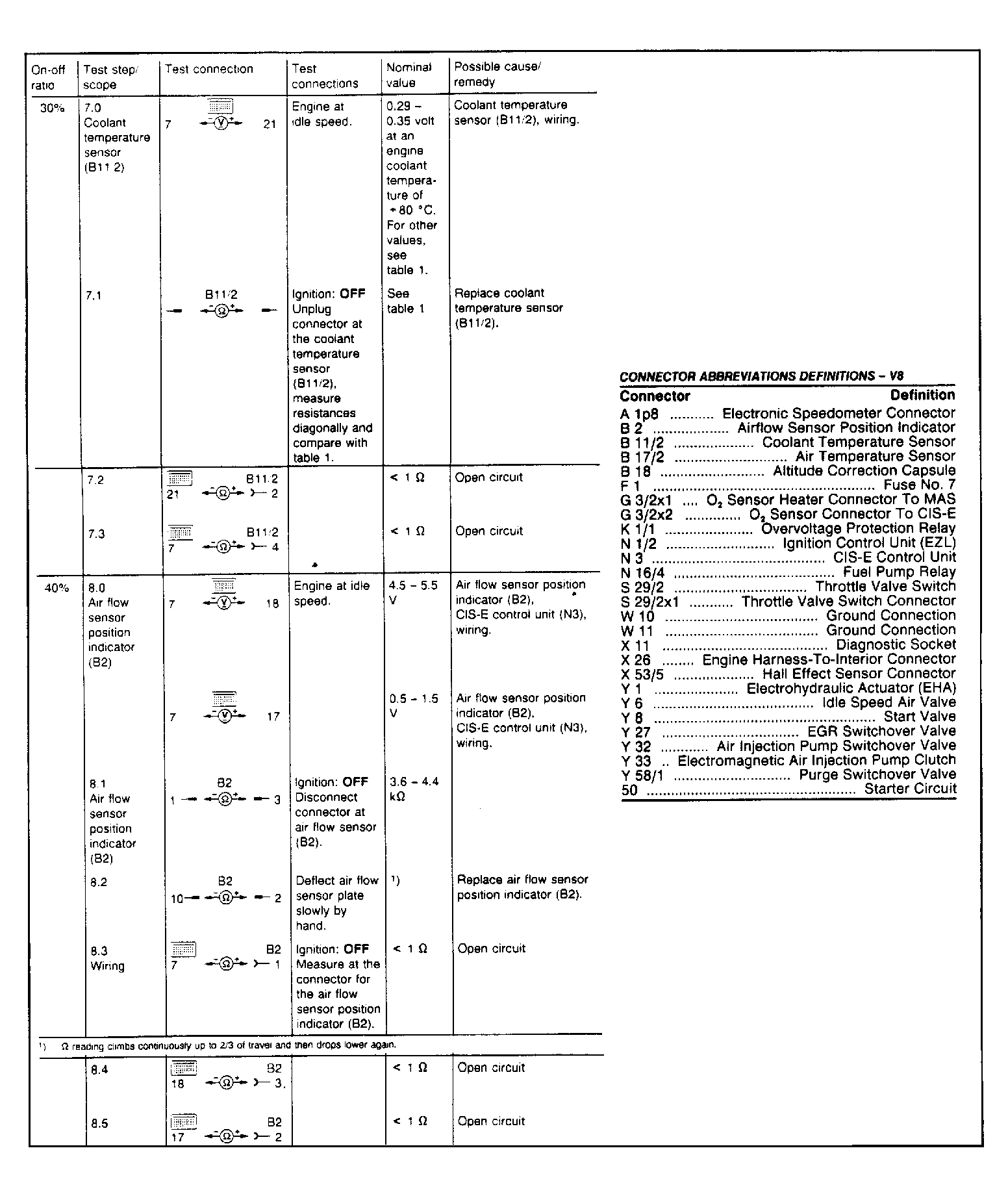

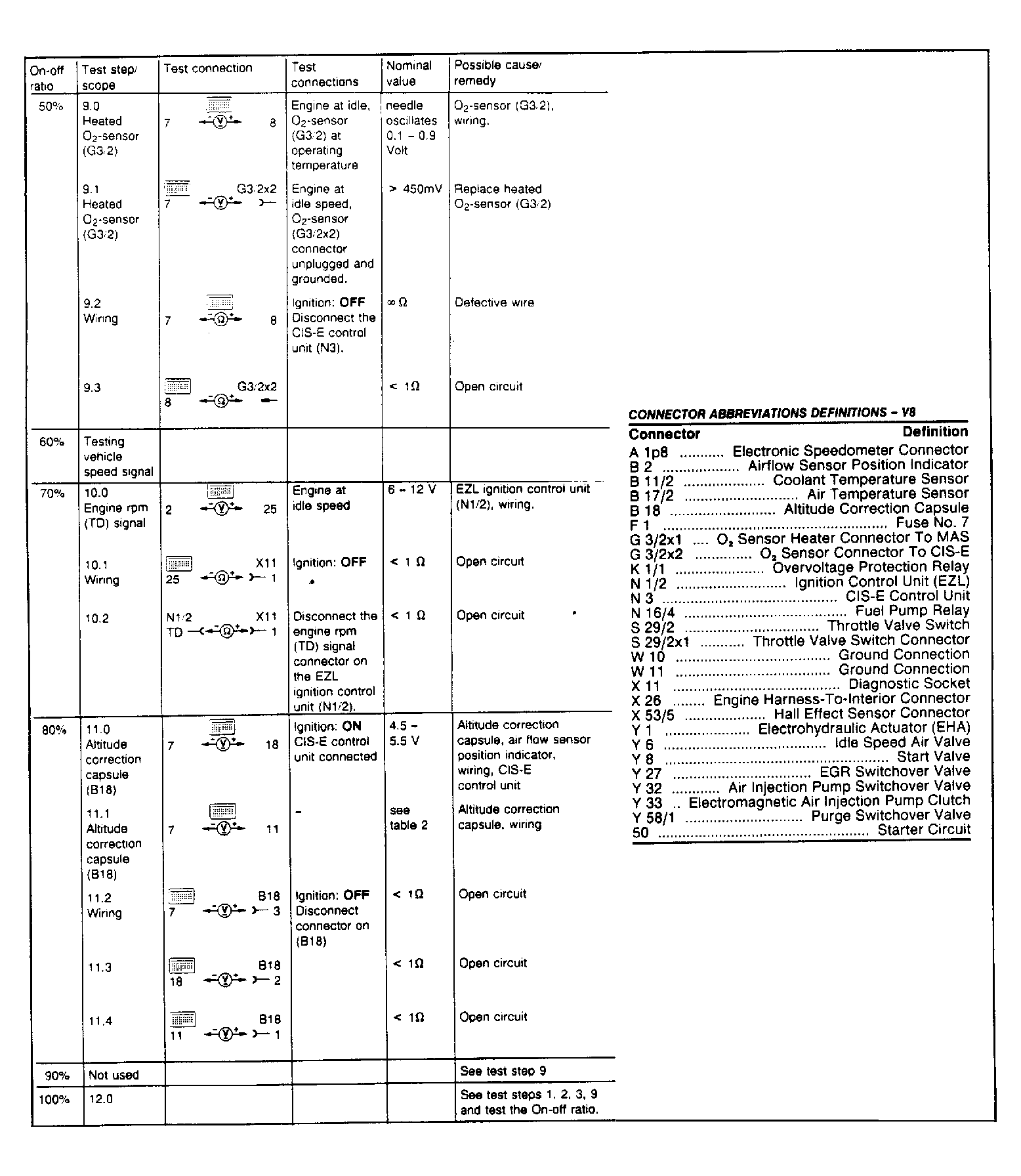

Test Step Charts - V8
CONNECTOR ABBREVIATIONS DEFINITIONS - V8
| Connector | Definition |
|---|---|
| A 1p8 | Electronic Speedometer Connector |
| B 2 | Airflow Sensor Position Indicator |
| B 11/2 | Coolant Temperature Sensor |
| B 17/2 | Air Temperature Sensor |
| B 18 | Altitude Correction Capsule |
| F 1 | Fuse No. 7 |
| G 3/2x1 | O2 Sensor Heater Connector To MAS |
| G 3/2x2 | O2 Sensor Connector To CIS-E |
| K 1/1 | Overvoltage Protection Relay |
| N 1/2 | Ignition Control Unit (EZL) |
| N 3 | CIS-E Control Unit |
| N 16/4 | Fuel Pump Relay |
| S 29/2 | Throttle Valve Switch |
| S 29/2x1 | Throttle Valve Switch Connector |
| W 10 | Ground Connection |
| W 11 | Ground Connection |
| X 11 | Diagnostic Socket |
| X 26 | Engine Harness-To-Interior Connector |
| X 53/5 | Hall Effect Sensor Connector |
| Y 1 | Electrohydraulic Actuator (EHA) |
| Y 6 | Idle Speed Air Valve |
| Y 8 | Start Valve |
| Y 27 | EGR Switchover Valve |
| Y 32 | Air Injection Pump Switchover Valve |
| Y 33 | Electromagnetic Air Injection Pump Clutch |
| Y 58/1 | Purge Switchover Valve |
| 50 | Starter Circuit |
