Riding Height Adjustment

NOTE: On vehicles with electronic chassis controls, all systems should be functional before attempting riding height or wheel alignment adjustment.

Before adjusting alignment, check riding height. Riding height must be checked with vehicle on level floor and tires properly inflated. Bounce vehicle several times and allow suspension to settle.

Visually inspect vehicle for signs of abnormal height from front to rear or side to side. Check passenger and luggage compartments for extra heavy items and remove if present. If riding height is not within specifications, check, repair or replace suspension components. See RIDING HEIGHT SPECIFICATIONS table.

NOTE: For vehicles not listed, riding height between left and right side of vehicle should vary less than 1/2" (12.4 mm).

RIDING HEIGHT SPECIFICATIONS

Application ⁽¹⁾

Front: In. (mm)

Rear: In. (mm)

190 Series

1.2 (30)

⁽²⁾

300 Series

1.1 (28)

350 Series, 420SEL & 560SEL

1.8 (45)

⁽²⁾

560SEC

2.2 (55)

⁽²⁾

⁽¹⁾	- See Fig 1 for measuring tool required to check riding height.

⁽²⁾	- Not specified.

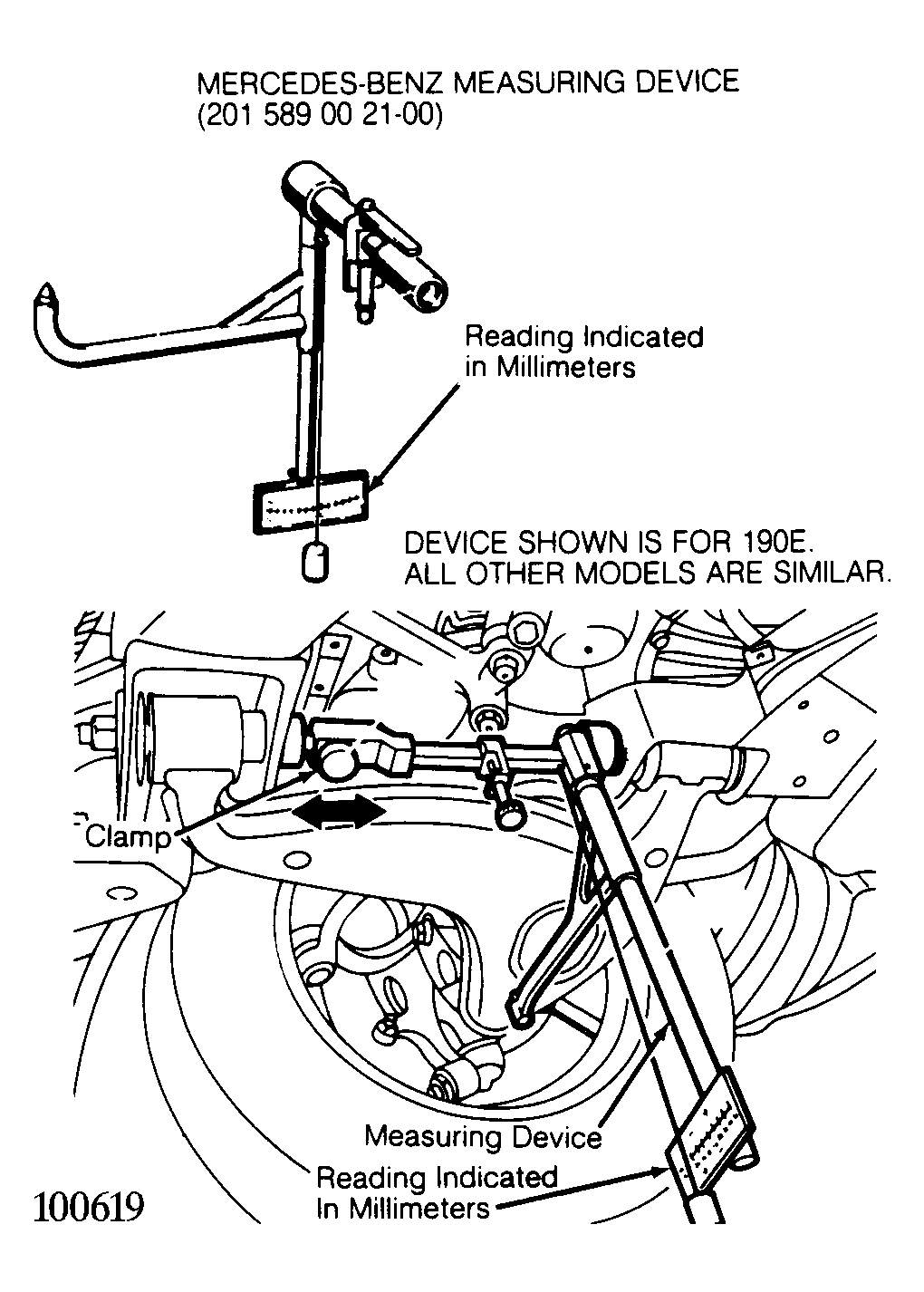

Fig 1: Front Control Arm Position (Riding Height) Measuring Tool Courtesy of Mercedes-Benz of North America.
