EGR Temperature Sensor (CALIFORNIA)

EGR temperature sensor resistance values are proportionate to EGR temperature. Test results must meet specifications shown in graph. See Fig 1.

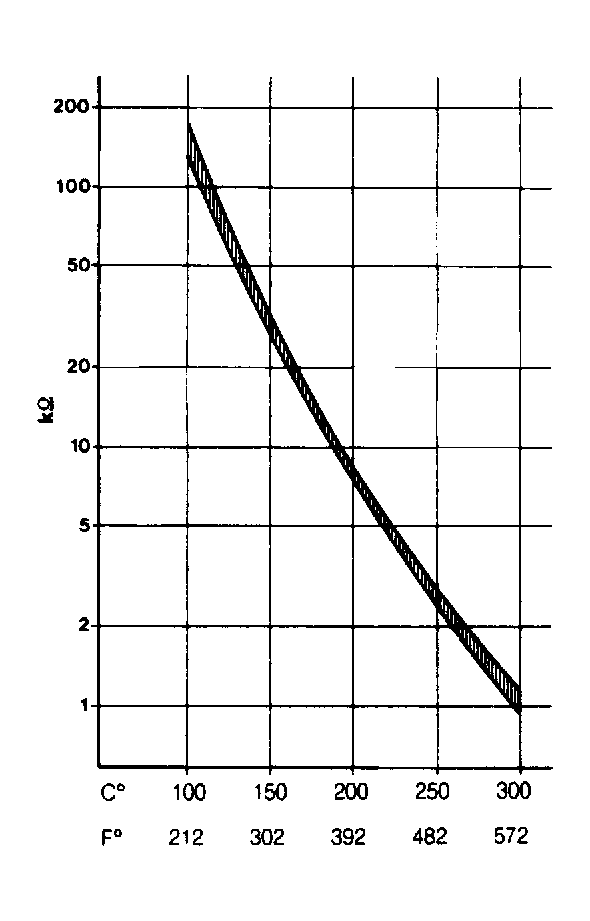

Fig 1: EGR Temperature Sensor Operating Ranges
G121449Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
