Wiring Diagrams

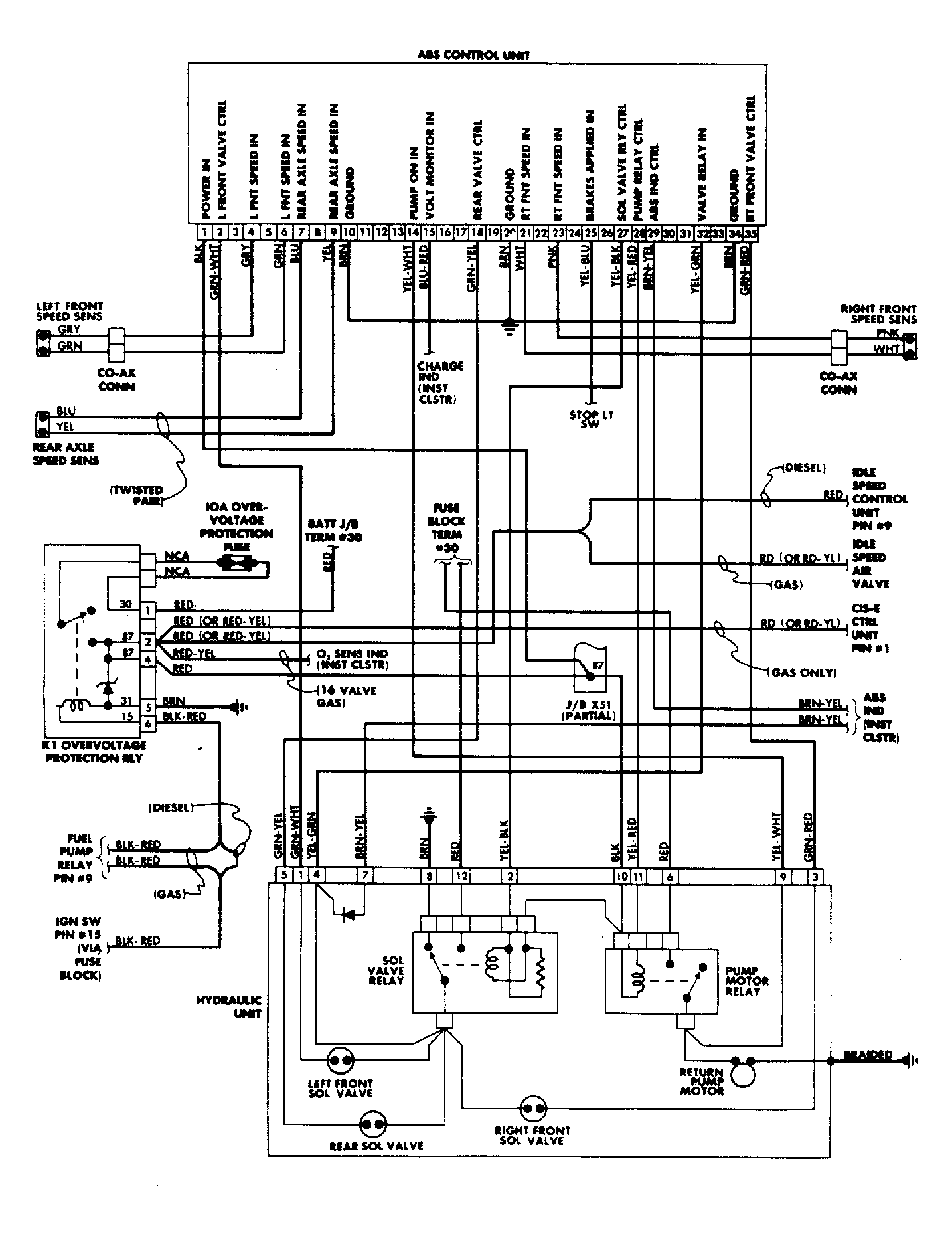

Fig 1: Anti-Lock Brake System Wiring Diagram (190E)
G52137

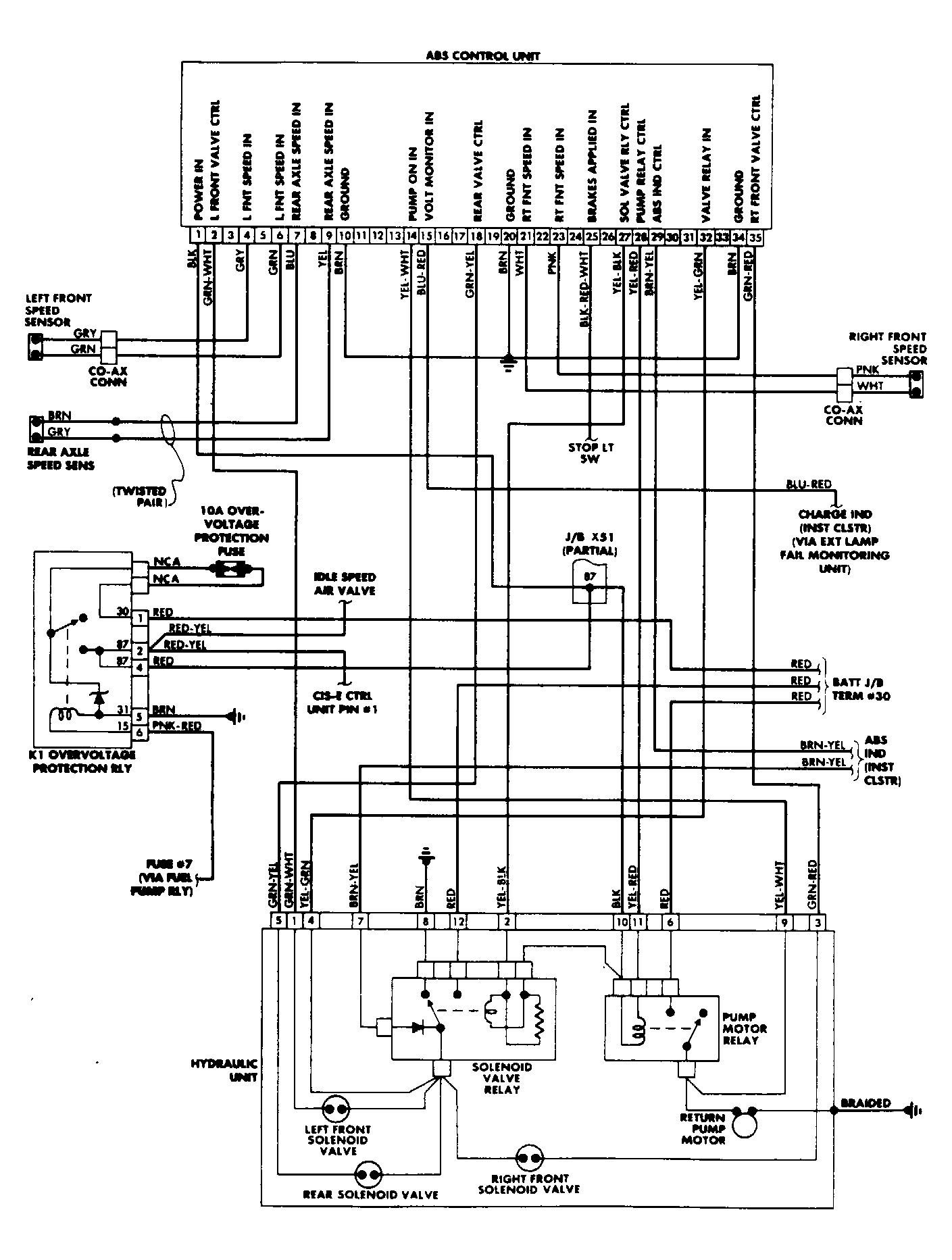

Fig 2: Anti-Lock Brake System Wiring Diagram (260E & 300 Series)
G52138

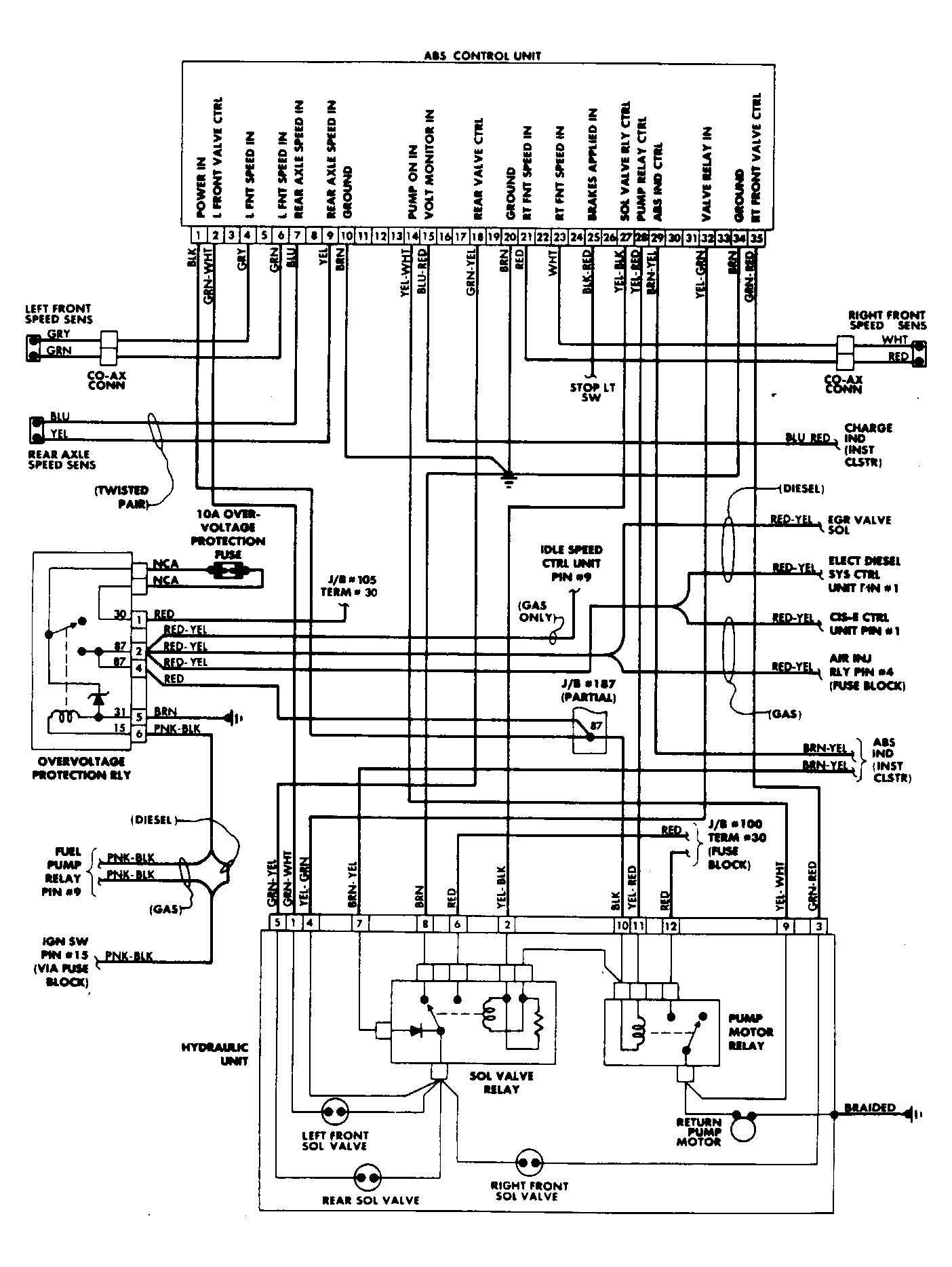

Fig 3: Anti-Lock Brake System Wiring Diagram (420SEL)
G52139

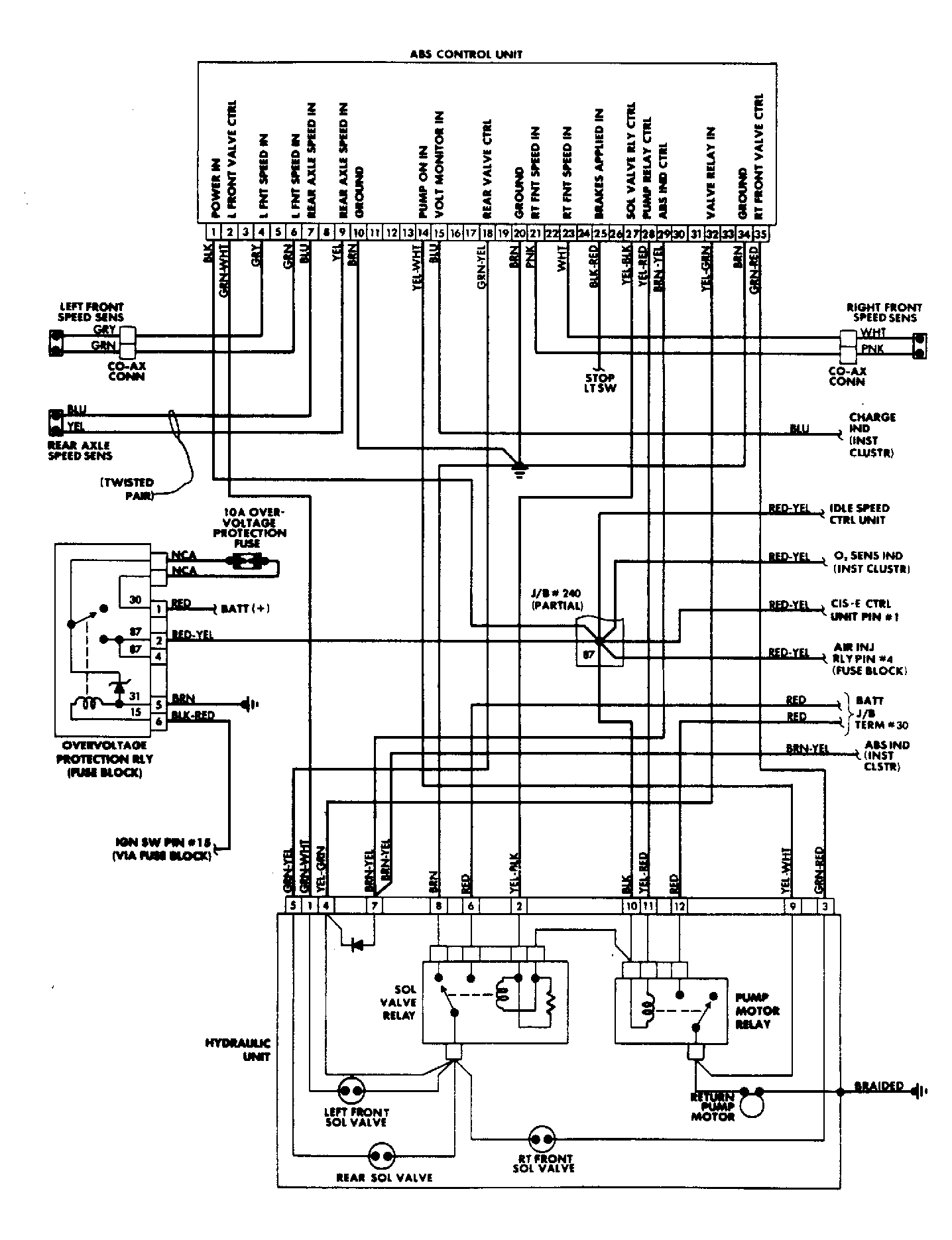

Fig 4: Anti-Lock Brake System Wiring Diagram (560 Series)
G52140
