Anti-Theft Function Test

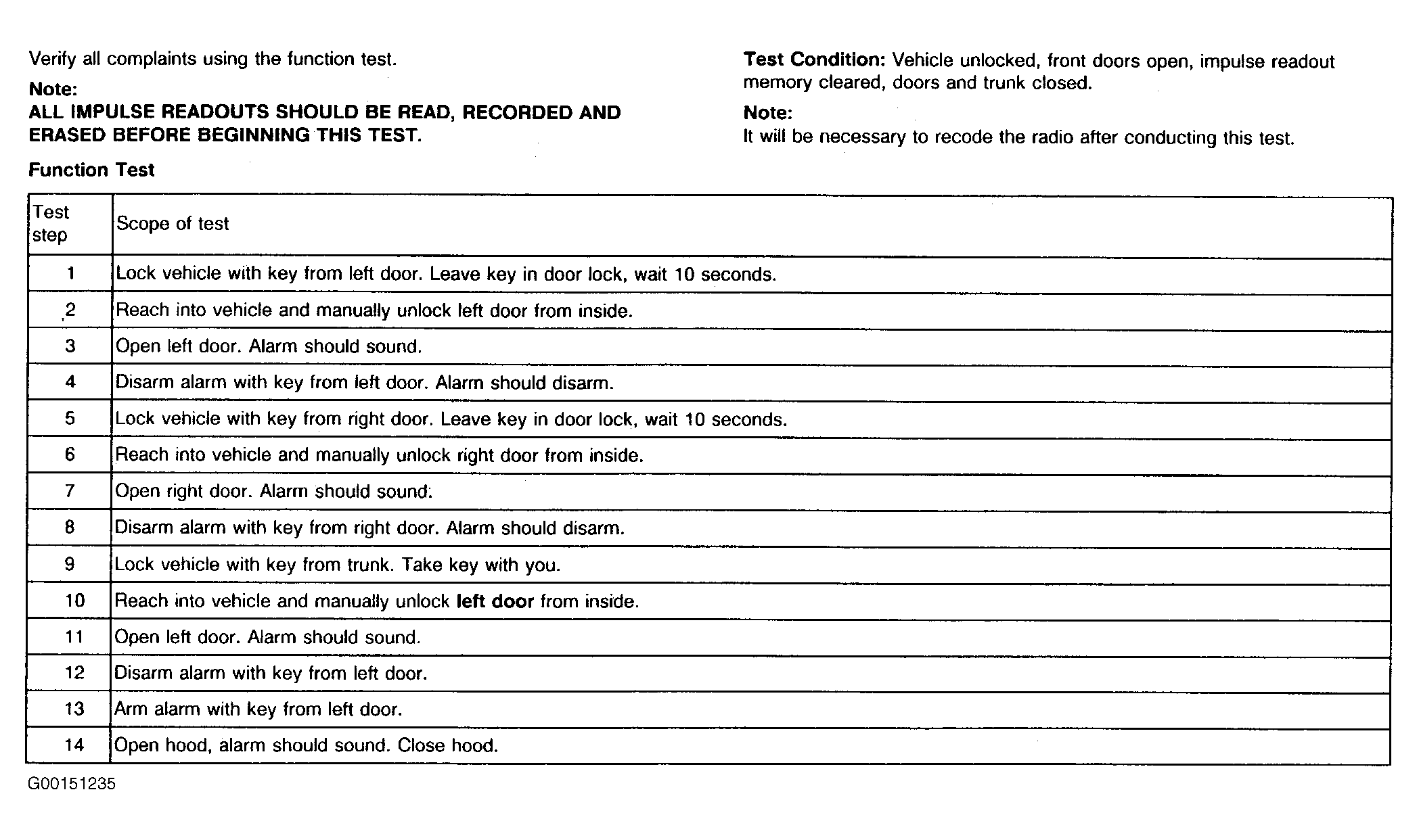

Fig 1: Anti-Theft Function Test, Steps 1-14
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

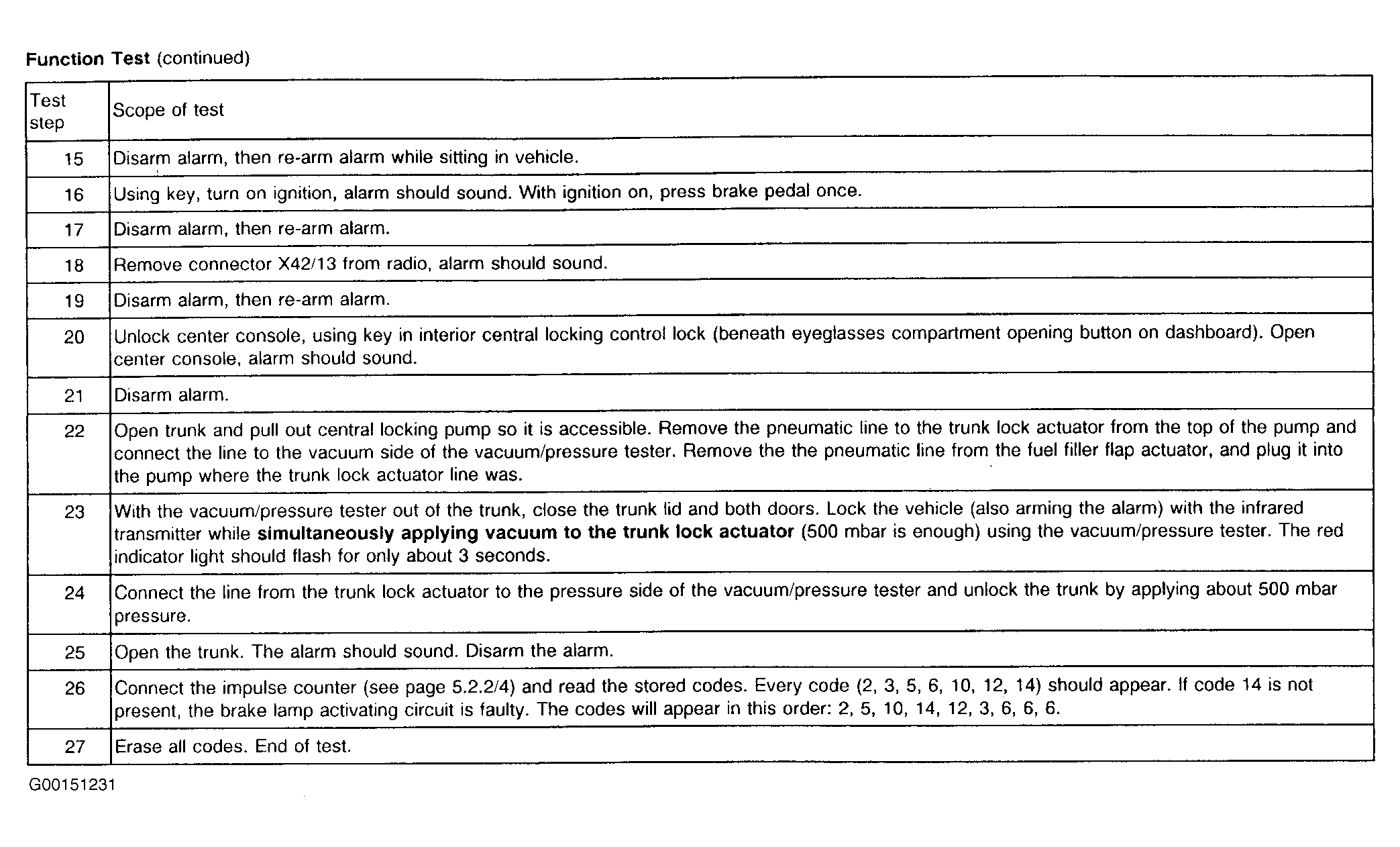

Fig 2: Anti-Theft Function Test, Steps 15-27
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
