Anti-Theft Alarm System Test Using Socket Box Tester

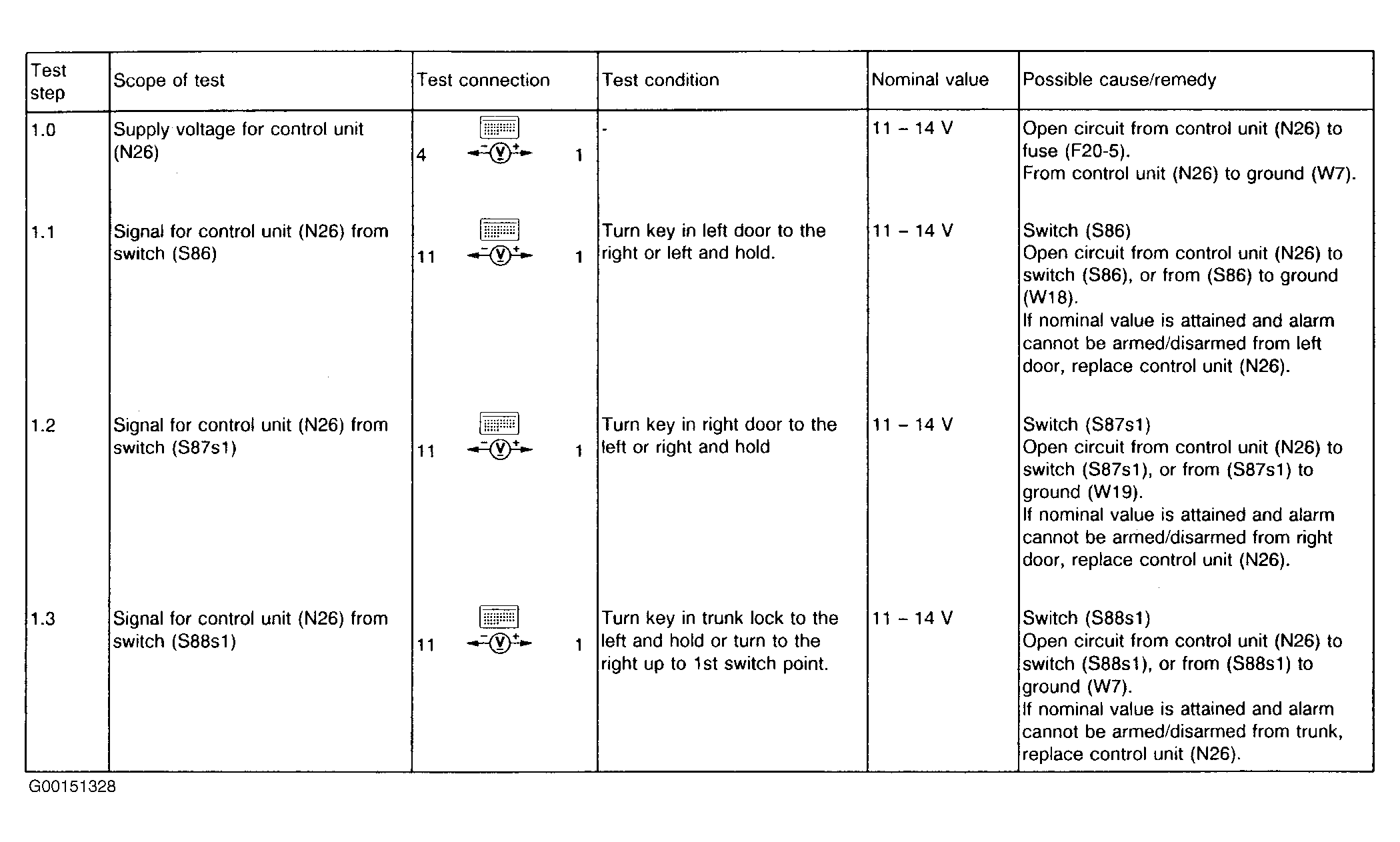

Fig 1: Test Steps 1.0-1.3

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

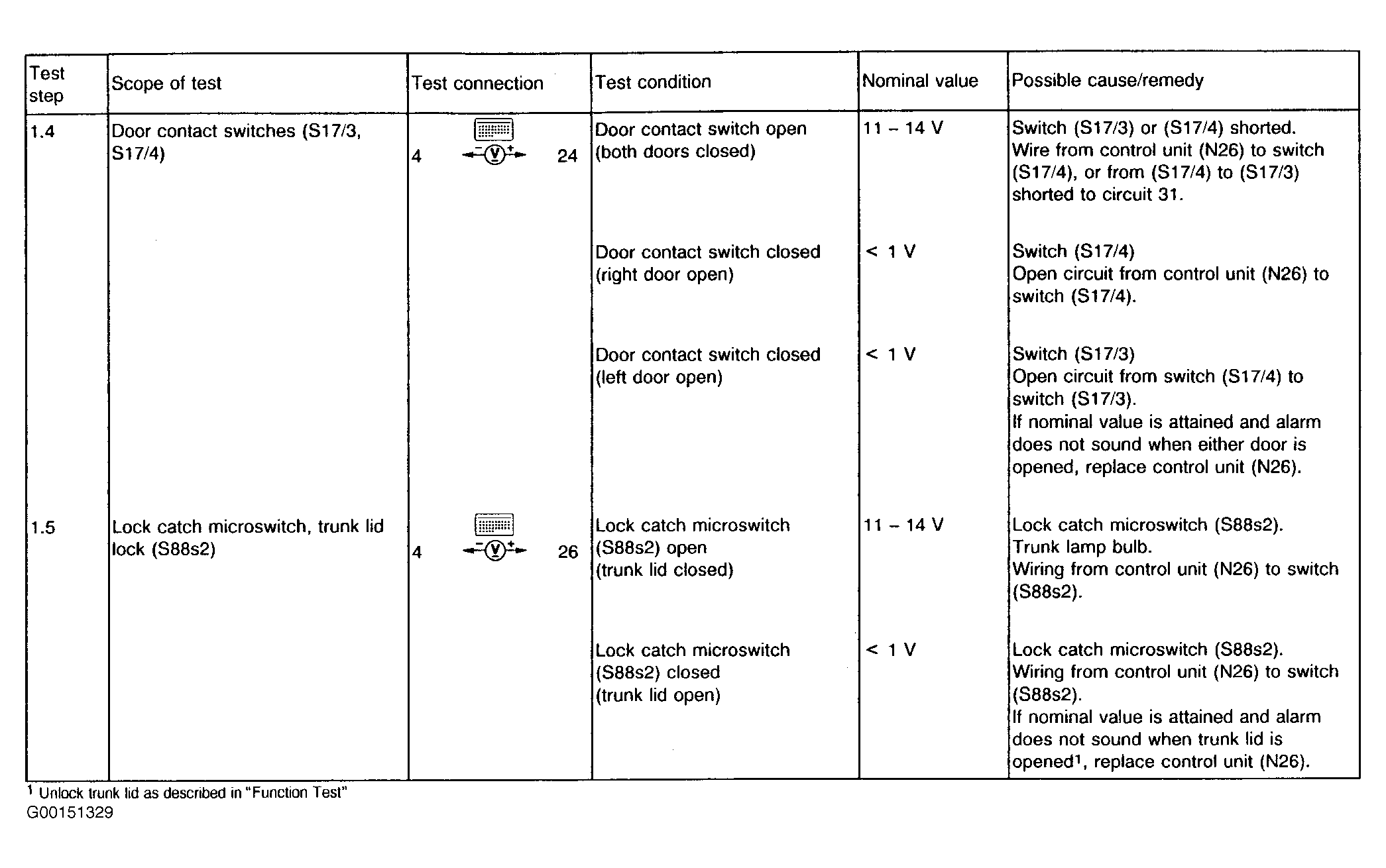

Fig 2: Test Steps 1.4 & 1.5

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

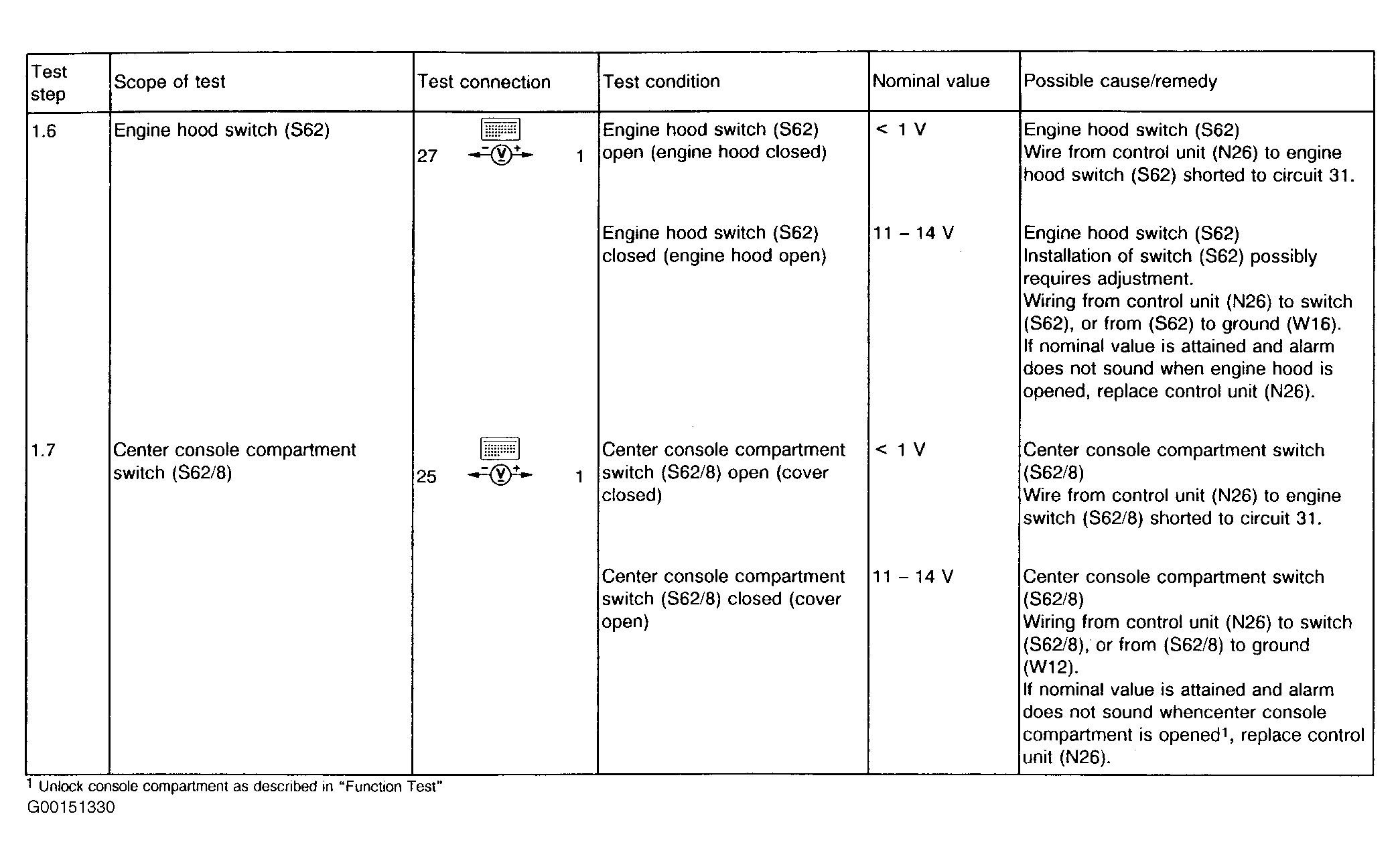

Fig 3: Test Steps 1.6 & 1.7

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

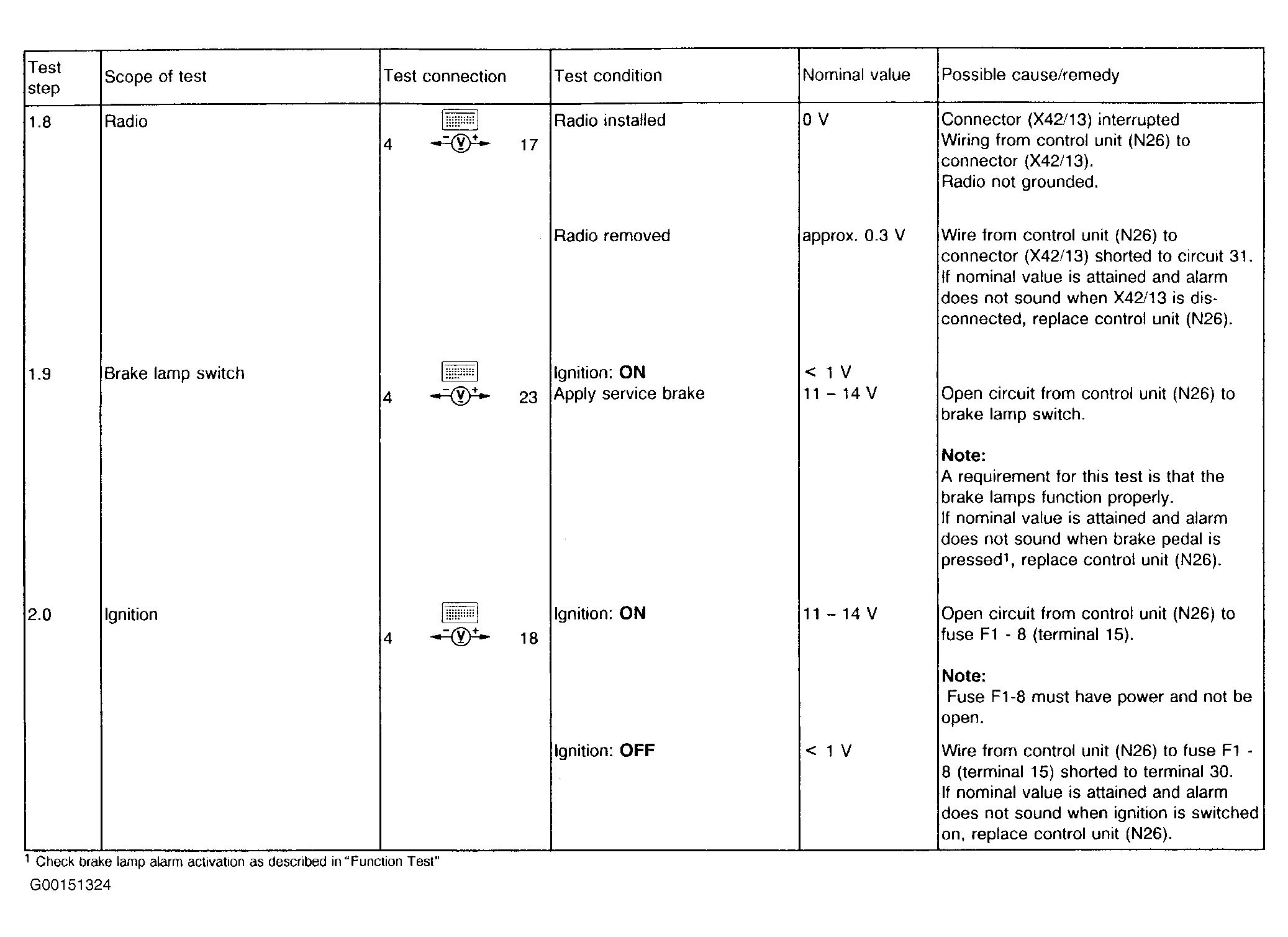

Fig 4: Test Steps 1.8-2.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

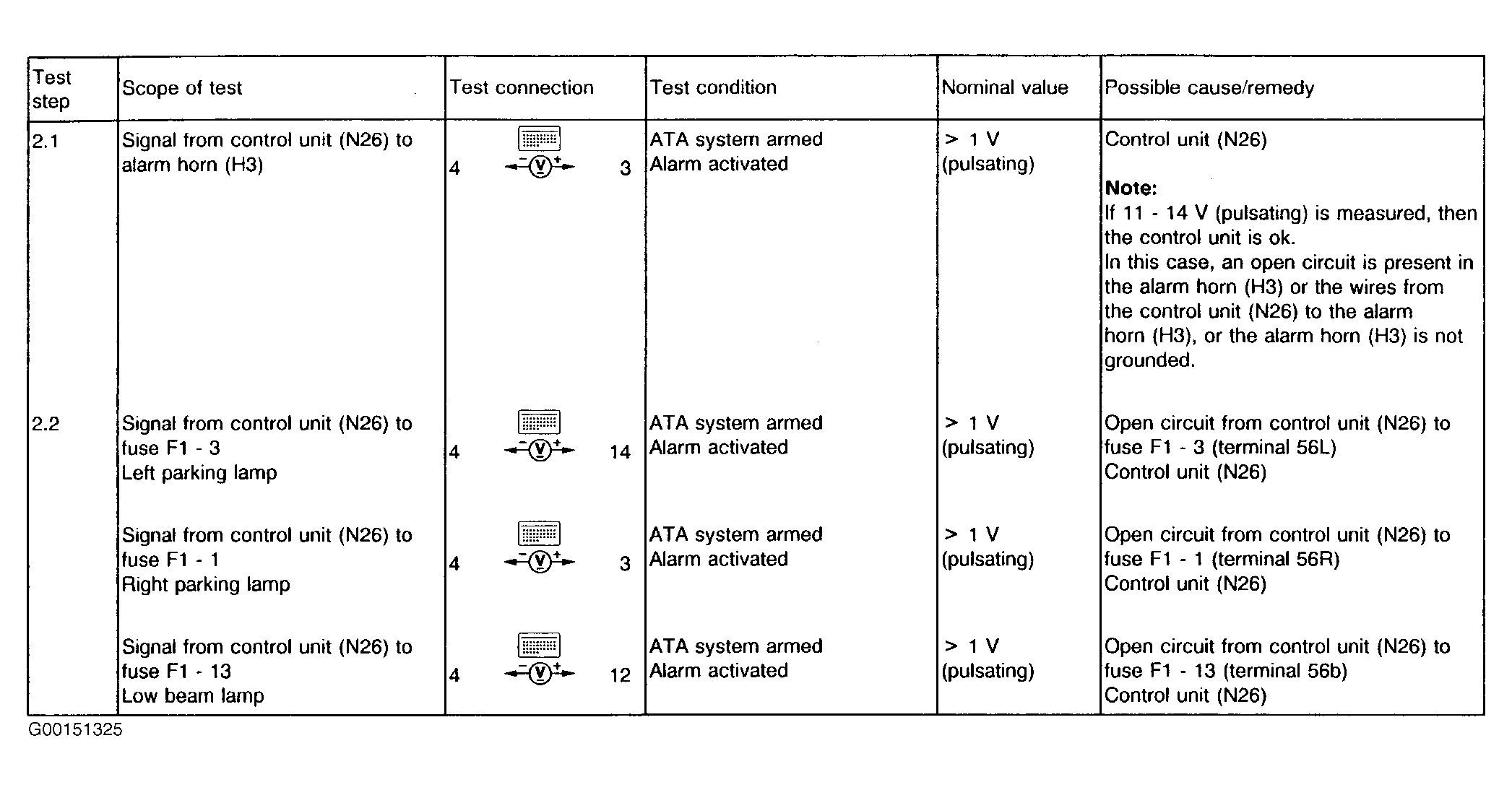

Fig 5: Test Steps 2.1 & 2.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

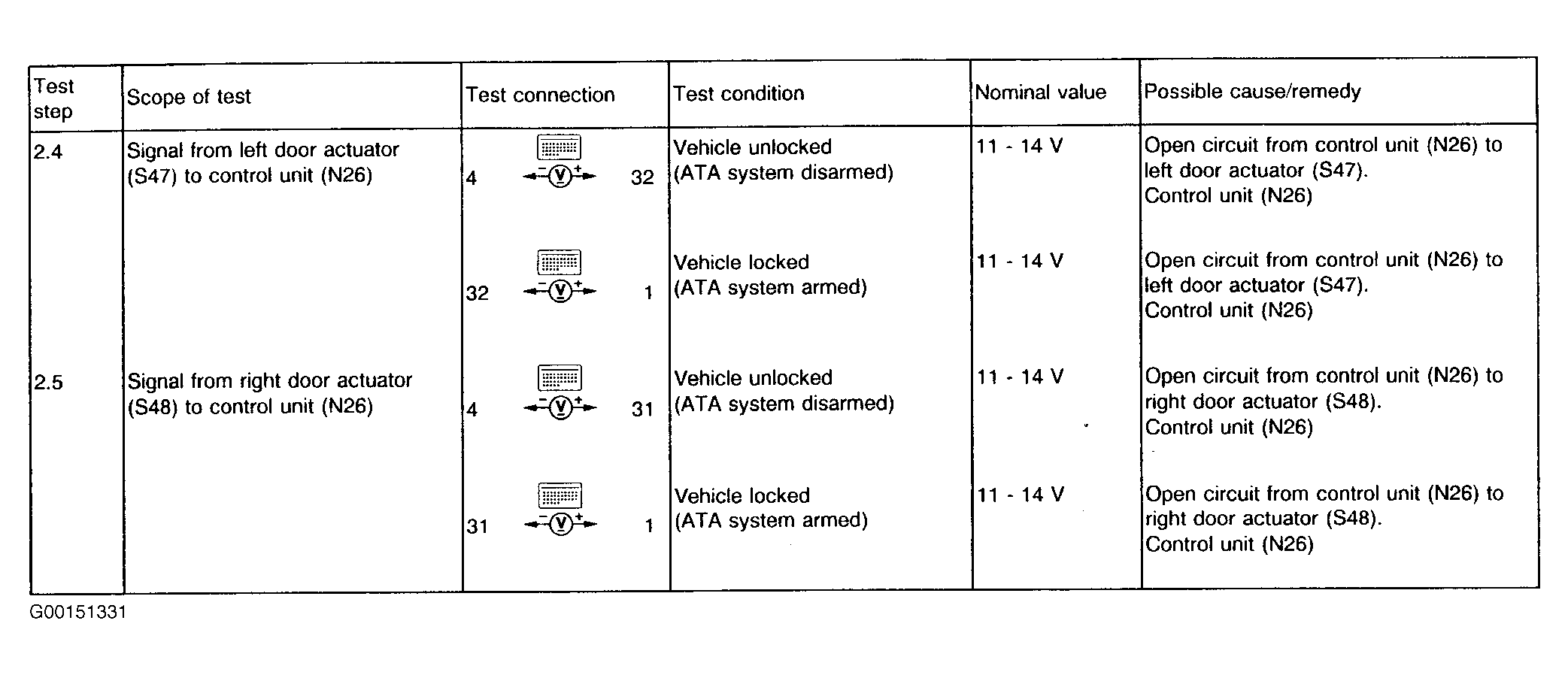

Fig 6: Test Steps 2.4 & 2.5

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
