Antilock Brake System Test Procedures (42/6)

ANTILOCK BRAKE SYSTEM TEST PROCEDURES

TECHNICAL SERVICE BULLETIN

ANTILOCK BRAKE SYSTEM TEST - ALL MODELS

Model(s): All Mercedes Benz Models with Anti-Lock Brakes

Group: Brakes

Bulletin No.: 42/6

Date: March 1990

SERVICE INFORMATION

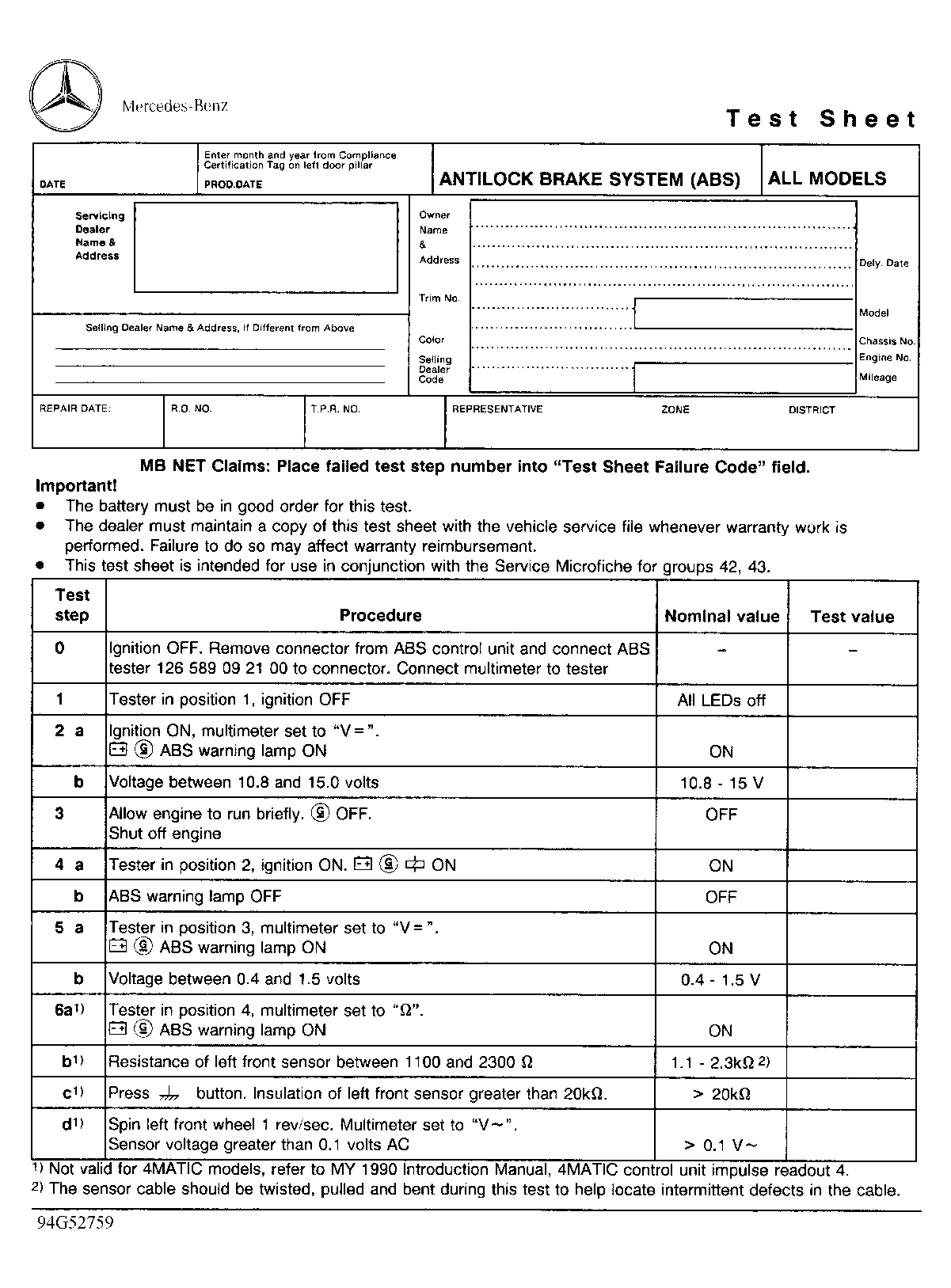

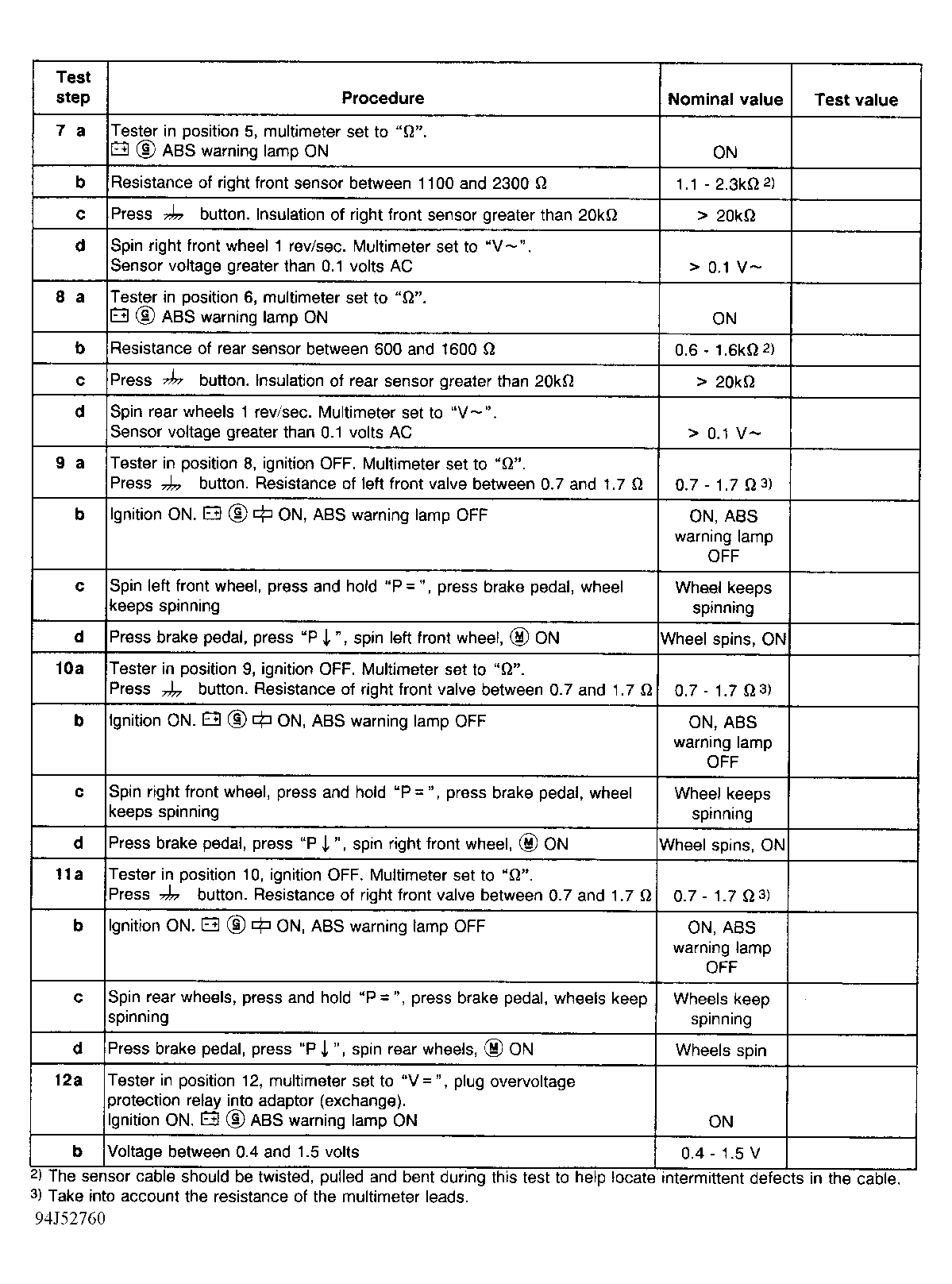

Figs. 1-2 are copies of the new test sheet for the antilock brake system (ABS), MBNA/MBC 2405. This test sheet MUST be completed for every ABS test performed, and retained in the Dealer's vehicle service file.

When entering a claim for the replacement of an ABS part on the MB-Net system, it is necessary to enter the number of the test step failed into the "Test Sheet Fail Code" field. Failure to do so mayaffect warranty reimbursement.

It should be noted that this test sheet is intended for use in conjunction with ABS test adapter 126 589 09 21 00 and the Service Microfiche for groups 42, 43. Test sheets in pads of 50 may be obtained from the Service & Parts Literature Department in the usual manner at a cost of $2.50 per pad.

ANTILOCK BRAKE SYSTEM TEST SHEET

(See Fig 1 -2.)
