Clutch Assembly: Notes

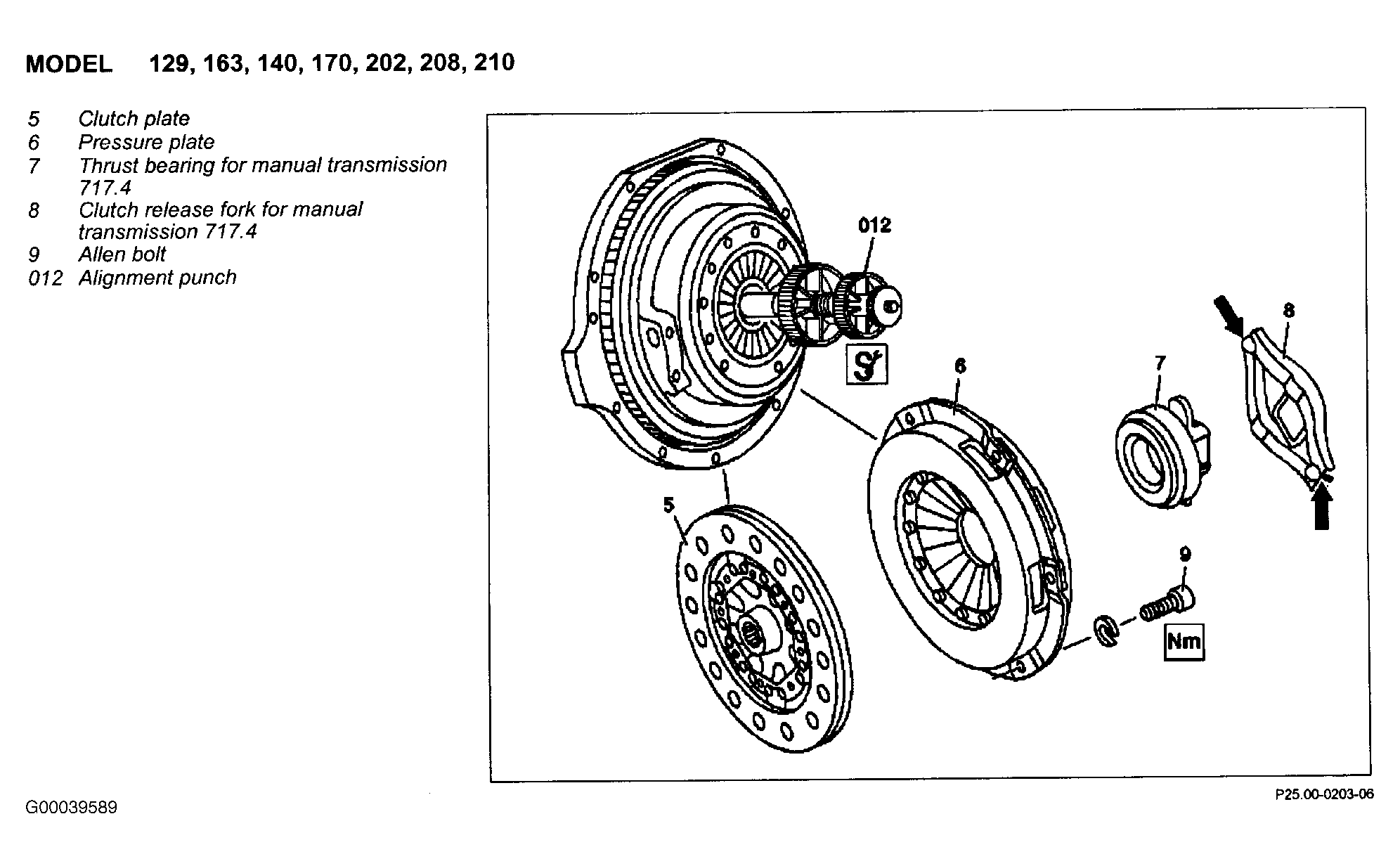

Fig 1: Identifying Clutch Assembly Components
G00039589Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

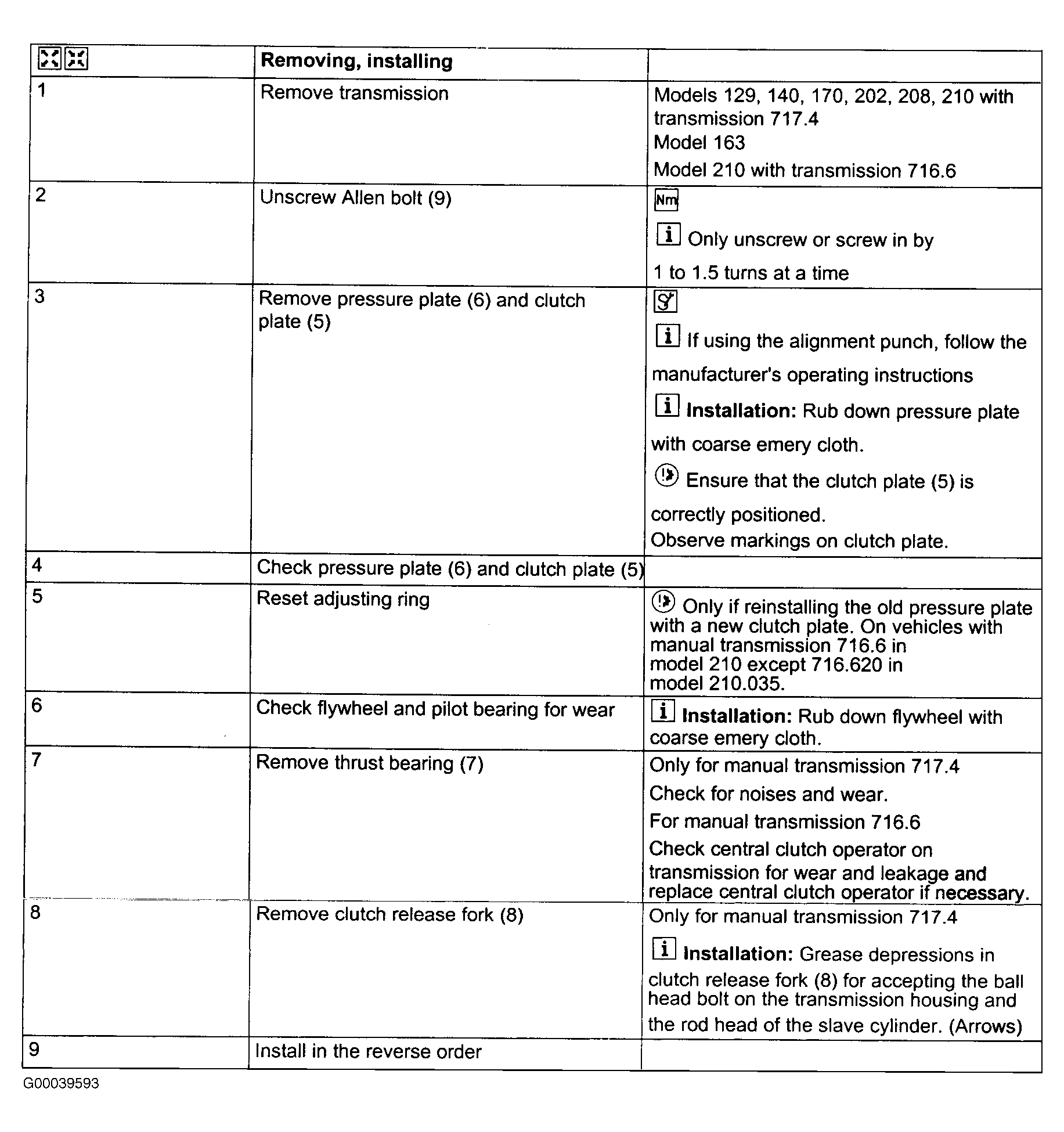

Fig 2: Removing & Installing Clutch Assembly (Steps 1-9)
G00039593Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
