Removal & Installation

NOTE: Testing information is not available.

NOTE: If door sheeting is damaged during removal renew and carefully attach by glueing.

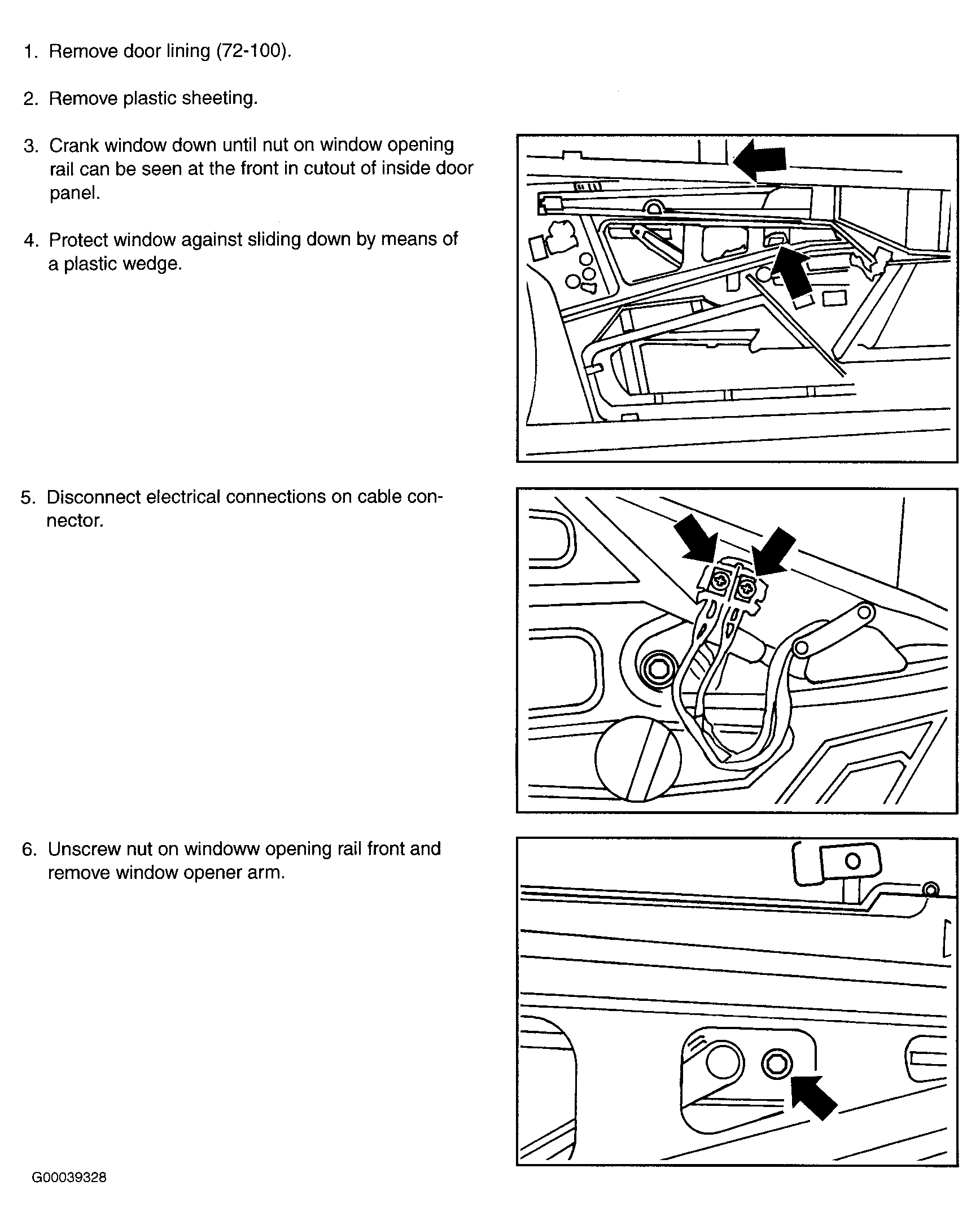

Fig 1: Removal & Installation Of Driver's Side Power Window - Steps 1-6 (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

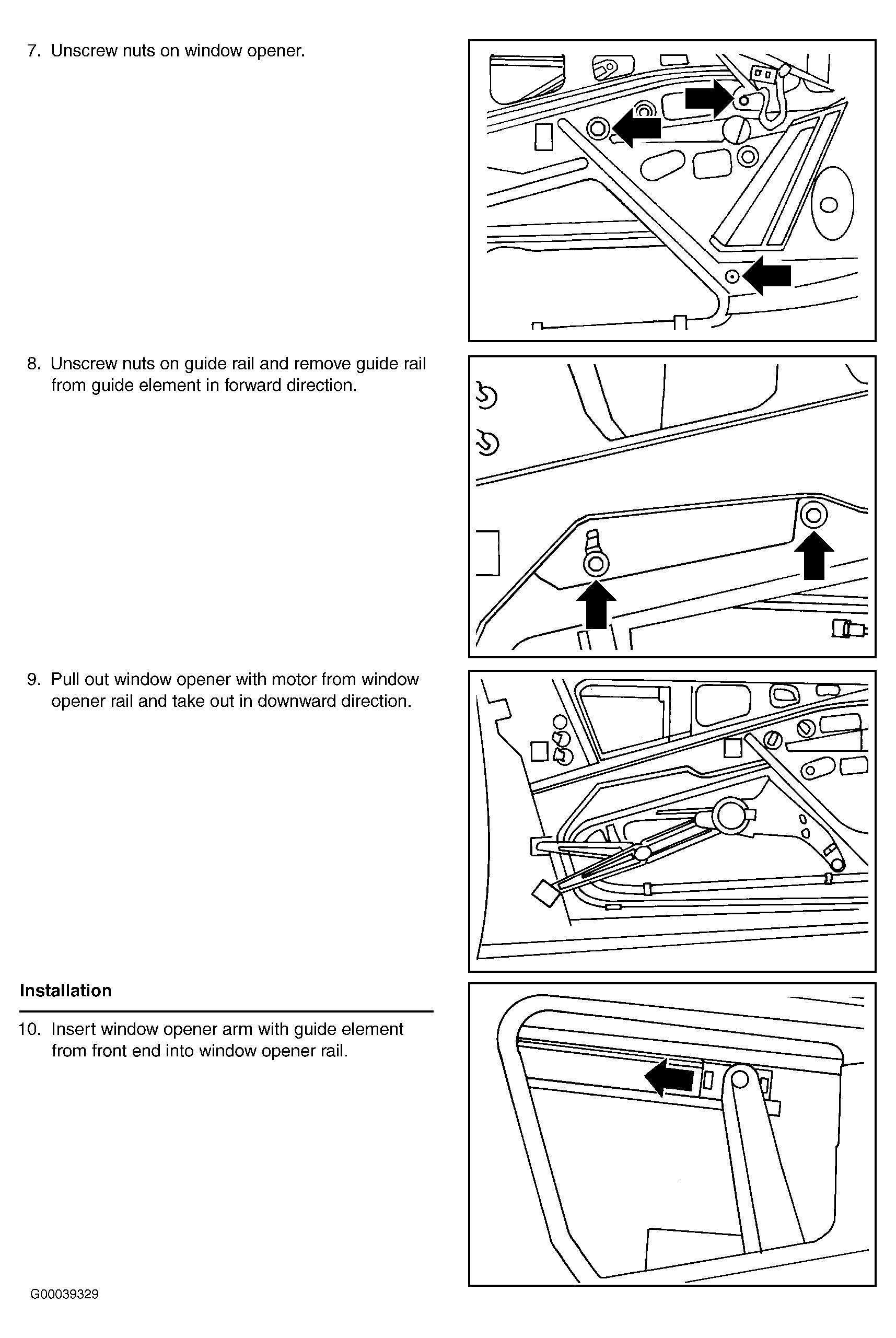

Fig 2: Removal & Installation Of Driver's Side Power Window - Steps 7-10 (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

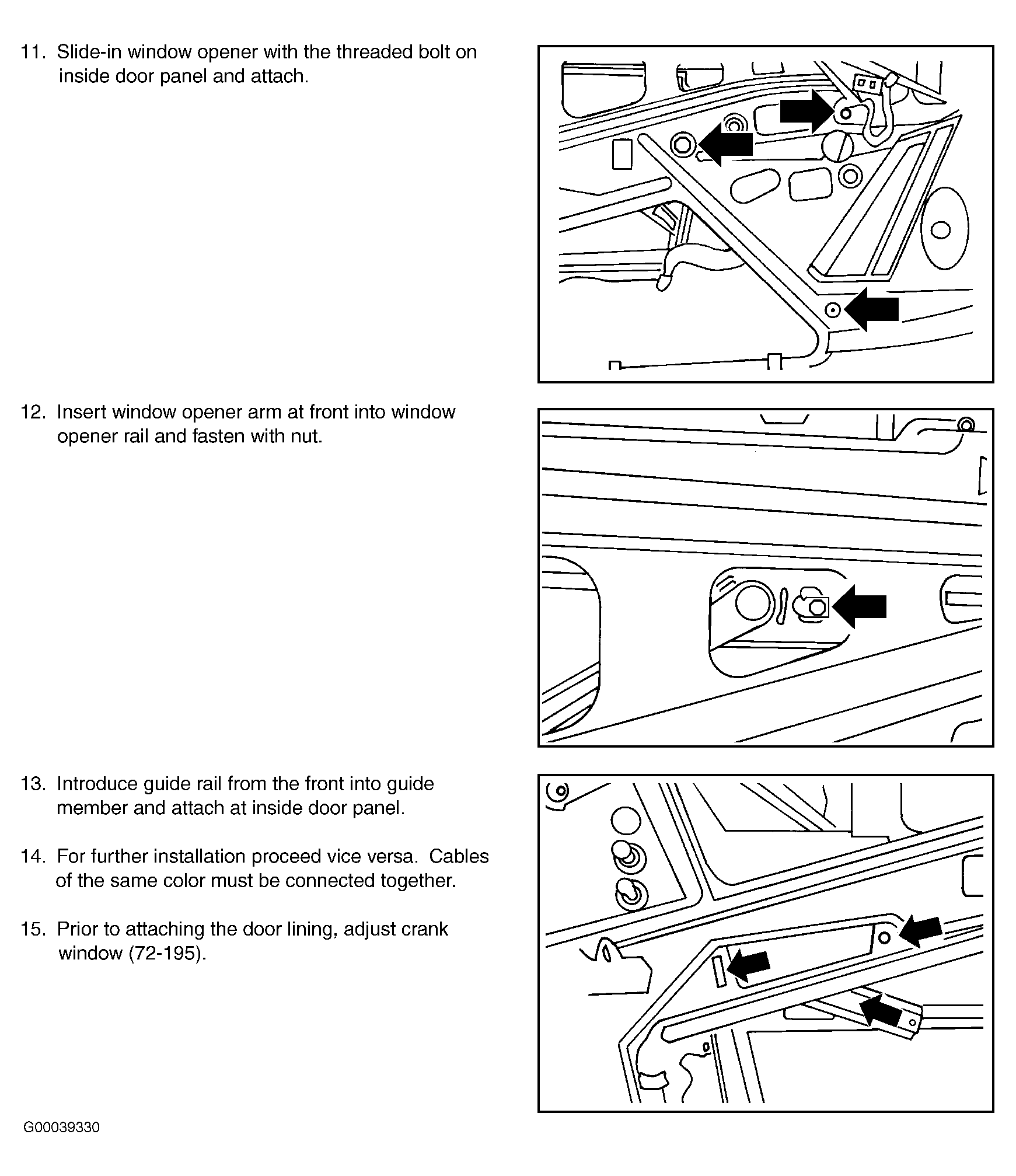

Fig 3: Removal & Installation Of Driver's Side Power Window - Steps 11-15 (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
