Auto. Trans. Shift Interlock Inspection/Adjustment (27/13A)

Publication date: 1989-12-01
Reference number: 27/13A

AUTO. TRANS. SHIFT INTERLOCK INSPECTION/ADJUSTMENT

AUTO. TRANS. SHIFT INTERLOCK INSPECTION/ADJUSTMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 27/13A, Date of Issue:  February 1989

PRE DELIVERY INSPECTION FOR VEHICLES WITH AUTOMATIC TRANSMISSION SHIFT INTERLOCK - MODEL 124.030

Model(s): 1989-on Mercedes-Benz 300 E

Group: 27 - Automatic Transmission

Bulletin No.: MBNA 27/13a

Date: February 1989

NOTE: This bulletin supersedes Service Information No. MBNA 27/13.

SERVICE INFORMATION

As of January 1989 production, a shift interlock is installed which will prevent the selector lever from being moved out of position "P" without depressing the brake pedal first.

During the pre-delivery inspection, the shift interlock must be checked for proper functioning and any adjustments necessary must be performed at this time.

EFFECTIVE SERIAL NUMBER

Model Chassis End Number Intermittent Phase In All Vehicles
124.030 A 916 048 - A 923 305 A 923 306

PROCEDURE

  1. Try to move the selector lever out of position "P" without depressing the brake pedal. If selector lever cannot be moved, continue with step 13. If lever can be moved enough to shift the transmission out of its parking lock, continue with step 2. If lever can be shifted into all positions, continue with step 4.
  2. First ensure that there is no problem with the basic shift linkage adjustment. Check control rod, adjust if necessary (job no. 27-120).
  3. Repeat step 1.
  4. Remove cover under left side instrument panel.
  5. Insert checking pin, 901 589 02 21 00, through holes in retainer and activating lever (arrow, Fig. Fig 2 ).
  6. Roller (60) must touch the brake pedal but must not exert pressure on it. If necessary, loosen nut (59) and tighten it again to 4.5 N.m torque.
  7. Remove checking pin.
  8. Remove wooden console cover.
  9. Place selector lever in position "P".
  10. The rocker arm (44) should sit against notch of cam (48). If free play exists, adjust Bowden cable (40). Loosen screw (42), pull Bowden cable (40) in direction of arrow until the rocker arm (44) sits against notch of cam. Torque screw, (42) to 5 N.m. (Fig. Fig 3 ).
  11. Repeat step 1.
  12. Reinstall wooden console cover and cover under left side instrument panel.
  13. Depress brake pedal approximately 15 mm (5/8") or more. The selector lever should now move freely.

SPECIAL TOOL INFORMATION

SPECIAL TOOL INFORMATION

Qty. Part Name Part Number Group/Category
1 Checking pin 901 589 02 21 00 26/A

IN CASE OF WARRANTY

TIME ALLOWANCE INFORMATION

Operation Number Description Time Model
27-0343 Shift interlock Bowden cable, adjust 0.9 hrs. 82
DAMAGE CODE INFORMATION

Code Description
27662 07 Bowden cable, shift interlock, broken/snapped
27662 38 Bowden cable, shift interlock, loose (mounting clamp)
27662 51 Bowden cable, shift interlock, incorrect adjustment

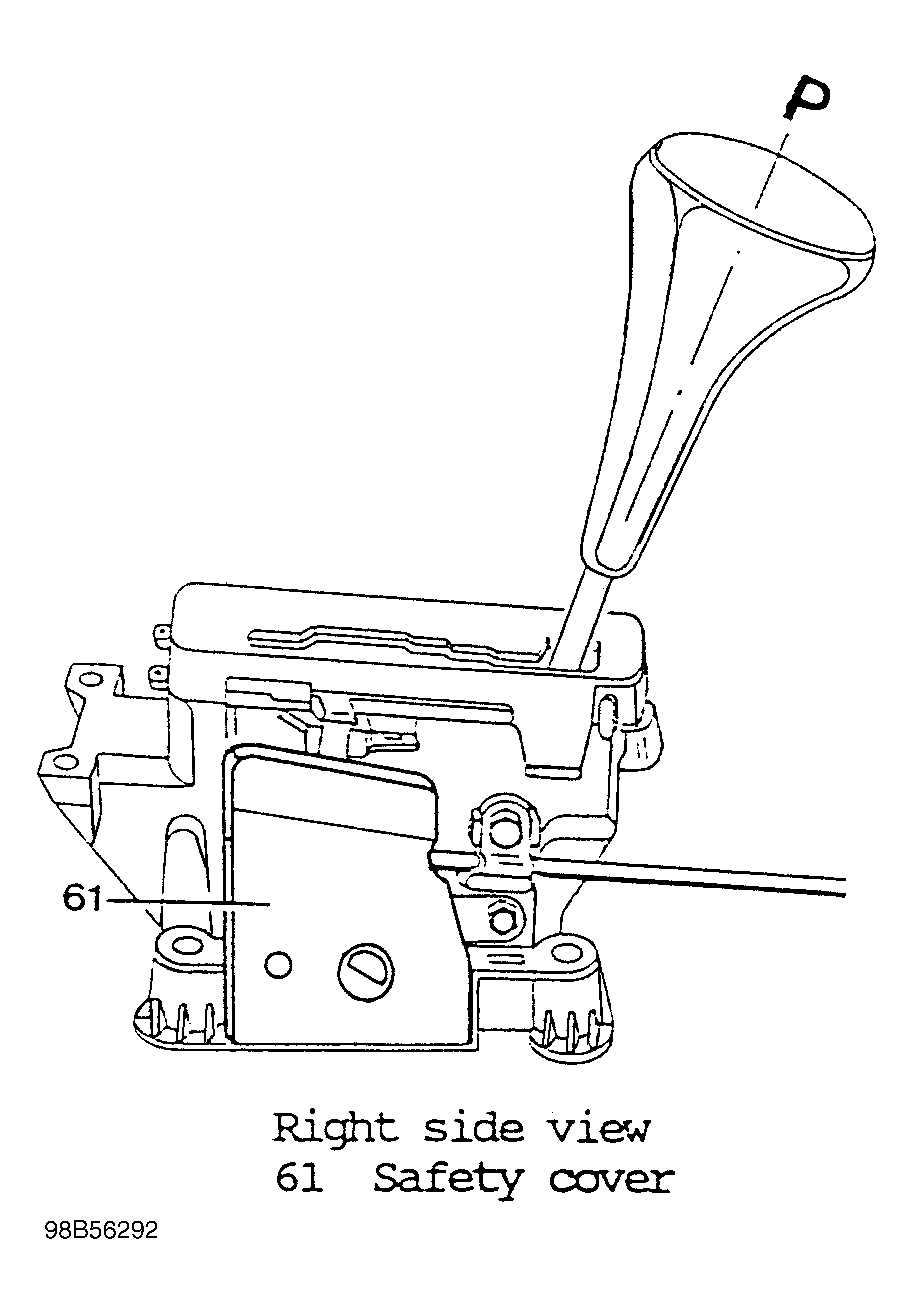

Fig 1: Gear Selector Lever - Right Side View
G98B56292

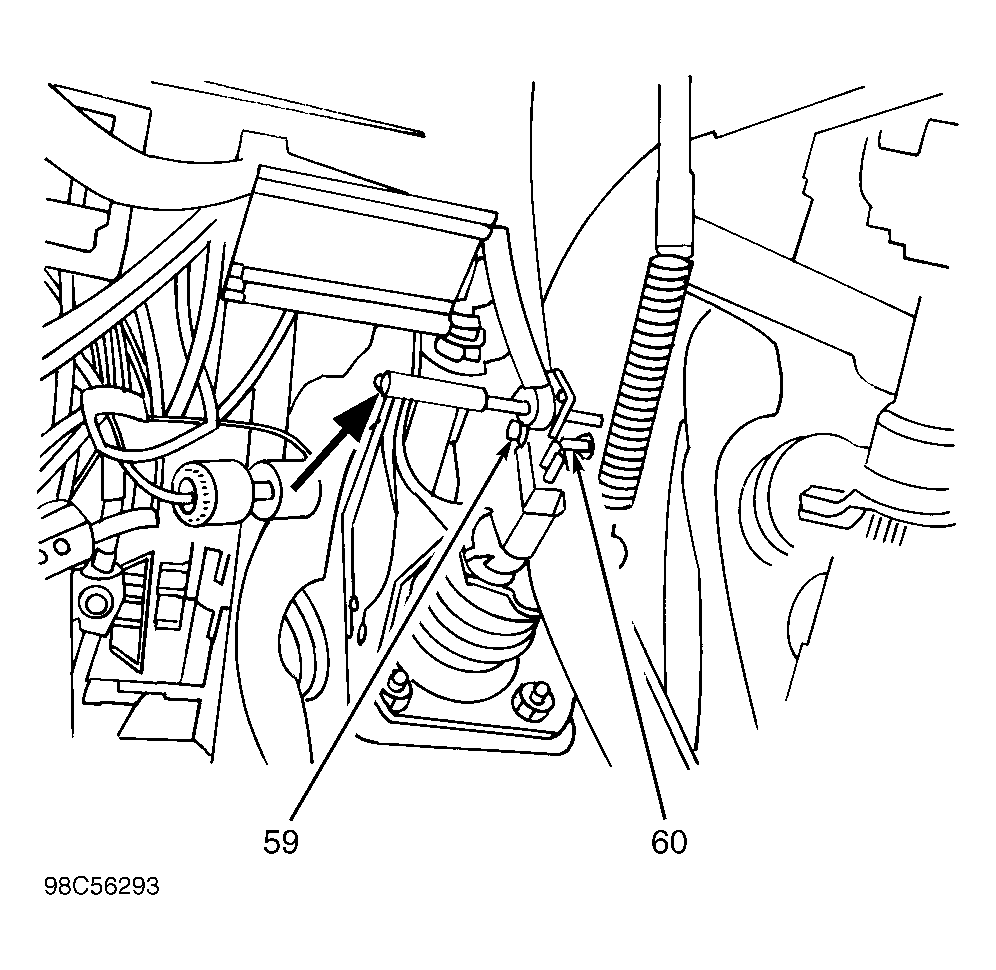

Fig 2: Checking Pin Inserted Through Retainer & Activating Lever
G98C56293

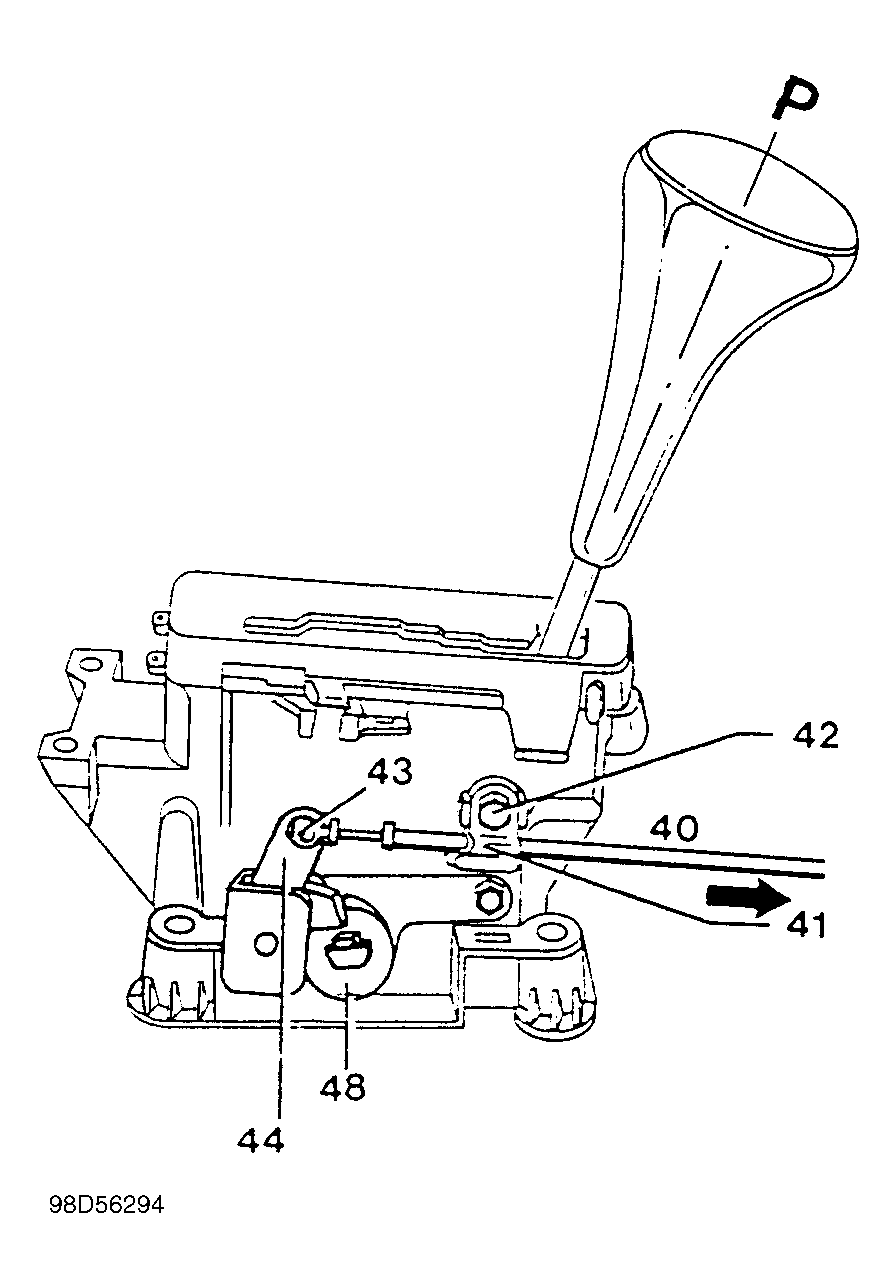

Fig 3: Adjusting Bowden Cable
G98D56294
