Checking Pneumatic Pipe For Leaks

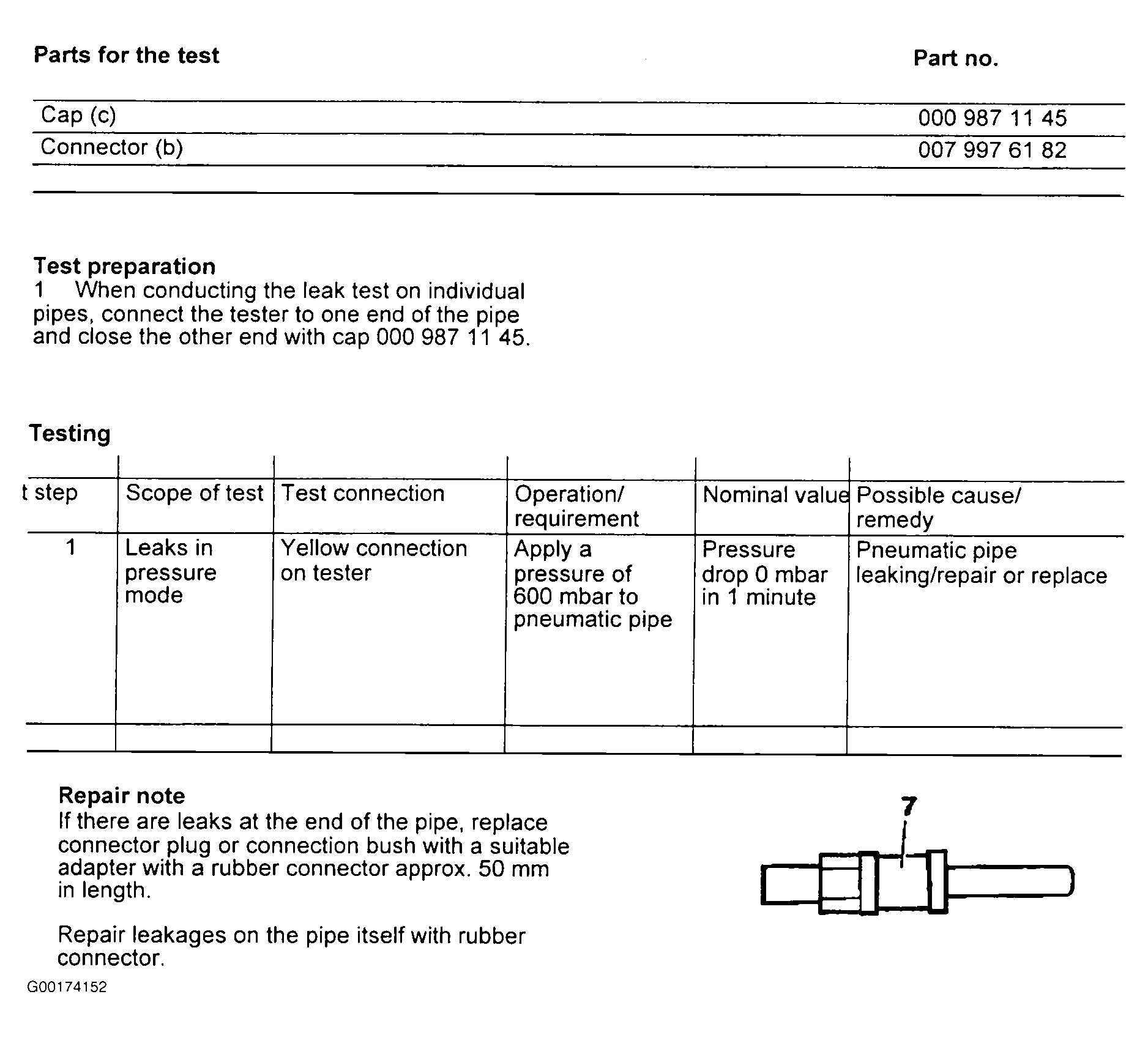

Fig 1: Checking Pneumatic Pipe For Leaks (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

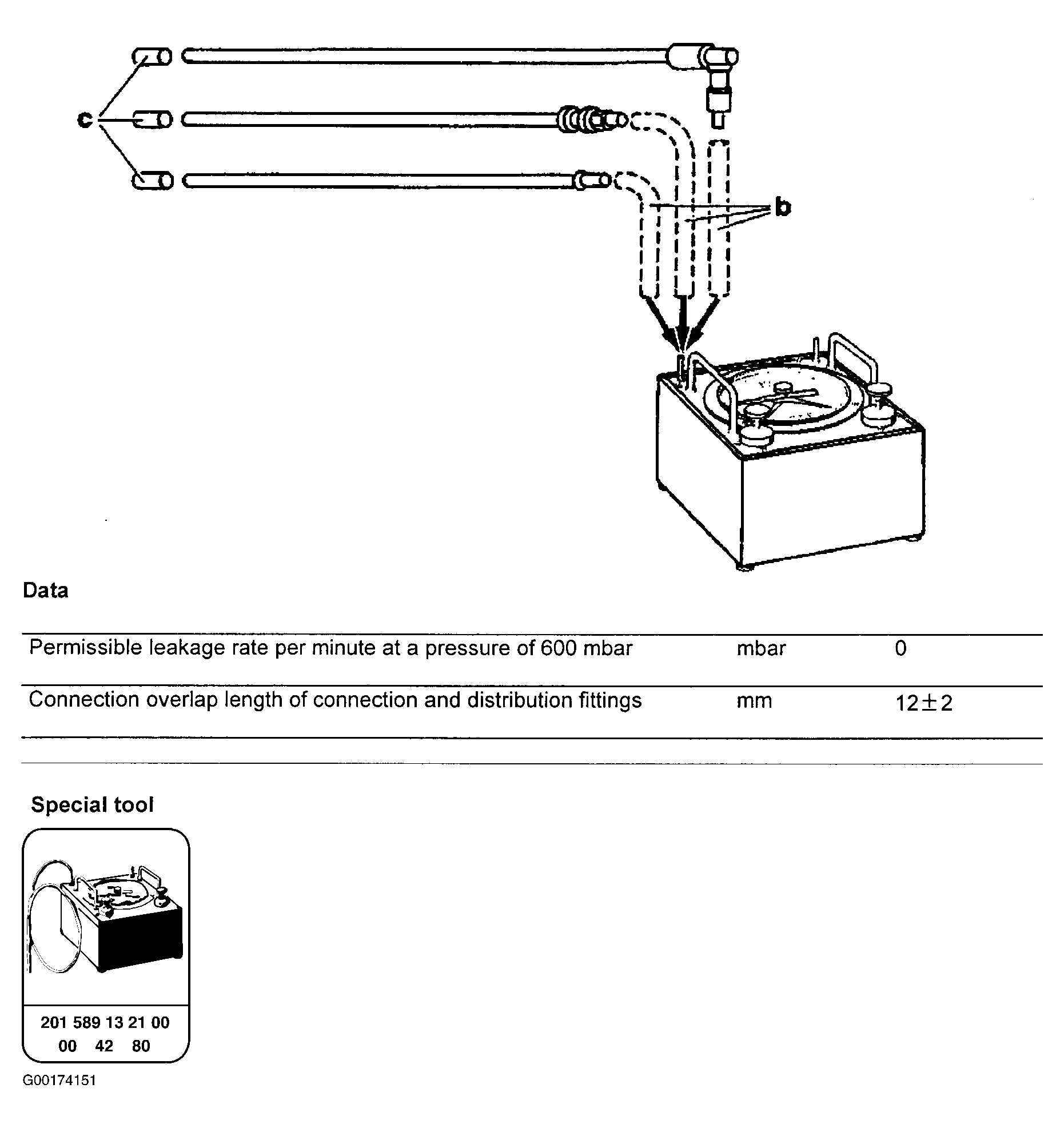

Fig 2: Checking Pneumatic Pipe For Leaks (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
