Checking Pneumatic Function Of Supply Pump

NOTE: Pressure of 420 mbar is equivalent to 6.1 psi.

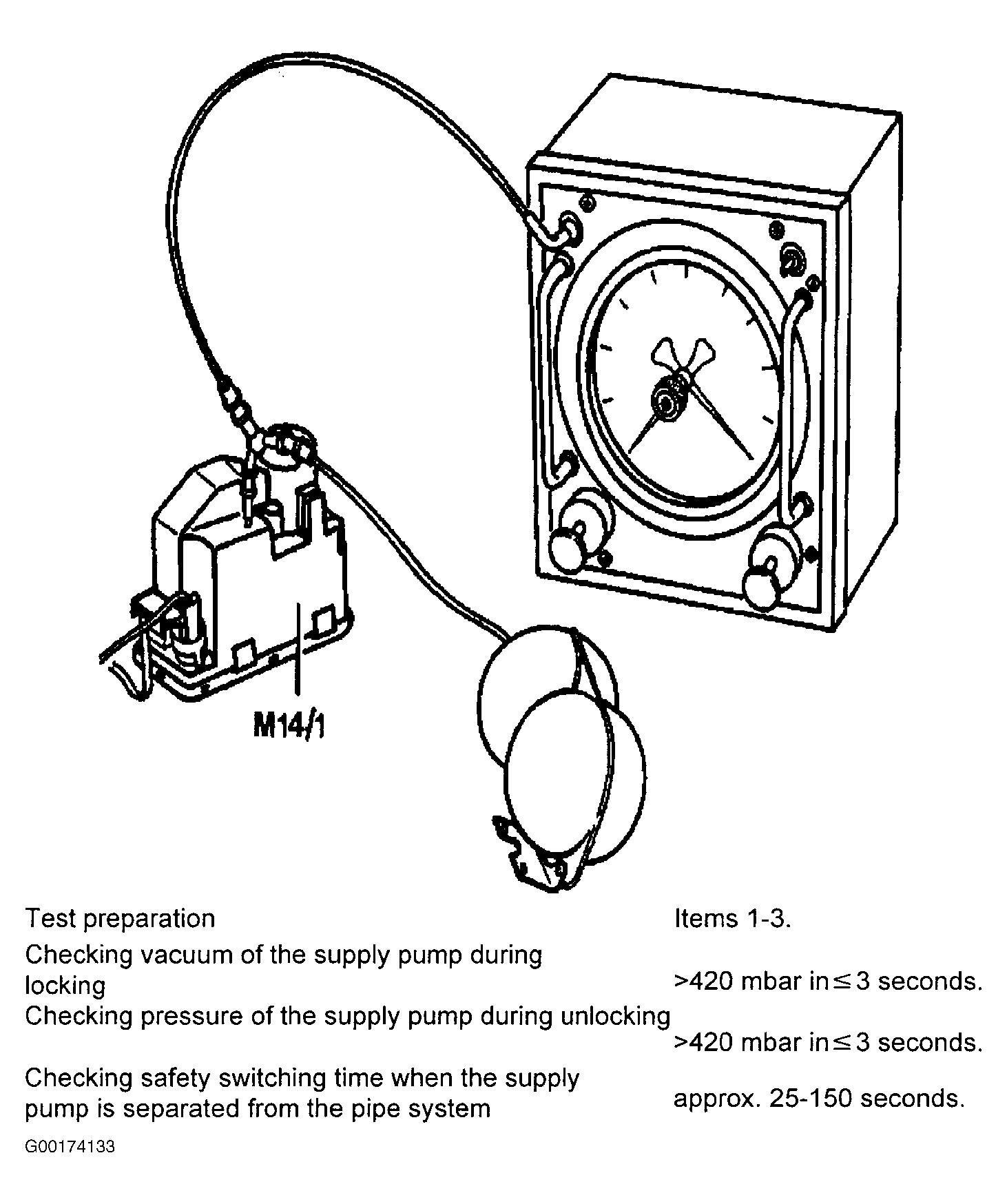

Fig 1: Checking Pneumatic Function Of Supply Pump (1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

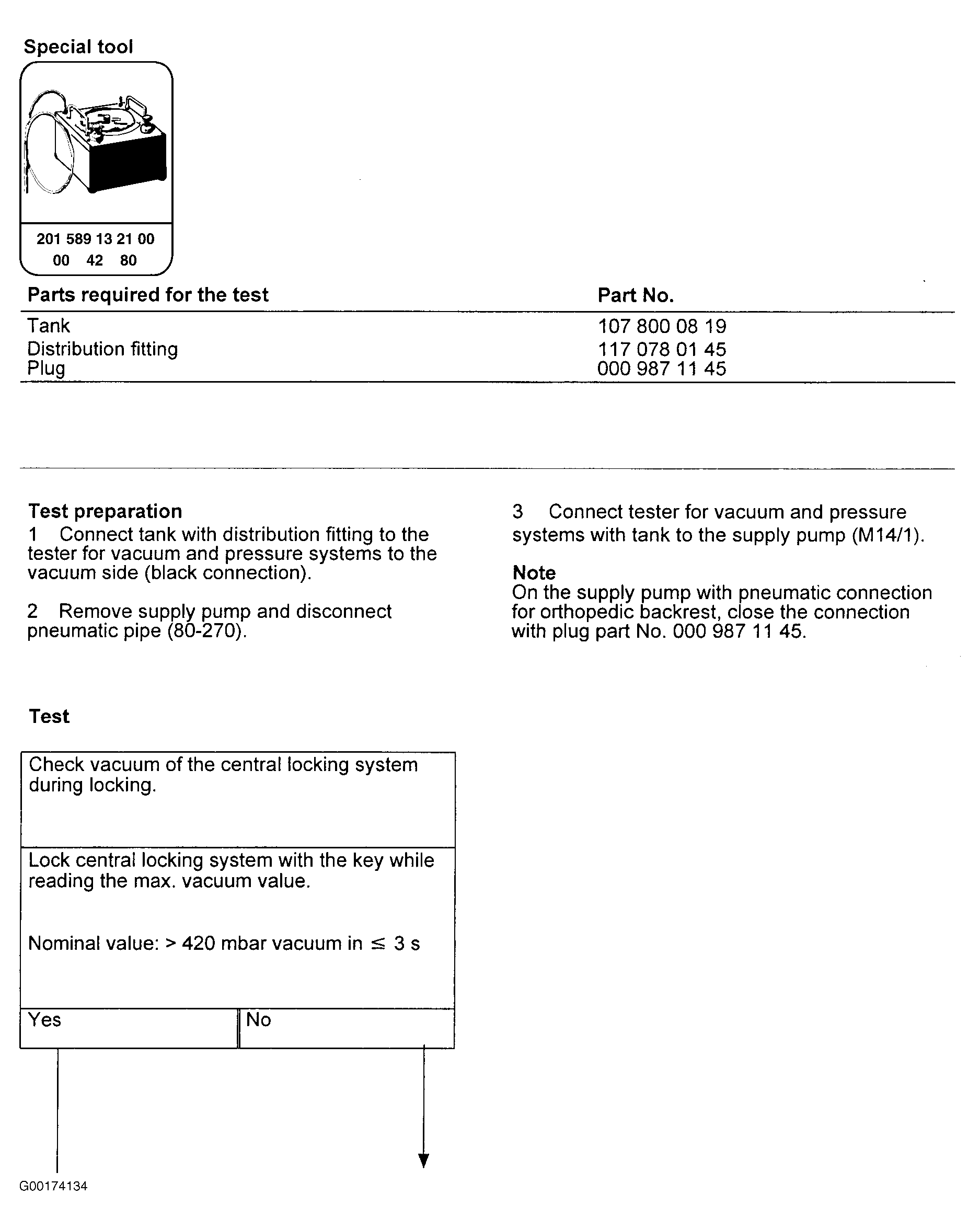

Fig 2: Checking Pneumatic Function Of Supply Pump (2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

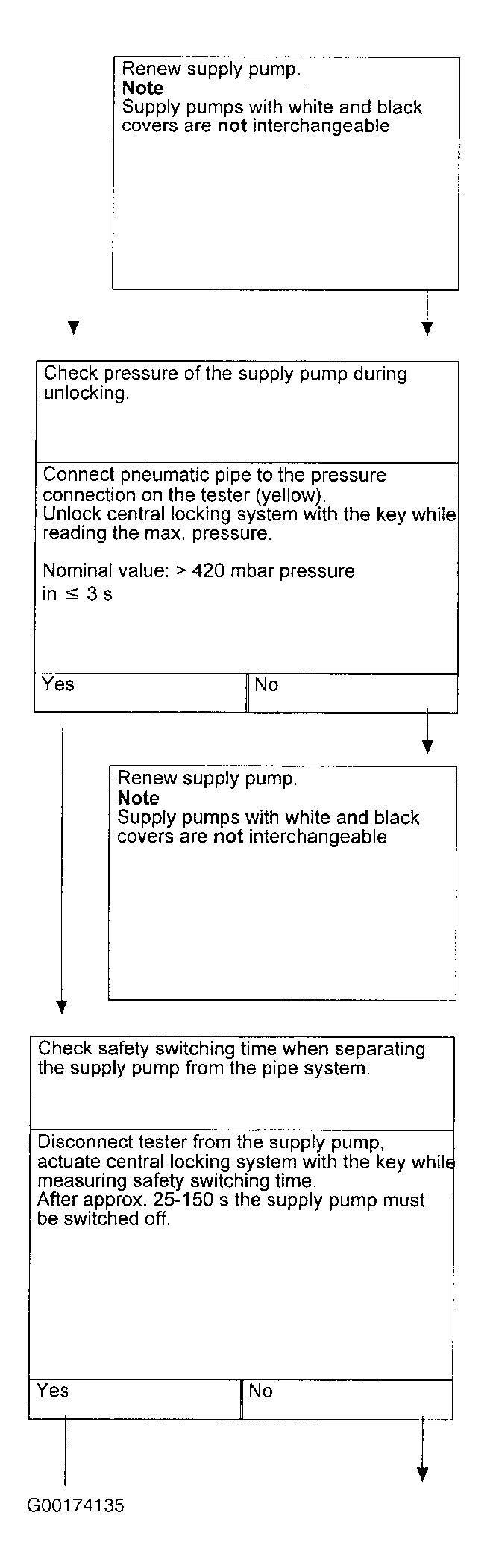

Fig 3: Checking Pneumatic Function Of Supply Pump (3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

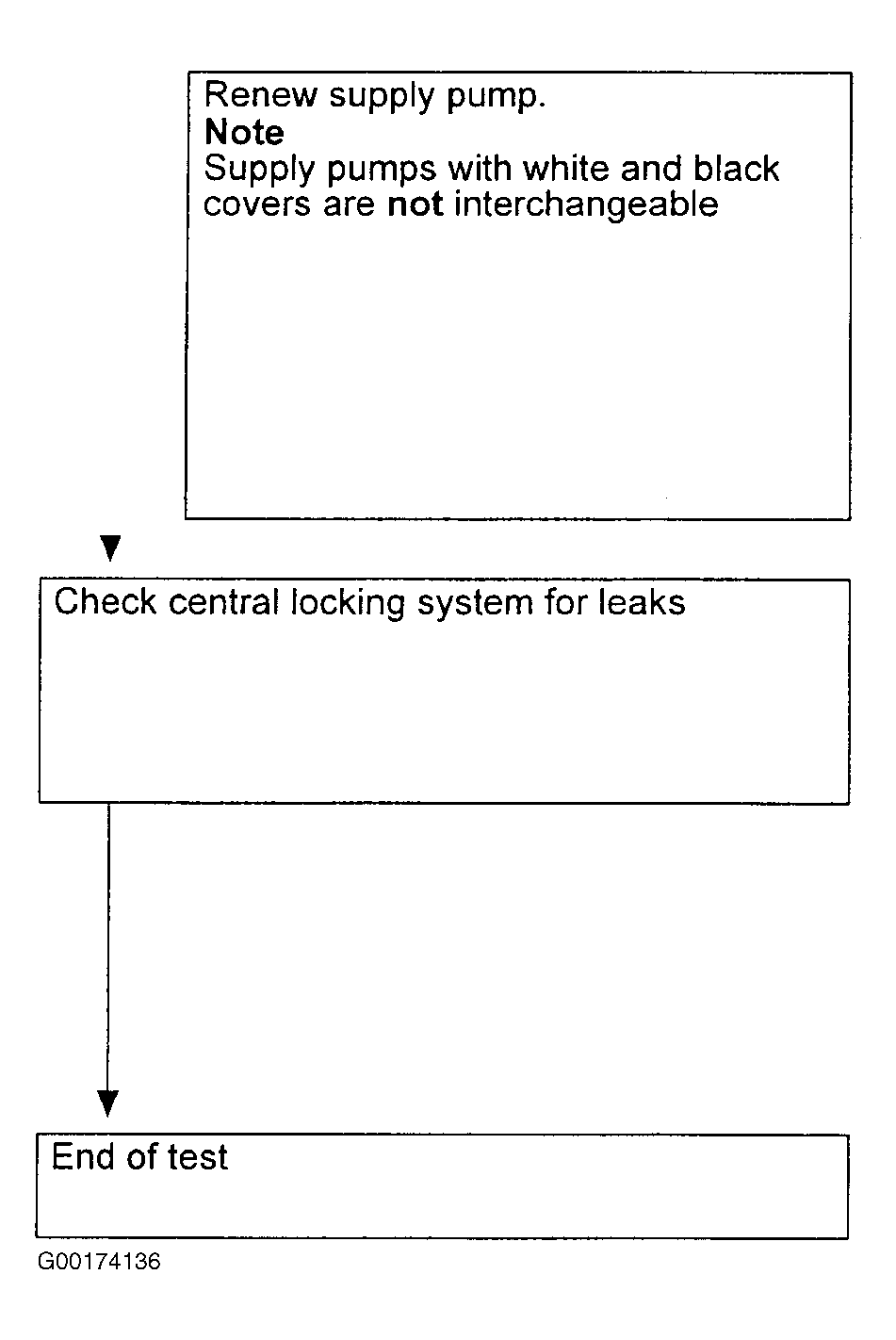

Fig 4: Checking Pneumatic Function Of Supply Pump (4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
