Checking Electrical Function Of Actuator

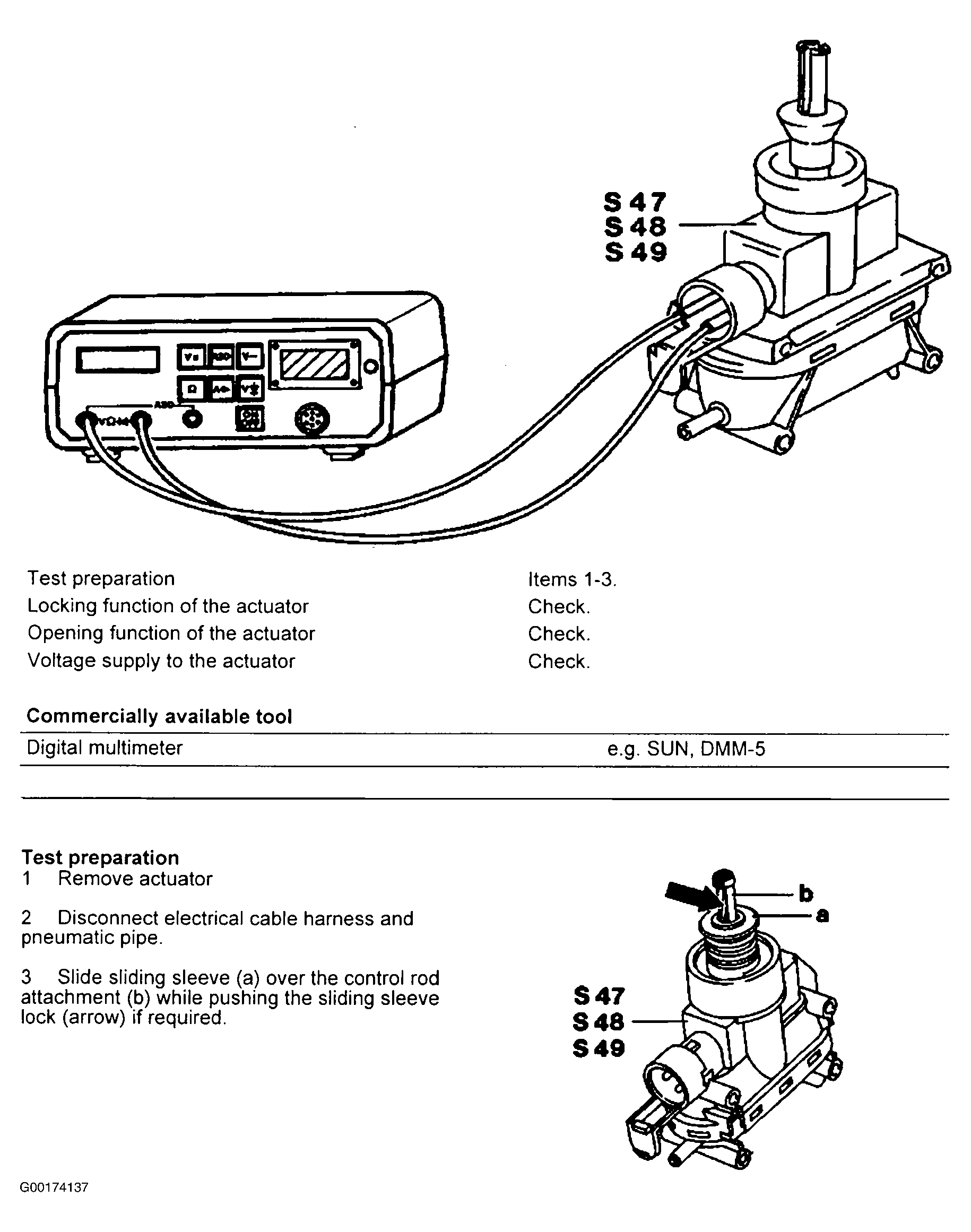

Fig 1: Checking Electrical Function Of Actuator (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

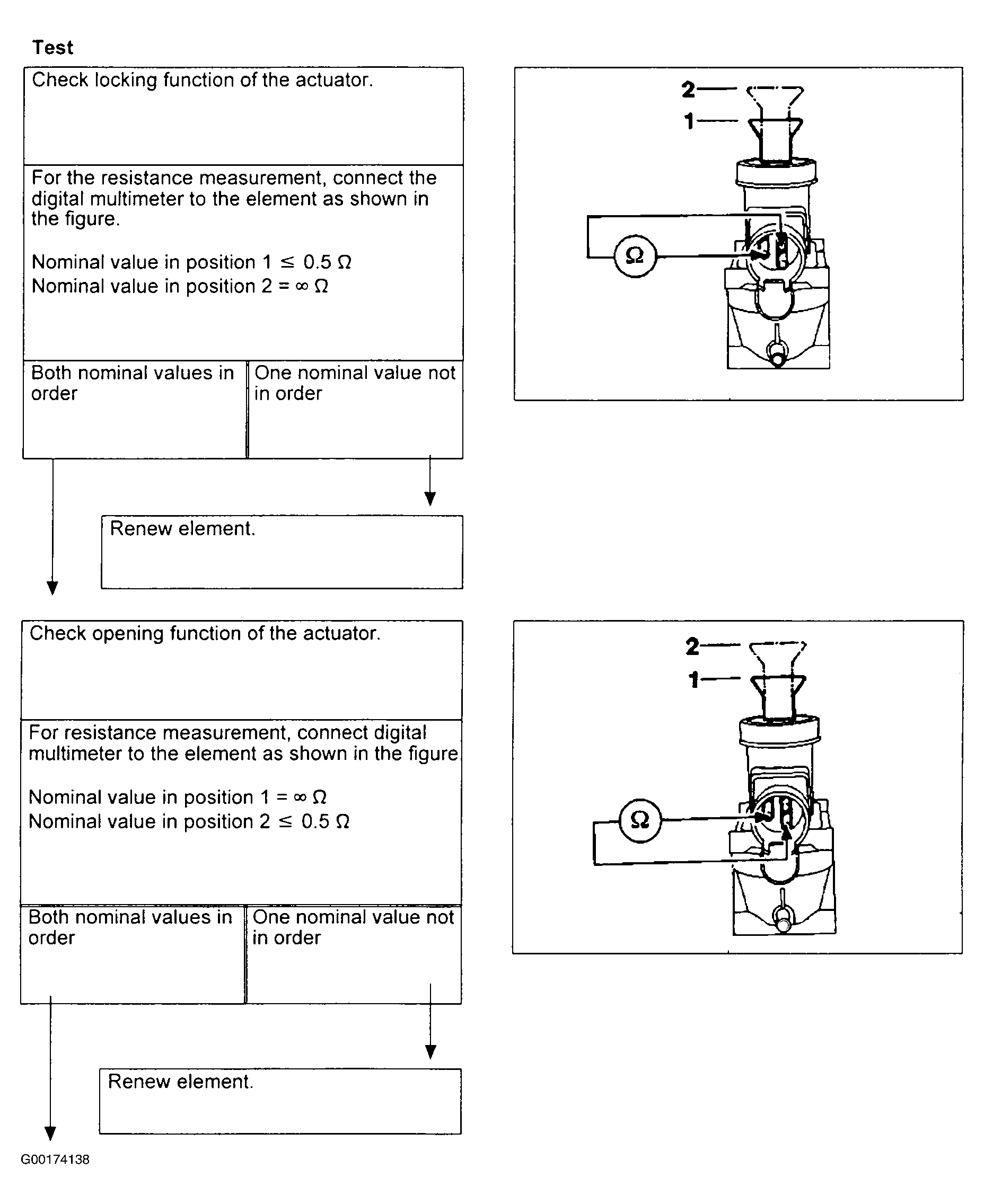

Fig 2: Checking Electrical Function Of Actuator (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

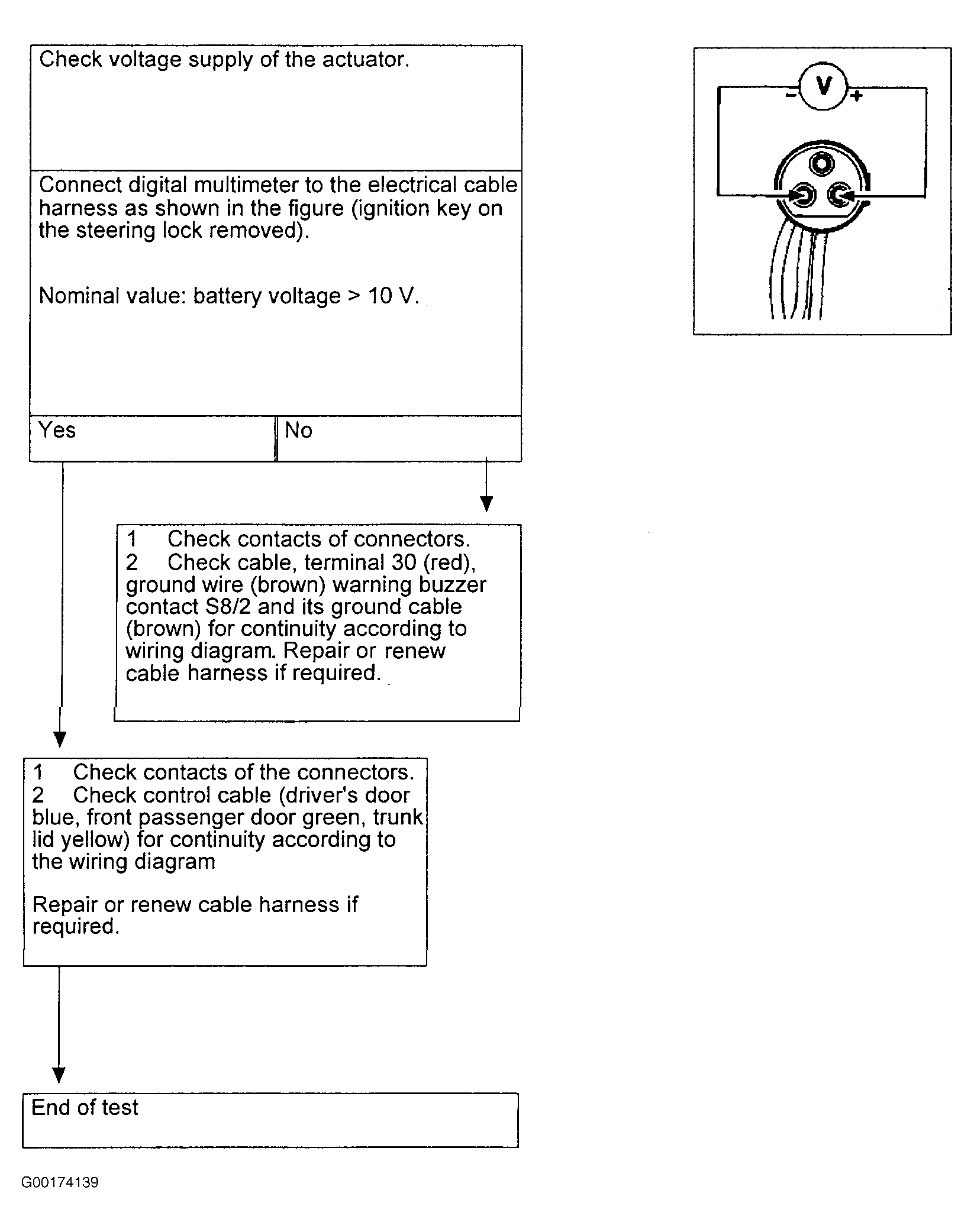

Fig 3: Checking Electrical Function Of Actuator (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
