Component Locations

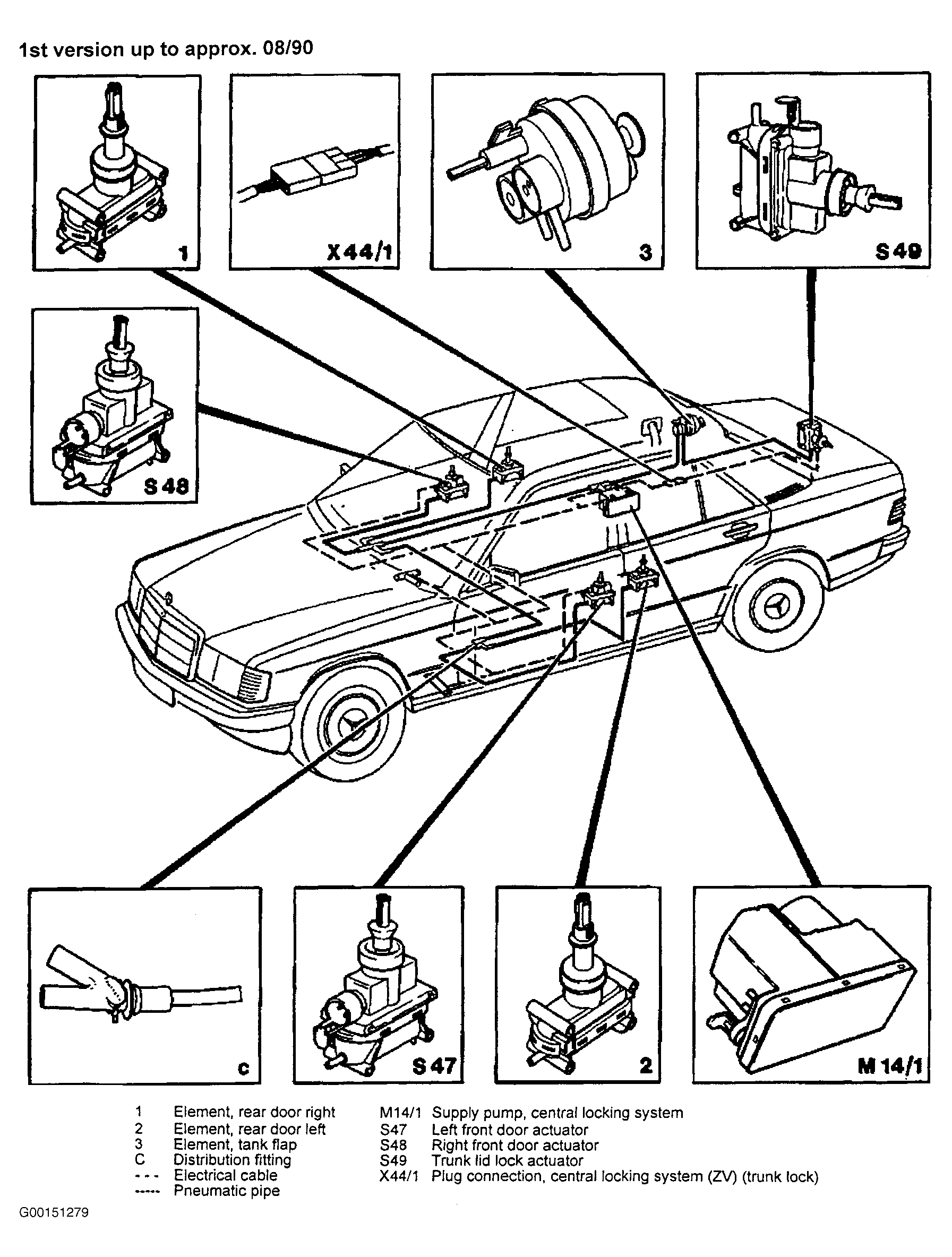

Fig 1: Locating Central Locking System Components (1st Version Up To Approx. 8/90)
G00151279Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

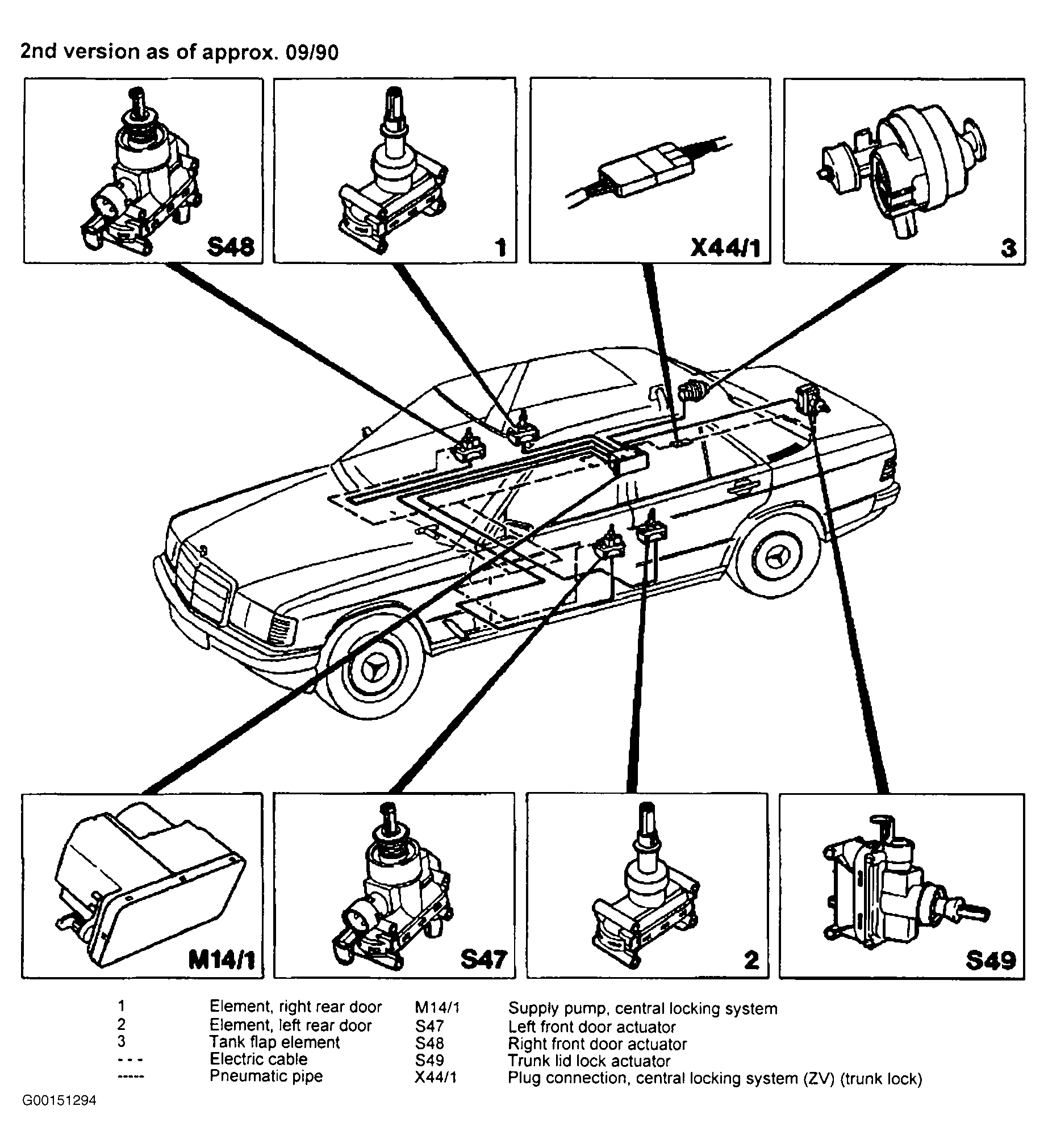

Fig 2: Locating Central Locking System Components (2nd Version As Of Approx. 9/90)
G00151294Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

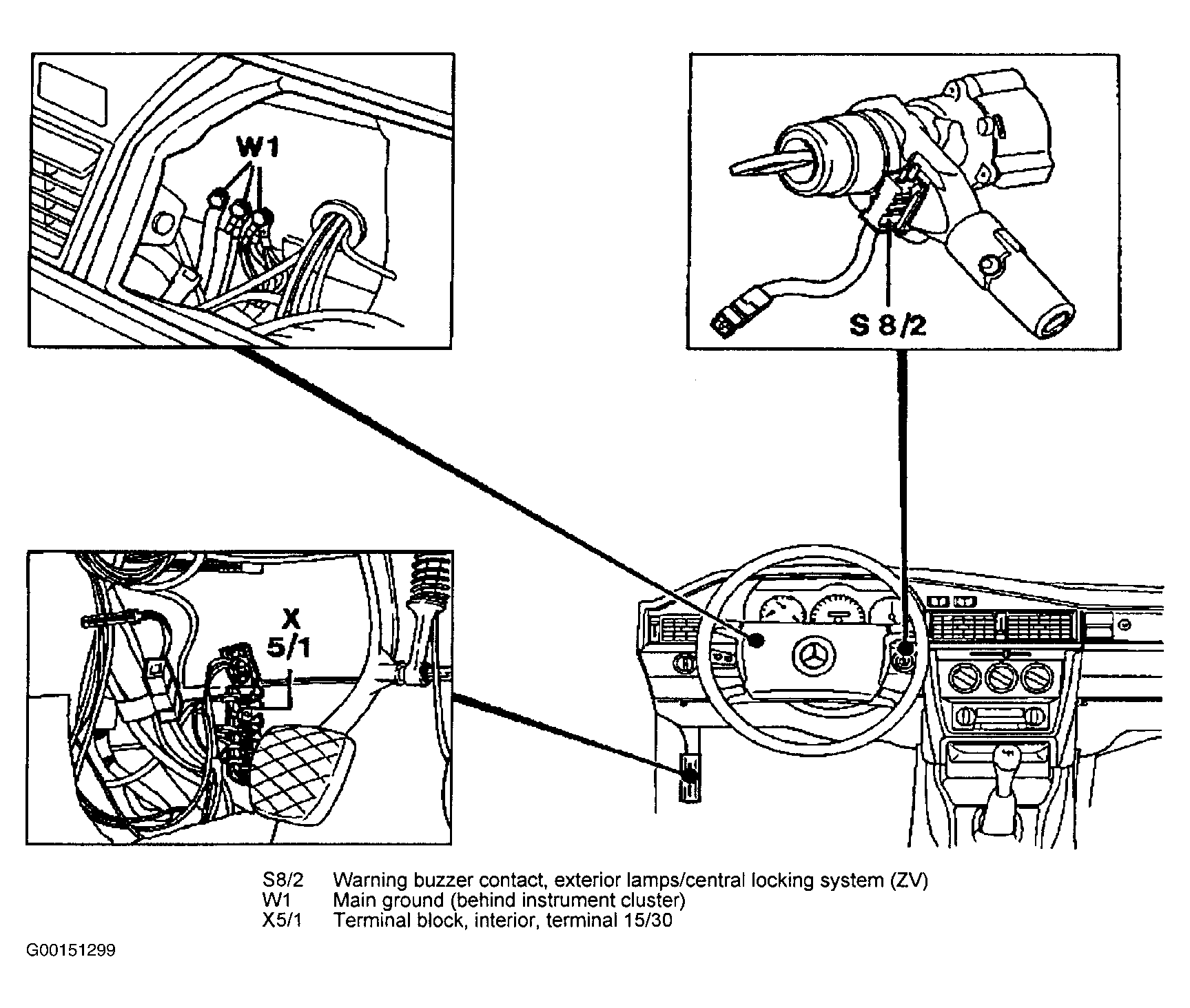

Fig 3: Locating Central Locking System Components
G00151299Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
