Testing Throttle Valve Switch

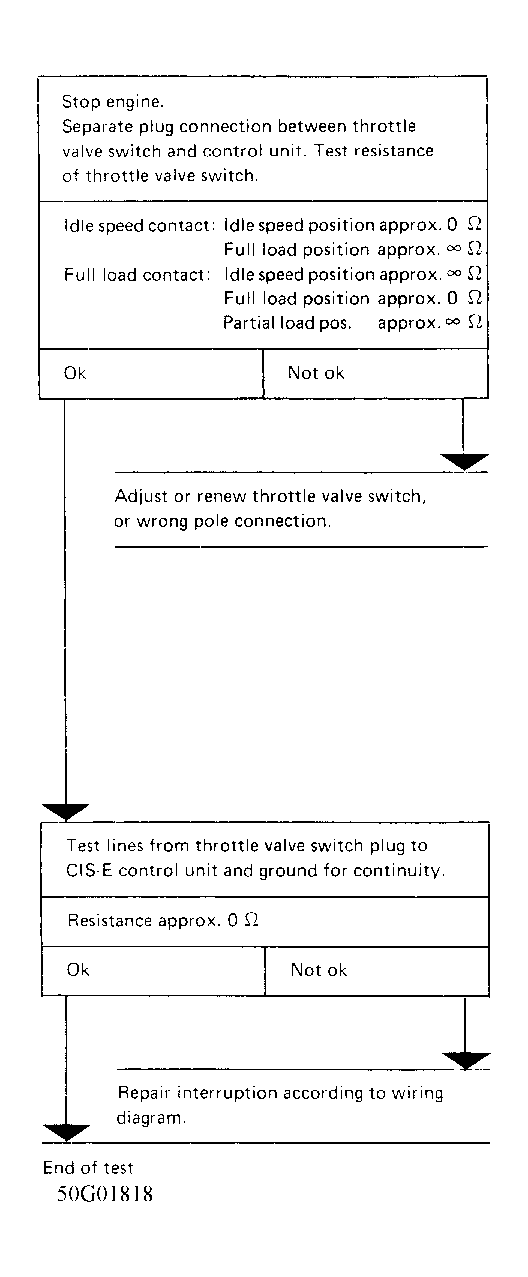

Fig 1: Testing Throttle Valve Switch, Flow Chart
G50G01818Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Testing Throttle Valve Switch, Schematic
G50A01981Courtesy of MERCEDES-BENZ OF NORTH AMERICA
