Mercedes Benz
>>
1988
>>
560SEL
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Cis-E System
>>
Trouble Shooting Charts
>>
Testing DECEL Shutoff
Testing DECEL Shutoff

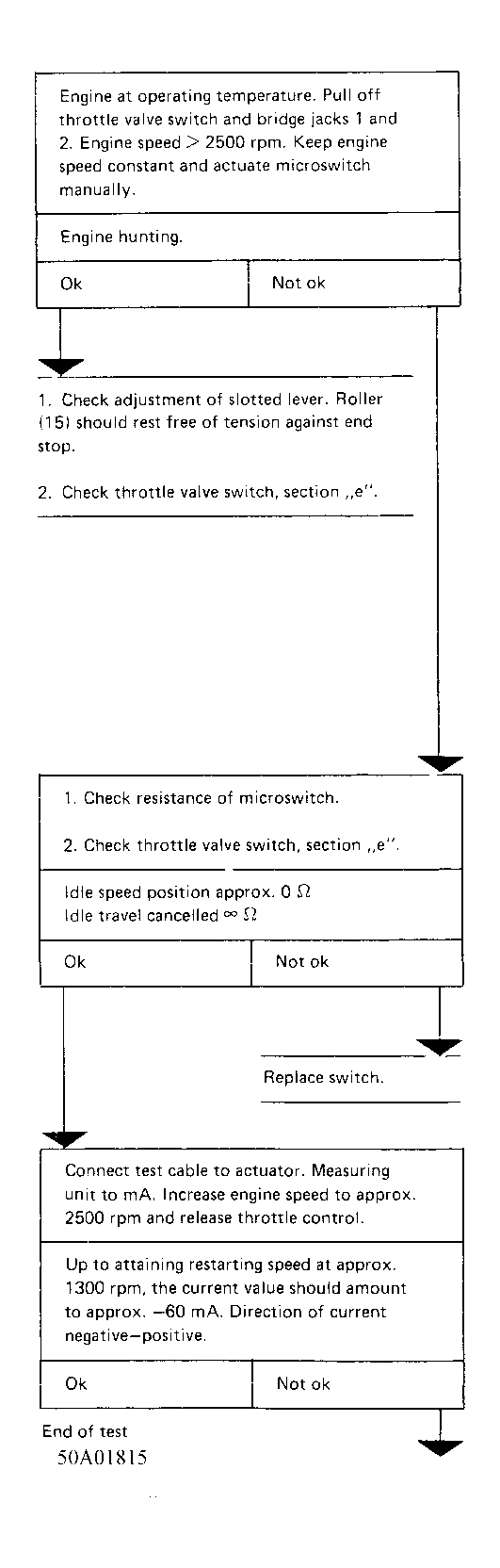

Fig 1: Testing Decel Shutoff (Flow Chart 1 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Testing Decel Shutoff (Flow Chart 2 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 3: Testing Decel Shutoff, ECU Connector Id
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
