Windshield Wiper Motor

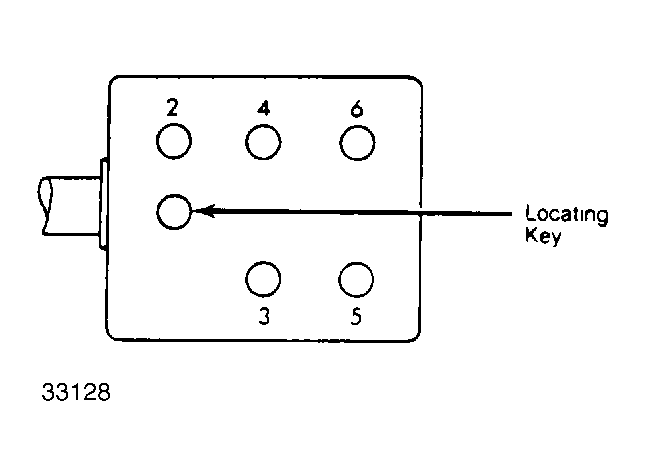

Connect positive battery voltage to connector pin No. 3 and ground pin No. 6. Test low speed by connecting an additional positive cable to pin No. 2. Test high speed by connecting cable to pin No. 4. Test intermittent operation by connecting cable to pin No. 5. See Fig 1 .
