Removal & Installation: Installation

1. Replace gasket, reinstall fuel pump. See Fig 1 .
2. Hook all fuel lines and return lines to proper fittings, and be sure they are tight to avoid air and/or fuel leaks.
3. Route fuel lines so they will not vibrate or rub against other body parts. Test system for leaks with engine running.
4. Replace oil lost during removal.

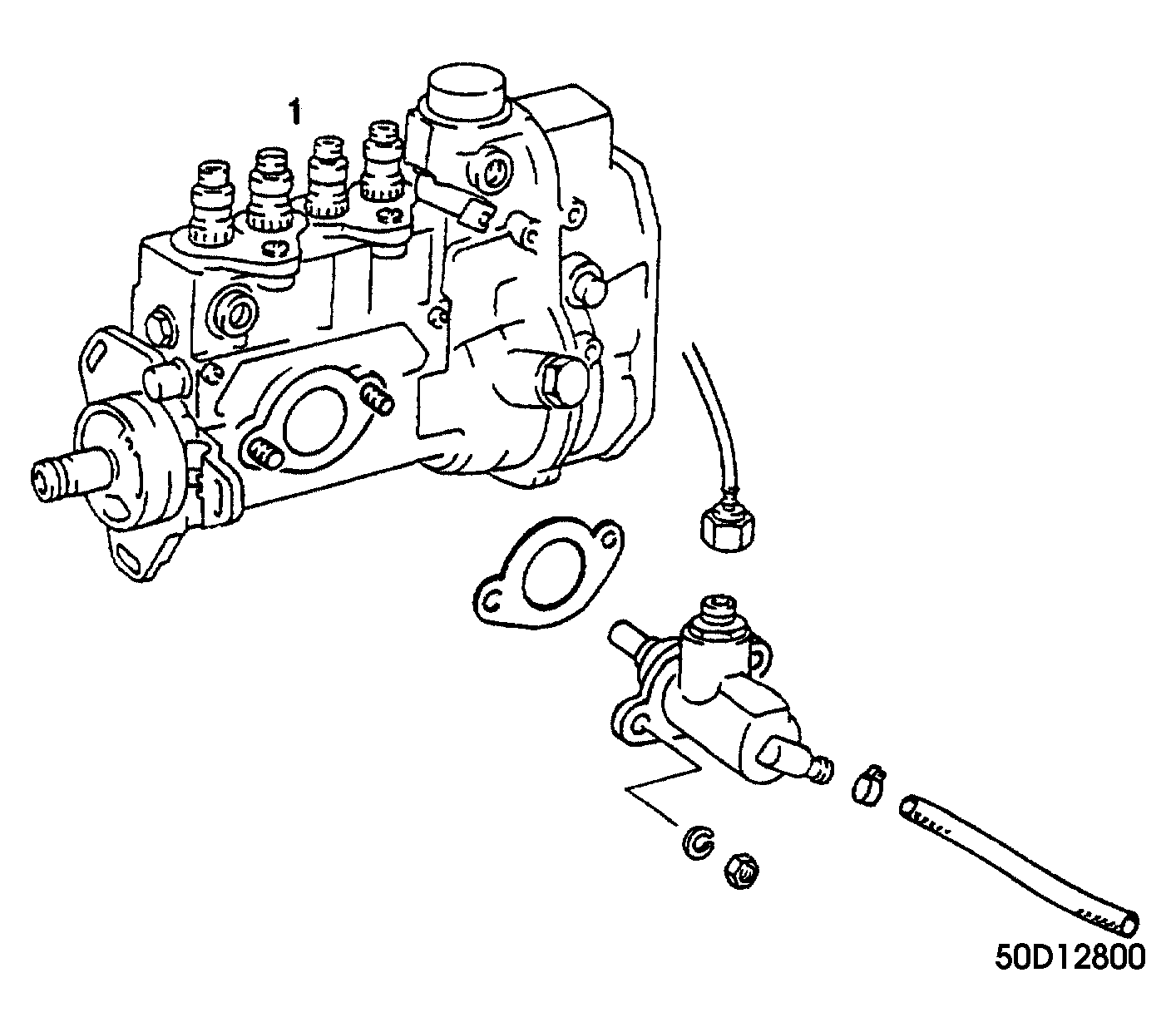

Fig 1: Removal Of Fuel Pump From Injection Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
