Tune-Up - V8: Adjustments: Distributor

All models are equipped with a Bosch breakerless transistorized distributor. No regular maintenance or adjustments are necessary.

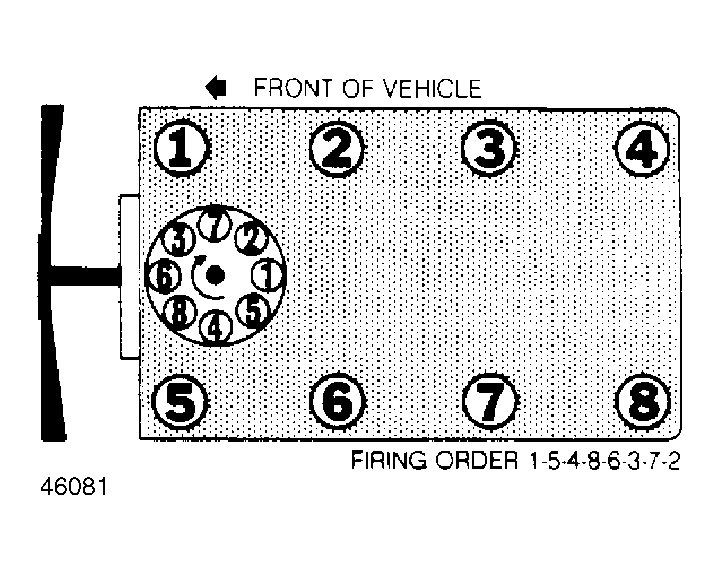

Fig 1: Firing Order & Distributor Rotation
G46081
