Fuel Injection System - BOSCH Cis-E: Wiring Diagram

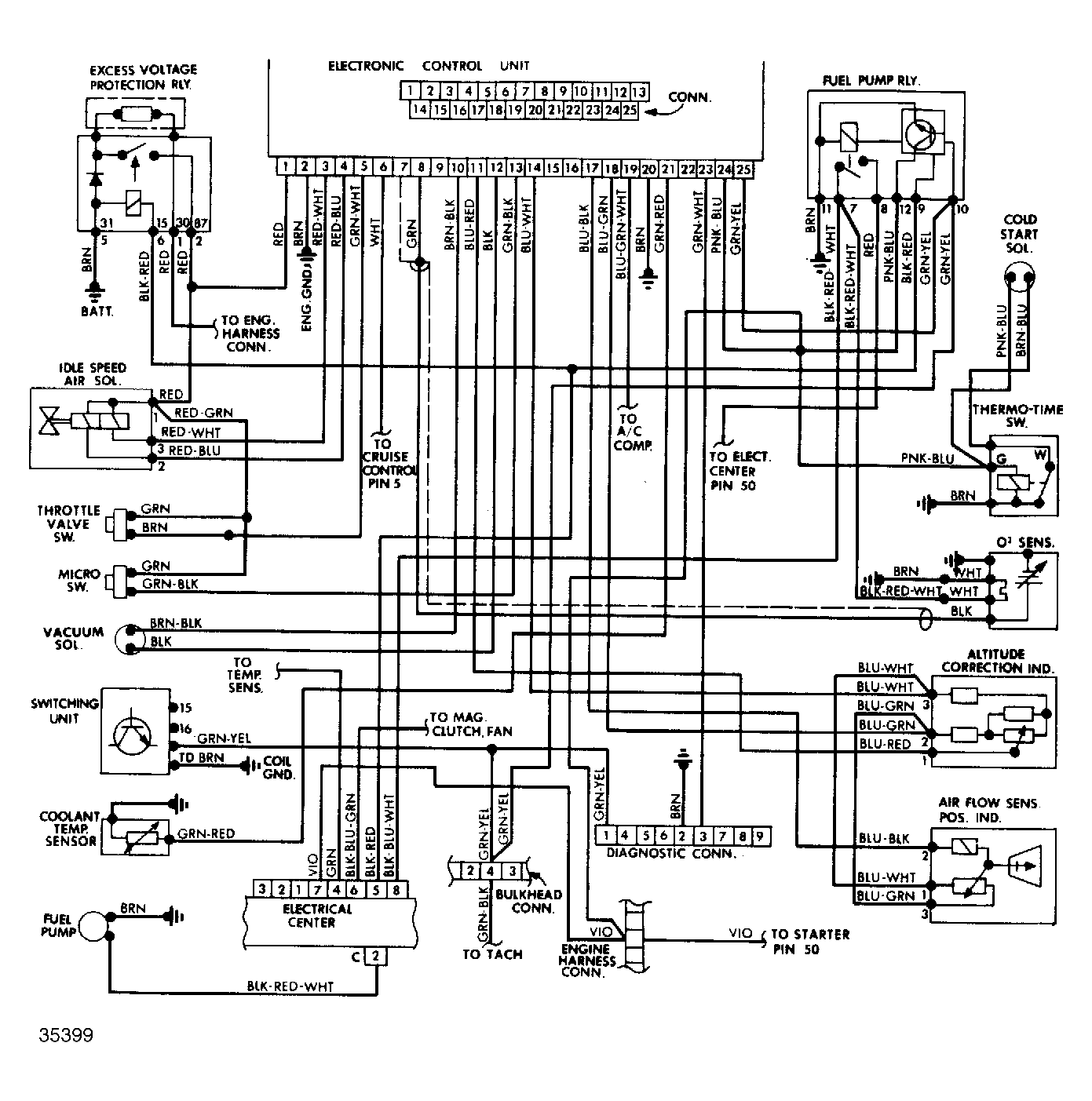

Fig 1: Mercedes-Benz 190E CIS-E Wiring Diagram

G35399
