MODIFIED RADIATOR & CONDENSER

TECHNICAL SERVICE BULLETIN

Reference Number(s): 20/21, Date of Issue: March 1983

MODIFIED RADIATOR

Model(s): 380 SEL/SEC

Group: Engine Cooling

Bulletin No.: 20/21

Date: March 1983

SERVICE INFORMATION

As of late May 1982 production on model 380 SEL and early August 1982 production on model 380 SEC, radiators with a core thickness of 42 mm (previously 34 mm) have been installed. In addition, a modified condenser is also installed in model 380 SEC, due to space limitations with the new radiator (see Fig 1 and Fig 2 , arrows).

PRODUCTION PHASE IN

MODEL	AS OF CHASSIS END NO.
380 SEL	031420
380 SEC	003564

The modified radiator can also be installed in vehicles with lower chassis end numbers.

NOTE: On model 380 SEC, the modified radiator must be installed together with the modified condenser.

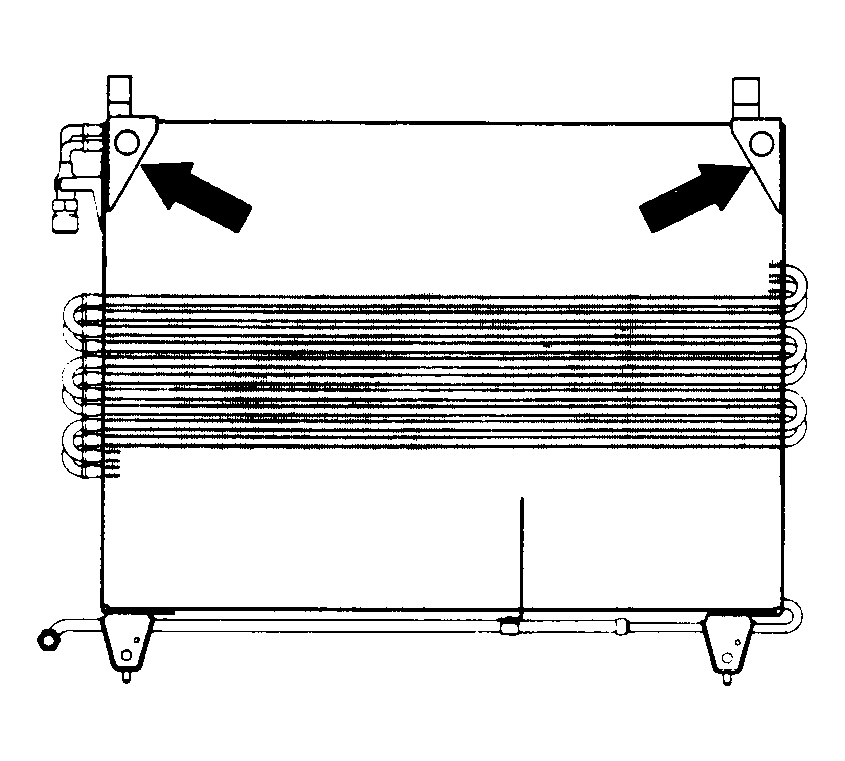

Fig 1: Previous Condensers (Model 380 SEC)

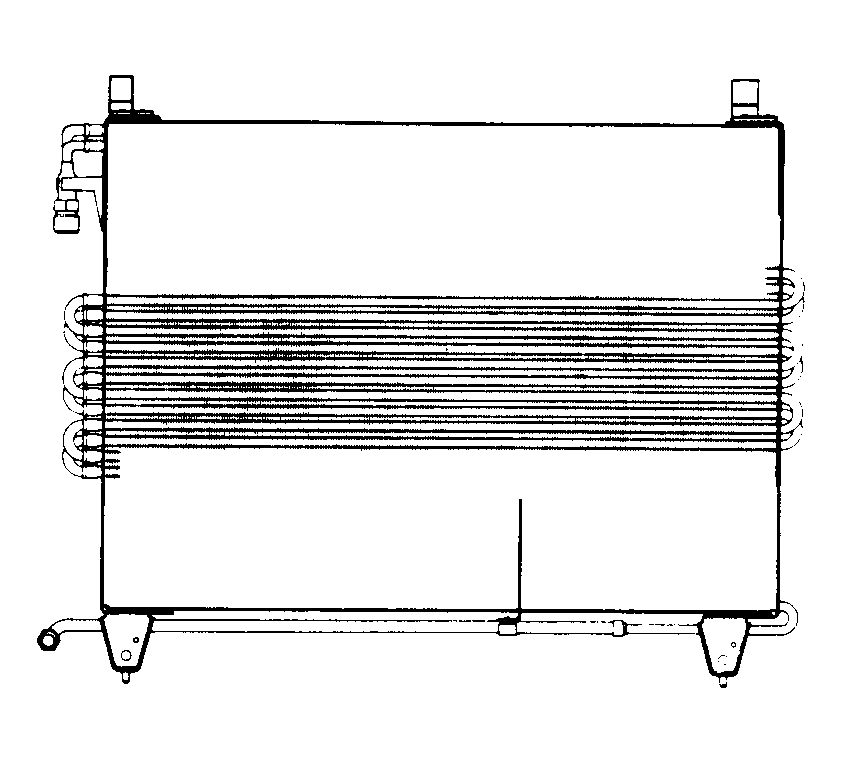

Fig 2: Modified Condensers (Model 380 SEC)

PARTS INFORMATION

PART NAME	PART NUMBER
Radiator (42 mm core thickness)	126 500 17 03
Condenser (Model 380 SEC only)	126 830 19 70
