3.0L Engine Modified Diesel Injector Nozzle (07.1/34)

Publication date: 1984-12-01
Reference number: 07.1/34

3.0L ENGINE MODIFIED DIESEL INJECTOR NOZZLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 07.1/34, Date of Issue: December, 1984

APPLICATION

Mercedes-Benz 300 D, 300 CD, 300 TD & 300 SD with 617 Engine

SUBJECT

Modified Diesel Injector Nozzle Holder

REFERENCE

Mercedes-Benz of America, Service Information, No. 07.1/34, December, 1984

SERVICE INFORMATION

Beginning production date April, 1984, a modified pintle nozzle holder replaced the previous nozzle holder.

NOTE: Modified design pintle nozzle holder and previous design pintle nozzle holder PARTs and NOT interchangeable. Mixed installation of modified and previous design nozzle holders is acceptable within the same engine.

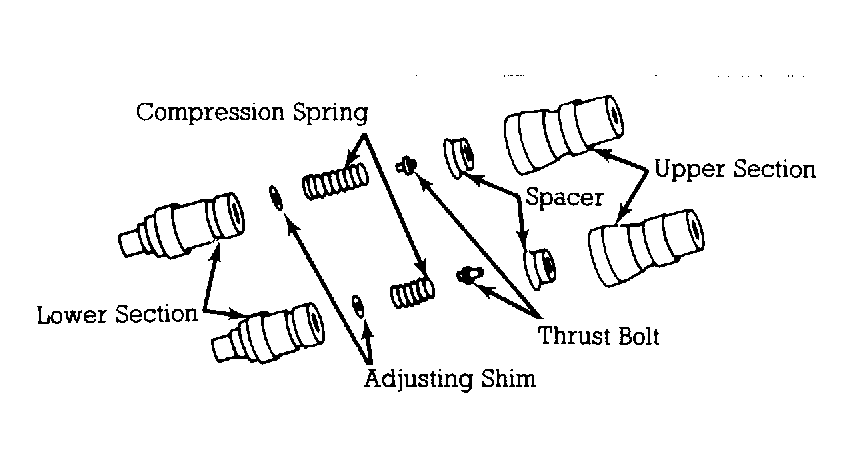

Fig 1: Modified & Previous Design Pintle Nozzle Holder
