Wiring Diagrams: Wiring Diagram

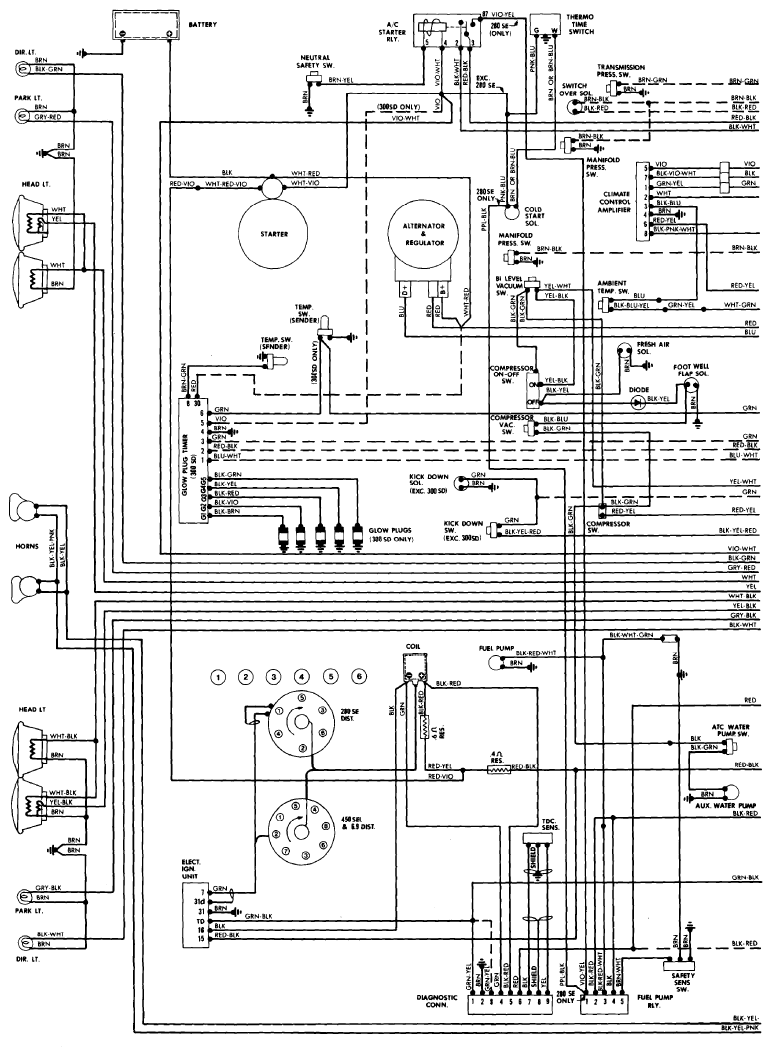

Fig 1: Wiring Diagram - 280SE, 300SD, 450SEL & 6.9 (1 of 4)
G09303782Courtesy of MERCEDES-BENZ USA
Fig 2: Wiring Diagram - 280SE, 300SD, 450SEL & 6.9 (2 of 4)
G09303783Courtesy of MERCEDES-BENZ USA

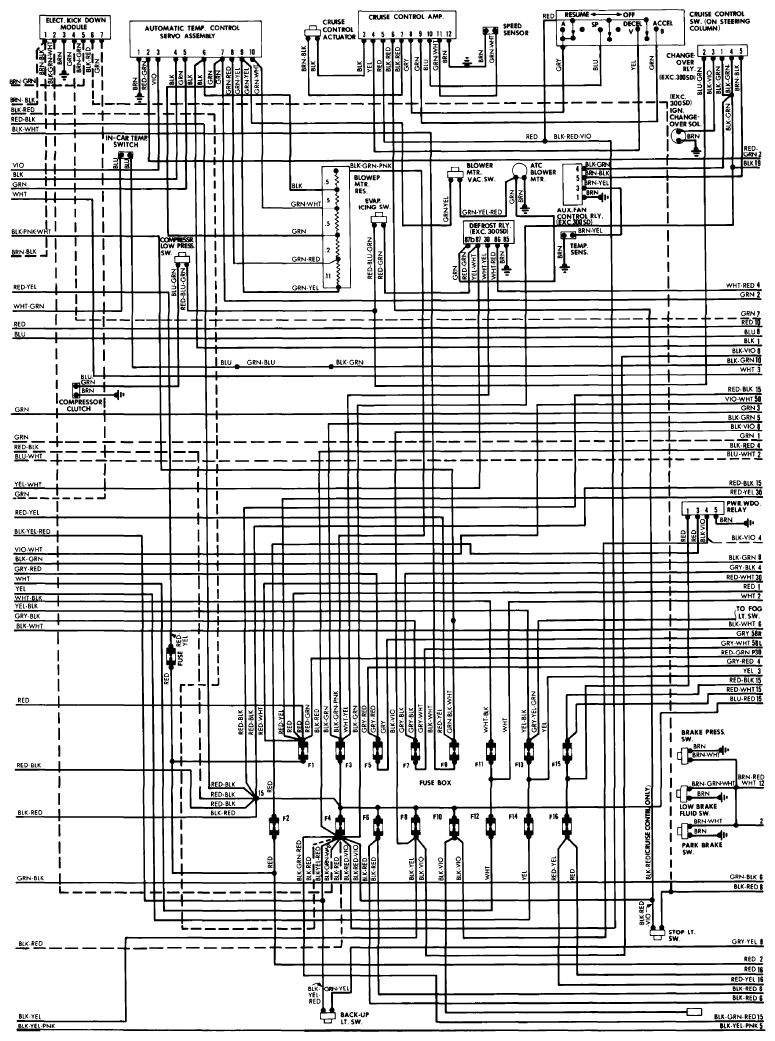

Fig 3: Wiring Diagram - 280SE, 300SD, 450SEL & 6.9 (3 of 4)
G09303784Courtesy of MERCEDES-BENZ USA

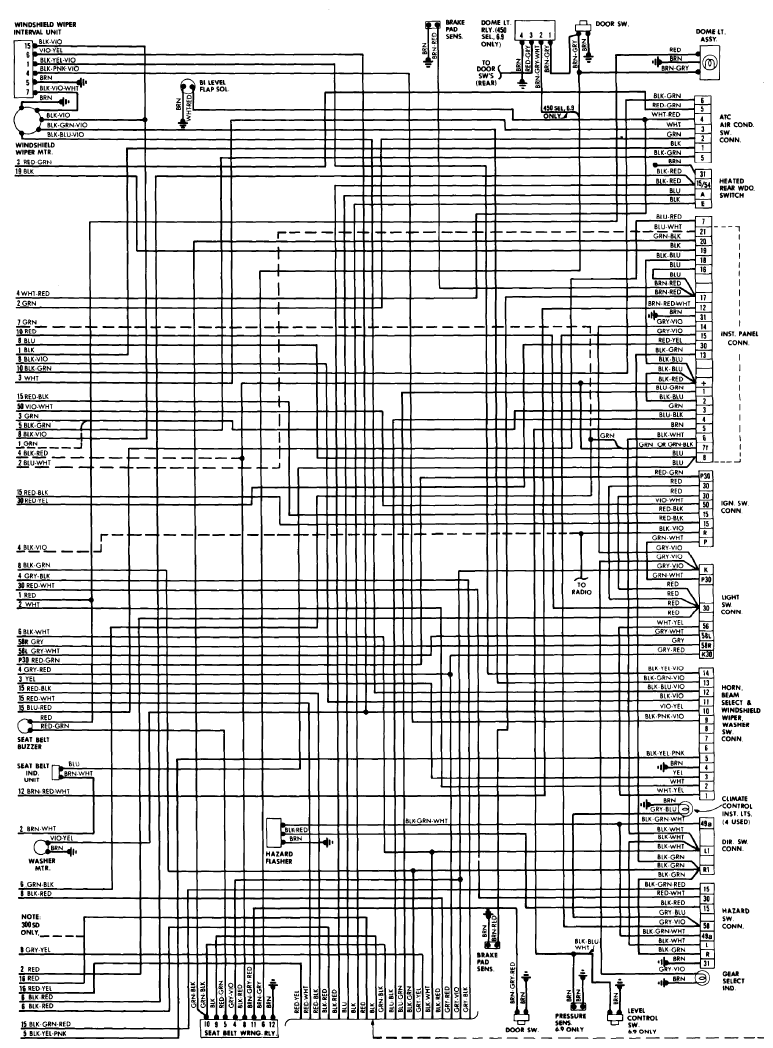

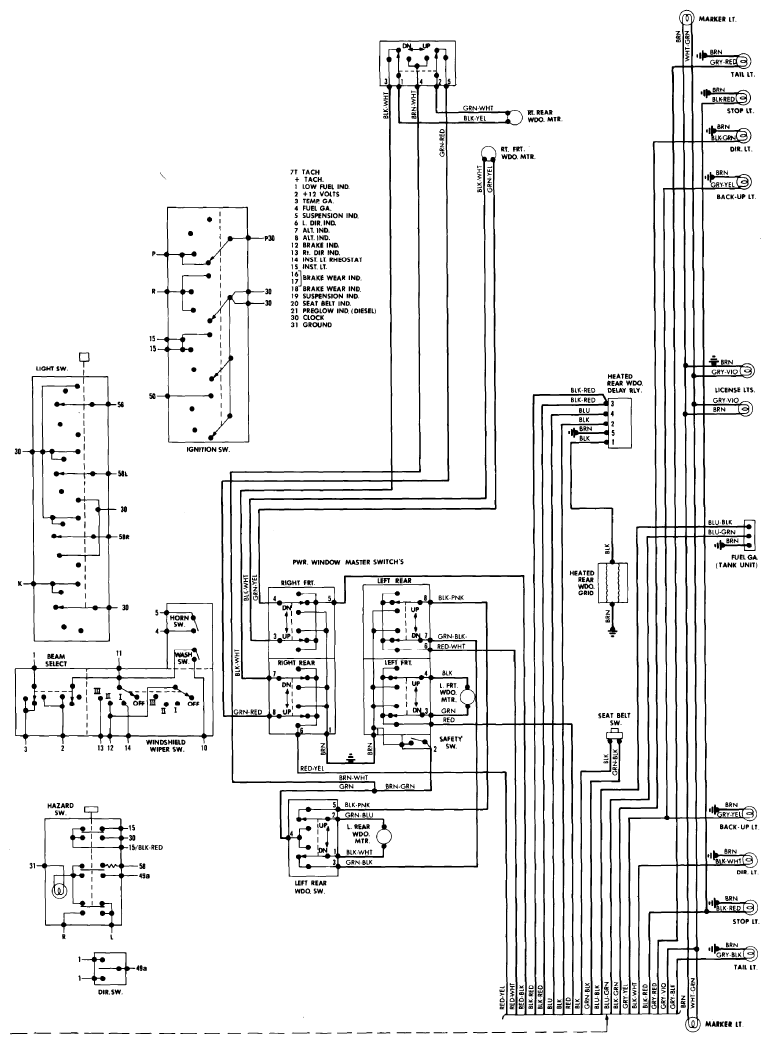

Fig 4: Wiring Diagram - 280SE, 300SD, 450SEL & 6.9 (4 of 4)
G09303785Courtesy of MERCEDES-BENZ USA
