Wiring Diagrams: Wiring Diagram

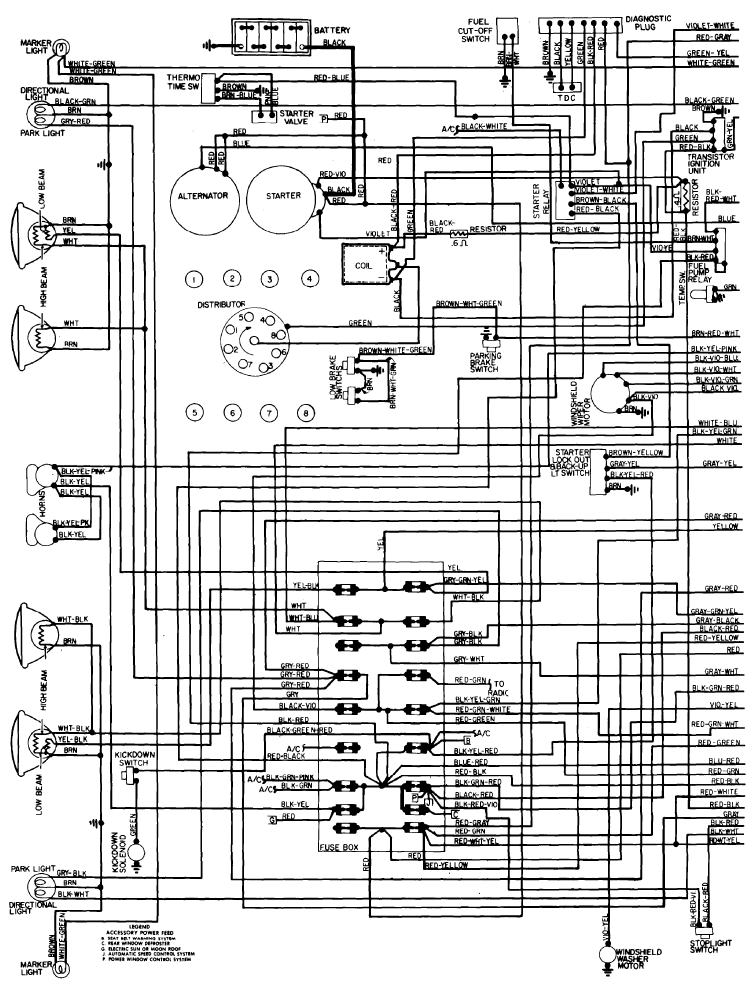

Fig 1: Wiring Diagram - 450 SL & 450SLC (1 of 2)

G09303551

Courtesy of MERCEDES-BENZ USA

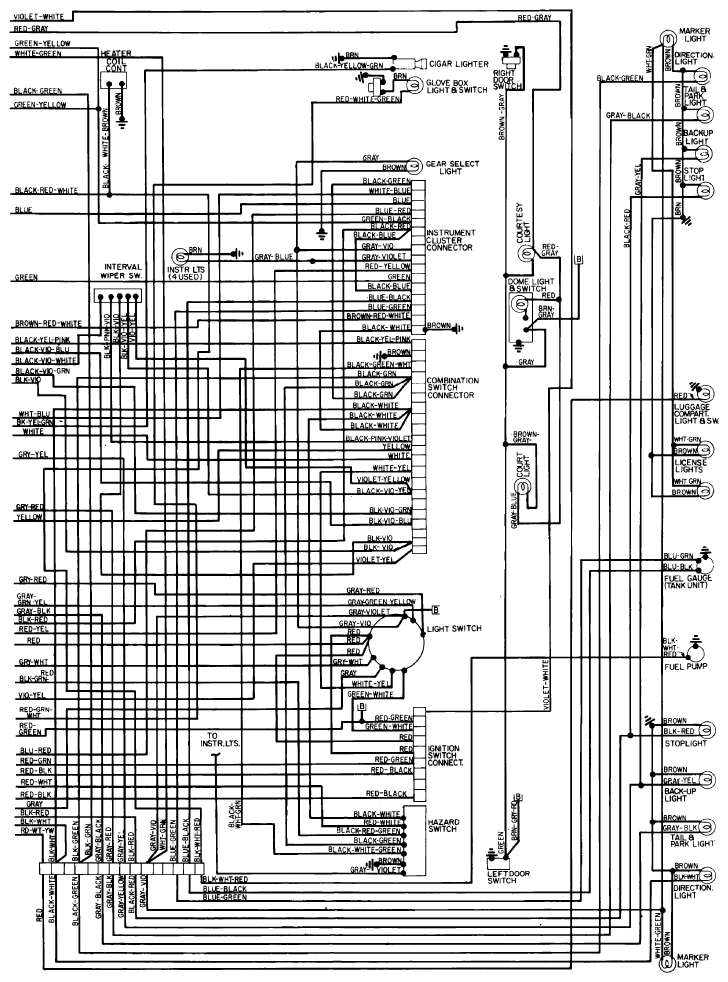

Fig 2: Wiring Diagram - 450 SL & 450SLC (2 of 2)

G09303552

Courtesy of MERCEDES-BENZ USA
