1974-76 Models

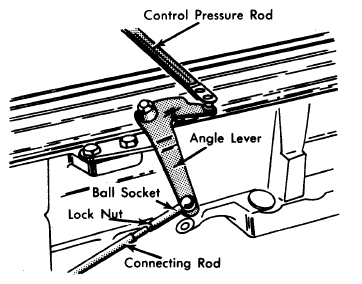

- With engine idling, disconnect control pressure rod from automatic transmission and push slide rod together. Push angle lever toward rear. See Fig 1. Push control pressure rod toward rear, against stop and attach ball socket. Adjust if necessary.
- Basic adjustment of control rod and connecting rod is determined by length in relation to angle lever. Control rod length should be 4.72" (120 mm) long, measured from center of ball sockets. Connecting rod length should be 12.17" (310 mm) long.
Courtesy of MERCEDES-BENZ USA
