MERCEDES-BENZ Thermostatic Air Cleaner: Adjustments

Screw thermostat into plastic fastening nut until distance from mount to end of threads is 11/32 in. (8.73 mm).

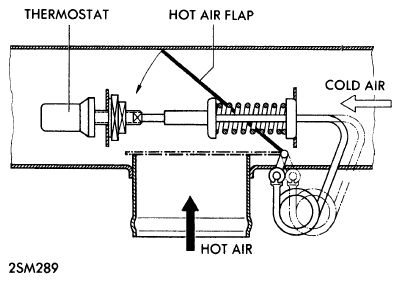

Fig 1: TEMPERATURE CONTROL VALVE

Courtesy of MERCEDES-BENZ USA
