Steering Wheel: Installation

To install steering wheel reverse removal procedure. After installing, make test run and check position of steering wheel. Wheel should be centered in straight ahead position, if not check wheel toe in. After checking toe in, if wheel still not centered, steering wheel can be moved on its splined shaft a maximum of two splines.

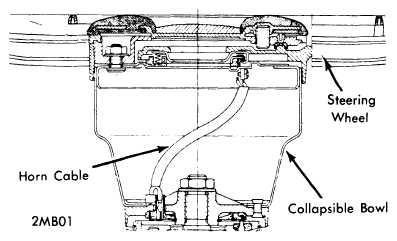

Fig 1: Steering Wheel & Collapsible Bowl
G09345806Courtesy of MERCEDES-BENZ USA
