Connector connection note

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

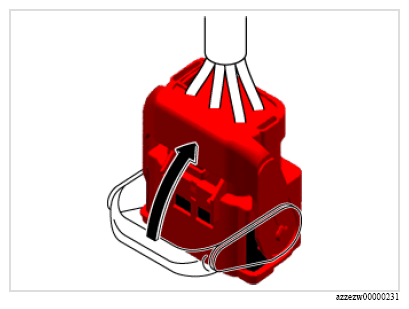

  1. Connect the connector as shown in the figure below.
G16717759Courtesy of MAZDA MOTORS CORP.
