Remove 150 W Power Supply Unit: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

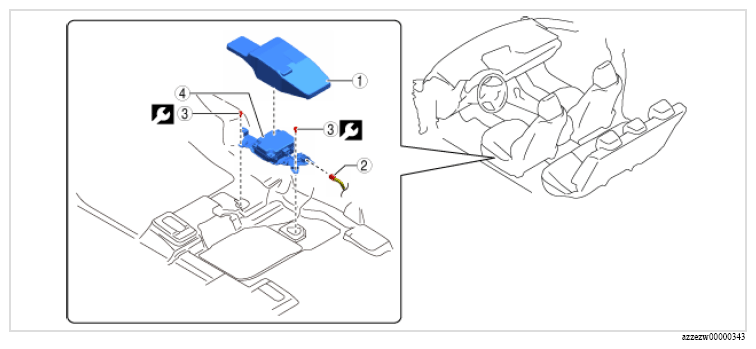

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Cover (See Cover removal note ) |
- |
| 2 | Connector | - |
| 3 | Bolt | 11 N.m {110 kgf.cm, 95 in.lb} |
| 4 | 150 W power supply unit | - |
