Cable Outer End (Transaxle Side) Installation Note

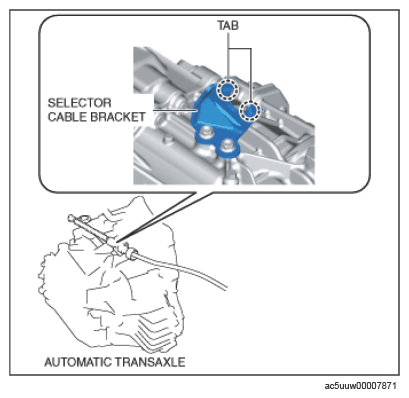

1. Verify that the selector cable bracket tabs are not deformed.

   Courtesy of MAZDA MOTORS CORP.

   • If the selector cable bracket tabs are deformed, replace them with new ones. (See (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)

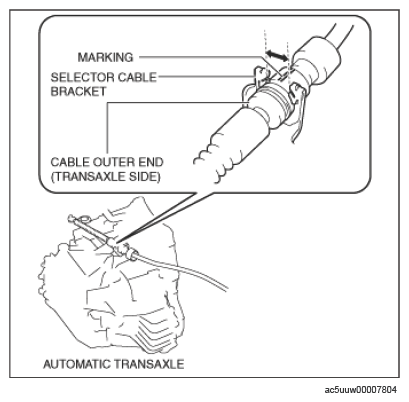

2. Assemble the cable outer end (transaxle side) to the selector cable bracket so that the marking is in the area of the arrow shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
