Electronic AWD Control System Location Index

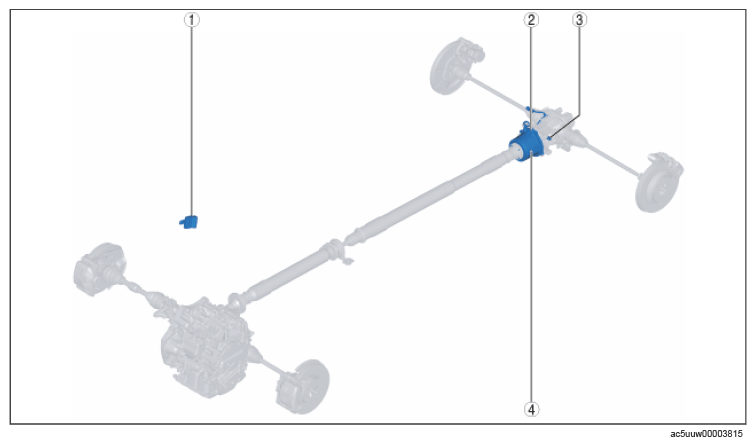

Fig 1: Electronic AWD Control System Components Location

Courtesy of MAZDA MOTORS CORP.

1	AWD control module (See AWD CONTROL MODULE INSPECTION .) (See AWD CONTROL MODULE REMOVAL/INSTALLATION .) (See AWD CONTROL MODULE CONFIGURATION .)
2	AWD solenoid (See AWD SOLENOID INSPECTION .)
3	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
4	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
