Intermediate Shaft Installation Note

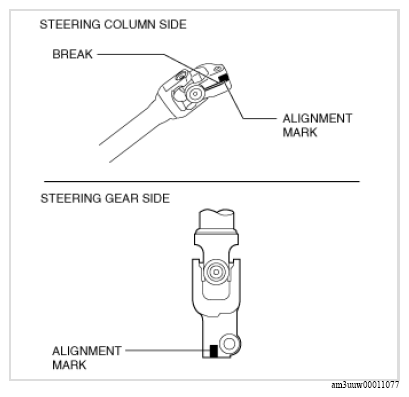

Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- When newly replacing the intermediate shaft, place alignment marks on the new part in the same position as the removed intermediate shaft.
Courtesy of MAZDA MOTORS CORP.
Install in the order of joint bolt B and joint bolt A.

Courtesy of MAZDA MOTORS CORP.
Verify that the joint bolt B flange is seated in the specified position.

Fig 1: Intermediate Shaft Joint Bolt B With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Verify that joint bolt A is installed to the groove of the steering gear (pinion).

Fig 2: Intermediate Shaft Joint Bolt A With Torque Specification
Courtesy of MAZDA MOTORS CORP.
