360°View Monitor Control Module Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint.
  2. Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. Perform the following procedure.
    1. Switch the ignition off.
    2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  5. Remove the front seat (LH). (See FRONT SEAT REMOVAL/INSTALLATION .)

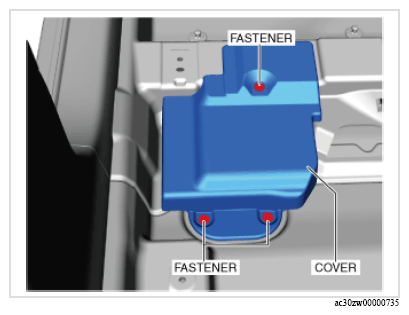

  6. Remove the fasteners.
    G16377444Courtesy of MAZDA MOTORS CORP.
  7. Remove the cover.
  8. Remove the bolts.

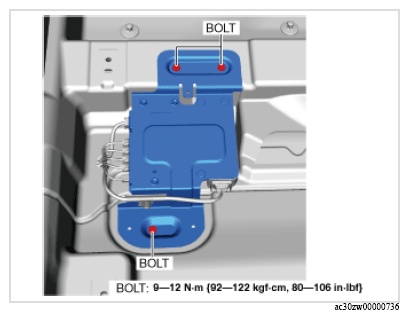

    Fig 1: 360°View Monitor Control Module Component Bolts With Torque Specification
    G16377445Courtesy of MAZDA MOTORS CORP.

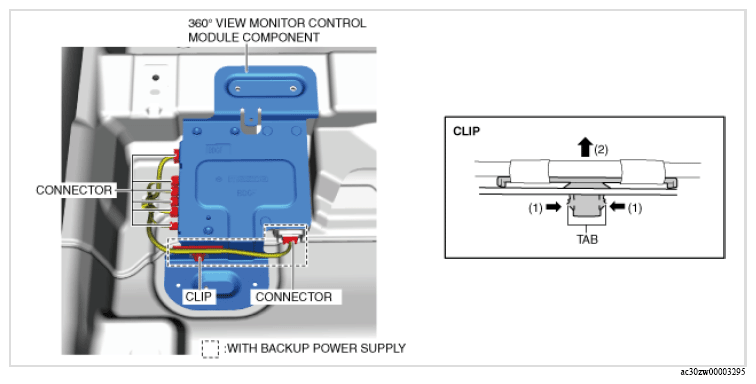

  9. Disconnect the connectors.
    G16377446Courtesy of MAZDA MOTORS CORP.
  10. Remove the clip. (with backup power supply)
  11. Remove the 360° view monitor control module component.
  12. Remove the bolts.

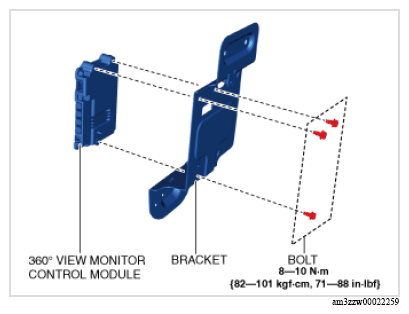

    Fig 2: 360°View Monitor Control Module And Bracket Bolts With Torque Specification
    G16377447Courtesy of MAZDA MOTORS CORP.
  13. Remove the bracket.
  14. Remove the 360° view monitor control module.
  15. Install in the reverse order of removal.
  16. If the 360° view monitor control module is replaced, perform the following procedure.
    1. Switch the ignition ON (engine off) and wait for 5 s or more to complete the global central configuration (GCC) for the 360° view monitor control module.
    2. Switch the ignition OFF and wait for 5 s or more.
    3. Switch the ignition ON (engine off) again and wait for 5 s or more.
    4. Clear the DTC. (Refer to CLEARING DTC .) )
    5. Perform the 360° view monitor system aiming. (See 360°VIEW MONITOR SYSTEM AIMING .)
