Center Accessory Socket Inspection
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .).

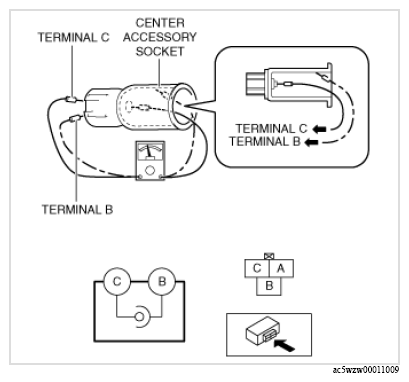

- Connect the tester probe to the position shown in the figure and verify that there is continuity.
- If it cannot be verified, replace the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
