Current Sensor Removal

CAUTION:
  • If the nut for the current sensor is loosened with the negative battery terminal connected to the battery, excessive torque will be applied to the negative battery terminal and the battery terminal will be damaged. When removing the negative battery terminal and current sensor, be careful not to damage the battery terminal.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Disconnect the current sensor connector.

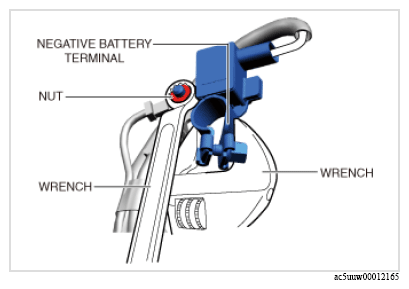

  3. Loosen the current sensor nut while fixing the negative battery terminal using a wrench.
    Fig 1: Current Sensor Nut With Torque Specification
    G16328204Courtesy of MAZDA MOTORS CORP.

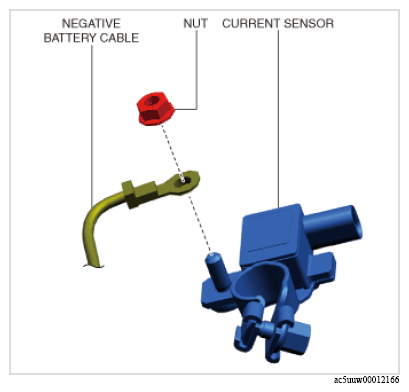

  4. Remove the current sensor.
G16328205Courtesy of MAZDA MOTORS CORP.
