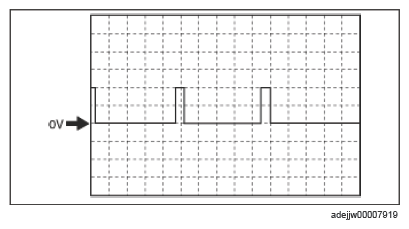

Electric variable valve timing control signal

G15630440

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1BV+)-body ground (-)

Oscilloscope setting

2 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

Idle after warm up
