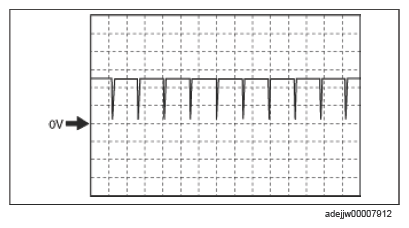

Wave Pattern (Reference)

G15630350

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
