Rearview Mirror Removal/Installation

  1. Remove the sensor cover. (with sensor cover) (See SENSOR COVER REMOVAL/INSTALLATION .)
  2. Loosen the screw.

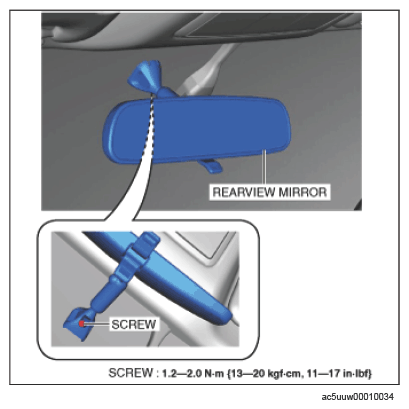

    Fig 1: Rearview Mirror And Screw With Torque Specification
    G15641972Courtesy of MAZDA MOTORS CORP.

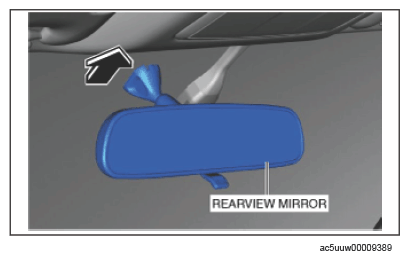

  3. Pull the rearview mirror in the direction of the arrow shown in the figure below.
    G15641973Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
