Power Window SUBSWITCH Removal/Installation: Rear

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

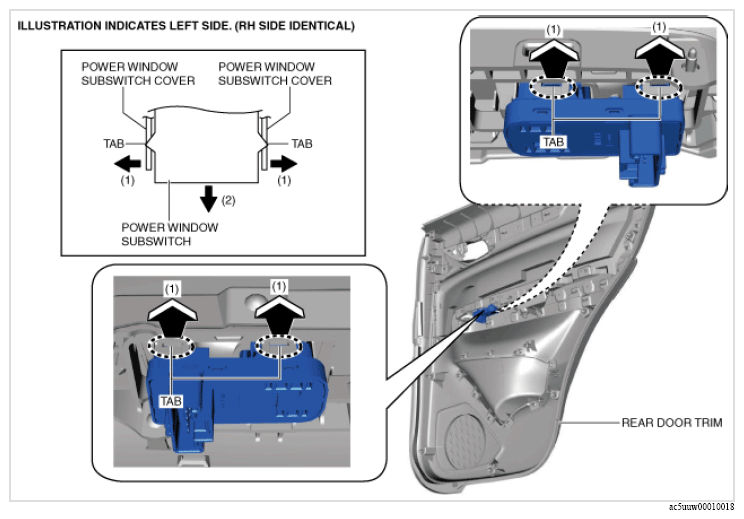

  3. Move the power window subswitch cover end in the directions of arrows (1) shown in the figure below using a remover tool, and detach the tabs from the power window subswitch cover.
    G13114260Courtesy of MAZDA MOTORS CORP.
  4. Remove the power window subswitch in the direction of arrow (2) shown in the figure below.
  5. Install in the reverse order of removal.
