Outer Mirror Glass Removal

NOTE:

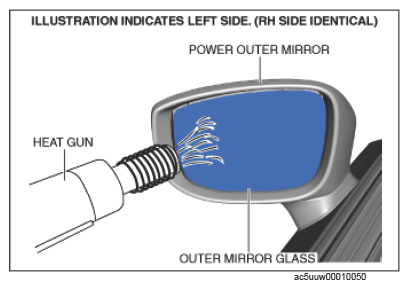

  • Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60°C {108°F} using a heat gun.
CAUTION:
  • Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} could deform it.
G15641904Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

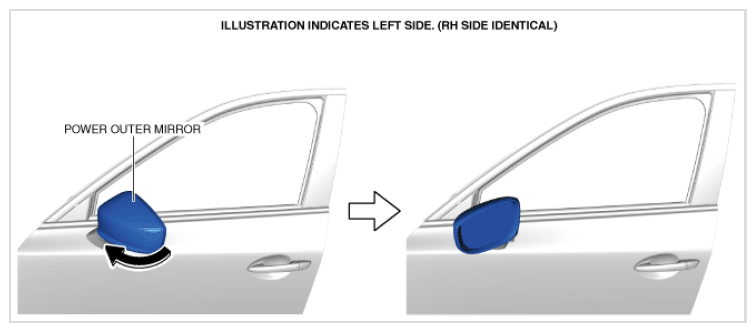

  2. To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure below.
    G16333022Courtesy of MAZDA MOTORS CORP.

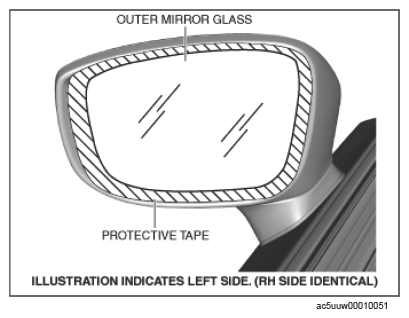

  3. To prevent scratches or damage, apply protective tape to the positions shown in the figure below.
    G15641906Courtesy of MAZDA MOTORS CORP.

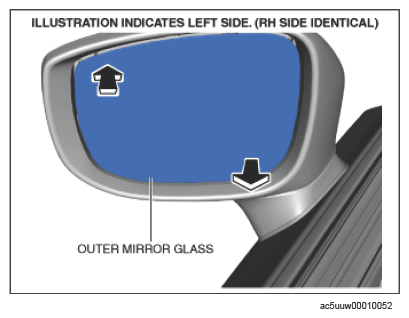

  4. Move the outer mirror glass in the directions of the arrows shown in the figure below to secure a space for inserting your fingers.
    G15641907Courtesy of MAZDA MOTORS CORP.

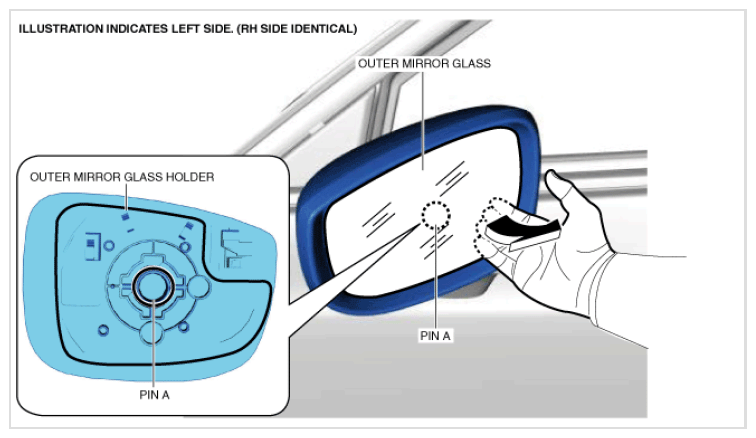

  5. Insert your fingers into the area shown in the figure below, and move the outer mirror glass in the direction of the arrow to detach pin A.
    CAUTION:
    • When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.
    G16333025Courtesy of MAZDA MOTORS CORP.

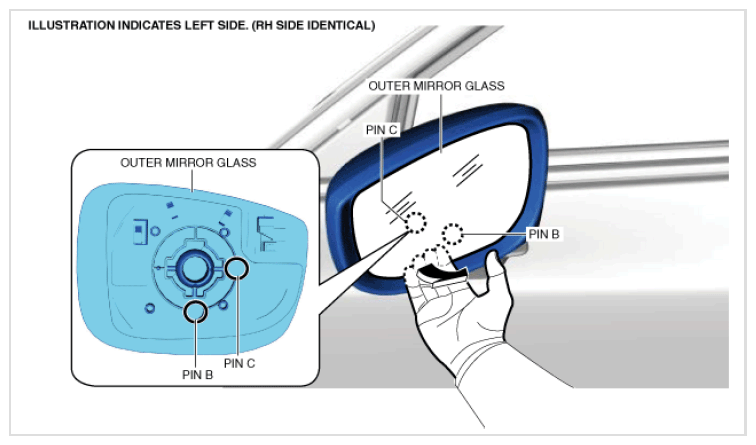

  6. Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins B and C.
    G16333026Courtesy of MAZDA MOTORS CORP.

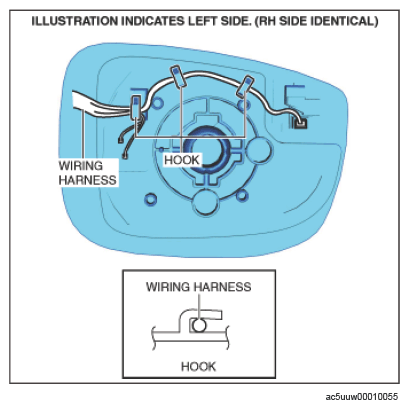

  7. Remove the wiring harness from the hooks.
    G15641910Courtesy of MAZDA MOTORS CORP.

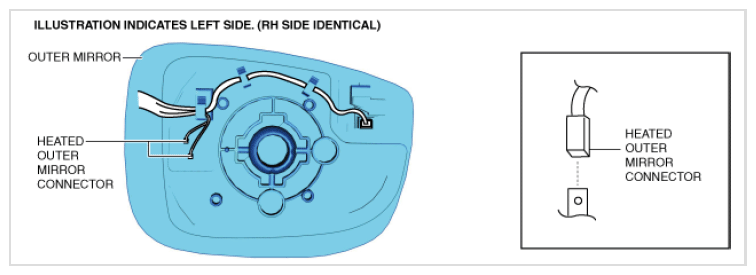

  8. Disconnect the heated outer mirror connectors. (with heated outer mirror)
    G16333028Courtesy of MAZDA MOTORS CORP.

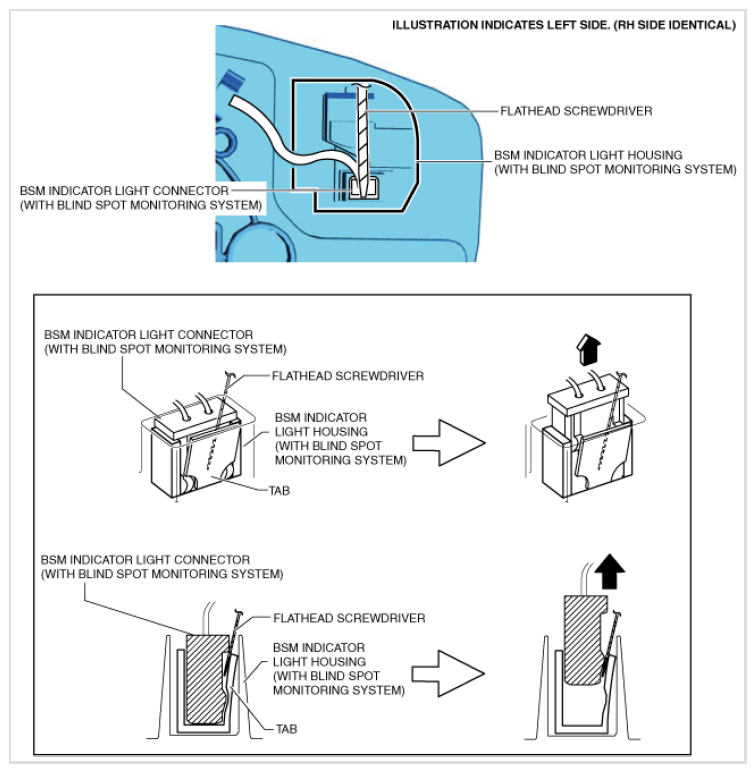

  9. Insert a small, tape-wrapped flathead screwdriver as shown in the figure below and disconnect the blind spot monitoring (BSM) indicator light connector. (with blind spot monitoring (BSM) system)
    CAUTION:
    • Remove the blind spot monitoring (BSM) indicator light connector being careful not to pry the blind spot monitoring (BSM) indicator light housing after inserting a tape-wrapped flathead screwdriver. If the blind spot monitoring (BSM) indicator light connector and the housing are damaged or deformed, poor contact of the connector may occur, causing the indicator light not to turn on.
    G16333029Courtesy of MAZDA MOTORS CORP.
  10. Remove the outer mirror glass holder and the outer mirror glass as a single unit.
