Front Power Window Motor Inspection: Passenger-Side

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the front door trim. (Passenger-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Disconnect the front power window motor connector.

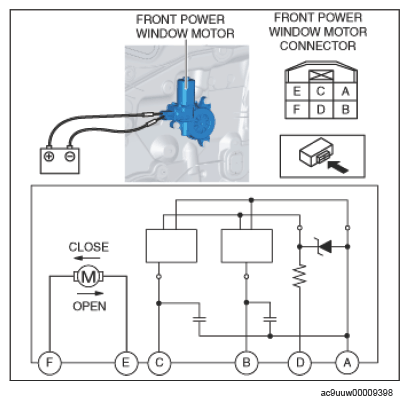

4. Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.

   B+ Terminal	Ground Terminal	Operation
   E	F	Close
   F	E	Open

   Courtesy of MAZDA MOTORS CORP.

   • If the front power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
5. Connect the front power window motor connector.
6. Connect the power window sub switch connector. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
7. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

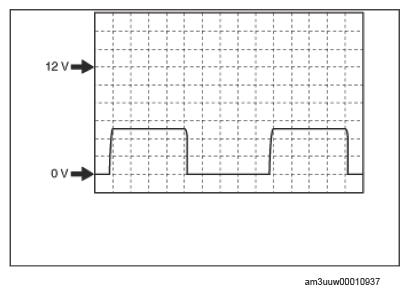

8. Operate the front power window motor and verify the wave patterns for terminals B and C.

Courtesy of MAZDA MOTORS CORP.

• Terminal: B (+), C (+) ↔ ground (-)
• Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
• If the malfunction, replace the front power window motor. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
