Without Sensor Cover

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Slide the cover in the direction of the arrow shown in the figure below.
    G13114191Courtesy of MAZDA MOTORS CORP.

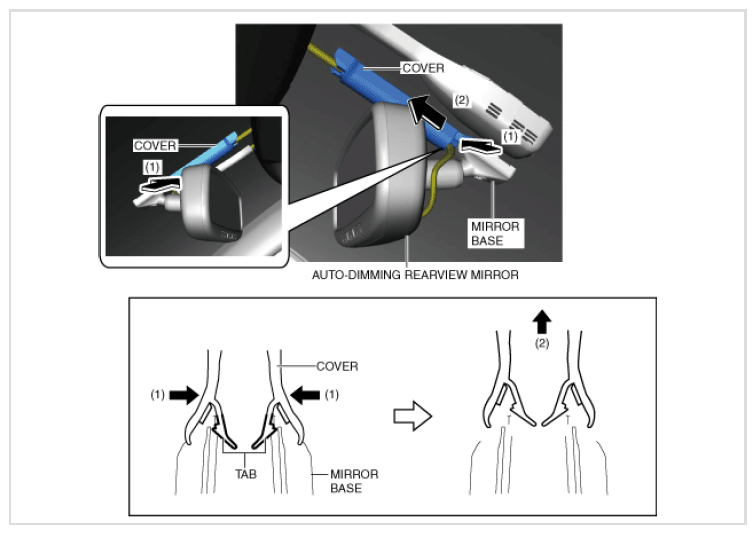

  3. Detach tabs while push the cover in the direction of the arrow (1) shown in the figure below, then remove the cover in the direction of the arrow (2).
    G16332982Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the auto-dimming rearview mirror connector.
    G13114193Courtesy of MAZDA MOTORS CORP.
  5. Loosen the screw.
    Fig 1: Auto-Dimming Rearview Mirror And Screw With Torque Specification
    G13114194Courtesy of MAZDA MOTORS CORP.
  6. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure below.
    G13114195Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
