Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

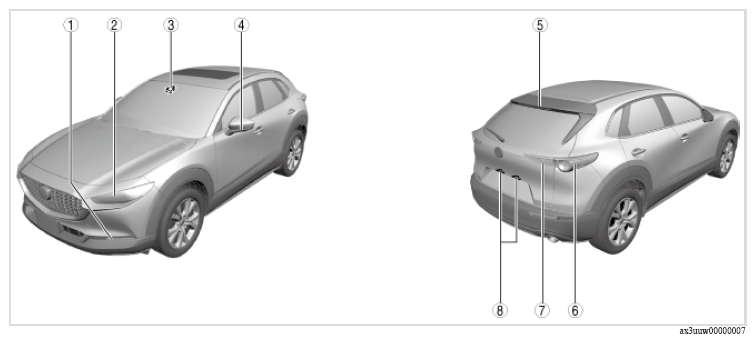

Fig 1: Lighting Systems Components Location - Exterior

Courtesy of MAZDA MOTORS CORP.

LIGHTING SYSTEMS COMPONENT OPERATION

Component No.	Refer to
1	Front turn light/parking light (See FRONT TURN LIGHT/PARKING LIGHT REMOVAL/INSTALLATION .) (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)
2	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
3	Auto light sensor (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .)
4	Side turn light (with side turn light) (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .)
5	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
7	Liftgate light (See TAILLIGHT BULB REMOVAL/INSTALLATION .) (See LIFTGATE LIGHT REMOVAL/INSTALLATION .)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION .)
