License Plate Light Inspection
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the license plate light. (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .)

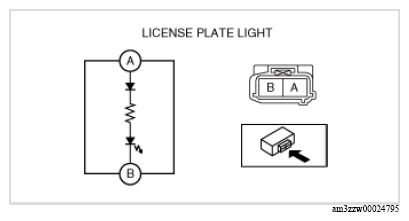

- Apply battery voltage to license plate light terminal A, and connect terminal B to ground.
- Verify that the license plate light illuminates.
- If the license plate light does not illuminate, replace the license plate light. (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .)
