Front Turn Light/Parking Light Removal/Installation: LH

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)

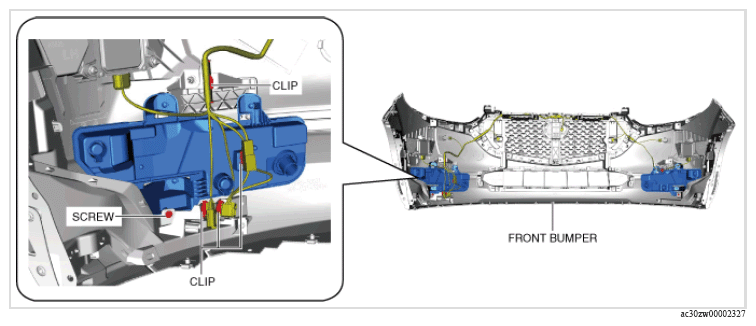

  3. Remove the screw.
    G16377039Courtesy of MAZDA MOTORS CORP.
  4. Detach the clips.

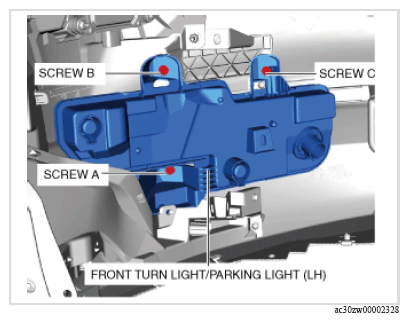

  5. Remove screw A.
    G16377040Courtesy of MAZDA MOTORS CORP.
  6. Remove screw B.
  7. Remove screw C.
  8. Remove the front turn light/parking light.
  9. Install in the reverse order of removal.
  10. Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
  11. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  12. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
