Android Auto™

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Android Auto™ can be used with an Android™ connected to either USB port.

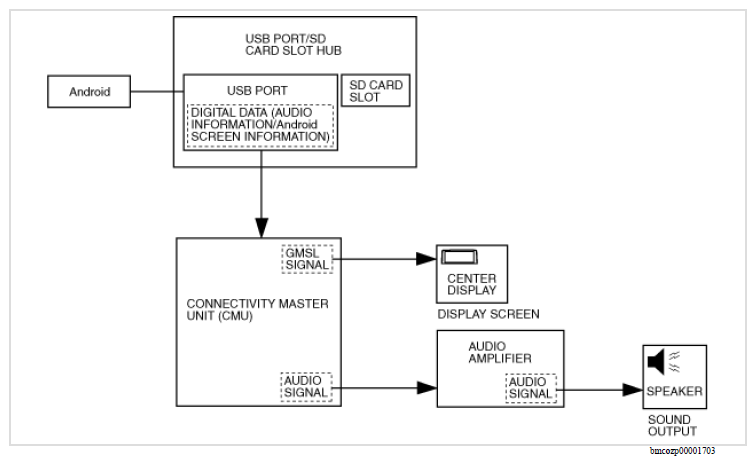

The USB port/SD card slot hub sends the digital data (audio information/Android™ screen information) of the Android™ connected to the USB port to the connectivity master unit (CMU).
NOTE:
- Android Auto™ also provides wireless connectivity.
  - For the pairing operation with a wireless connection, refer to [BLUETOOTH ® PAIRING ] in the [SETTING FUNCTIONS] in the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM ).
When the connectivity master unit (CMU) receives the music information, it performs the following.
- The information is converted into a GMSL signal and sent to the center display.
- The audio signal is sent to the audio amplifier.
When the center display receives the GMSL signal, it displays the music information.
When the audio amplifier receives the audio signal, it sends the audio signal to the speakers.
The speakers output the audio based on the received audio signal.
