Operation signal reception from voice recognition function (When using Alexa)
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

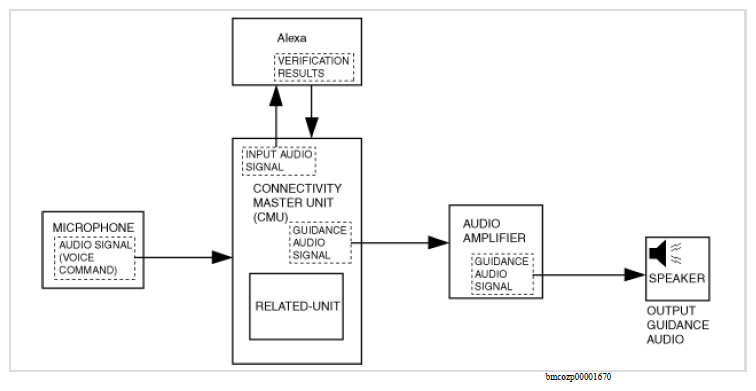

- When the following operations are performed, the voice recognition microphone sends an audio signal (voice command) to the connectivity master unit (CMU).
- Say "Alexa" with Alexa hands-free enabled
- When the connectivity master unit (CMU) detects an audio signal (voice command), it converts the voice into an input audio signal and sends it to Alexa.
- Alexa verifies the voice and input audio signal in the server and sends the verification results to the connectivity master unit (CMU).
- If the verification results match, the connectivity master unit (CMU) links with the related unit.
- The connectivity master unit (CMU) sends an audio signal to the audio amplifier when it has completed linking with the related unit.
- The audio amplifier sends the audio signal to the speakers, and then the speaker outputs the guidance audio.
