Fuel Pump Unit Removal/Installation: AWD

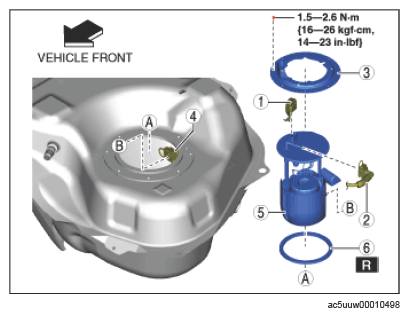

Fig 1: Fuel Pump Unit Components Location With Torque Specification - VIN Y (AWD)

Courtesy of MAZDA MOTORS CORP.

FUEL PUMP UNIT COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel pump unit connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [VIN Y] .)
3	Set plate
4	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [VIN Y] .)
5	Fuel pump unit
6	Packing
