Continuity Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the fuel pump unit connector. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [VIN Y] .)

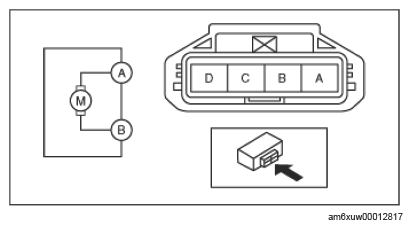

- Inspect for continuity between fuel pump unit terminals A-B.
- If there is no continuity, replace the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [VIN Y] .)
